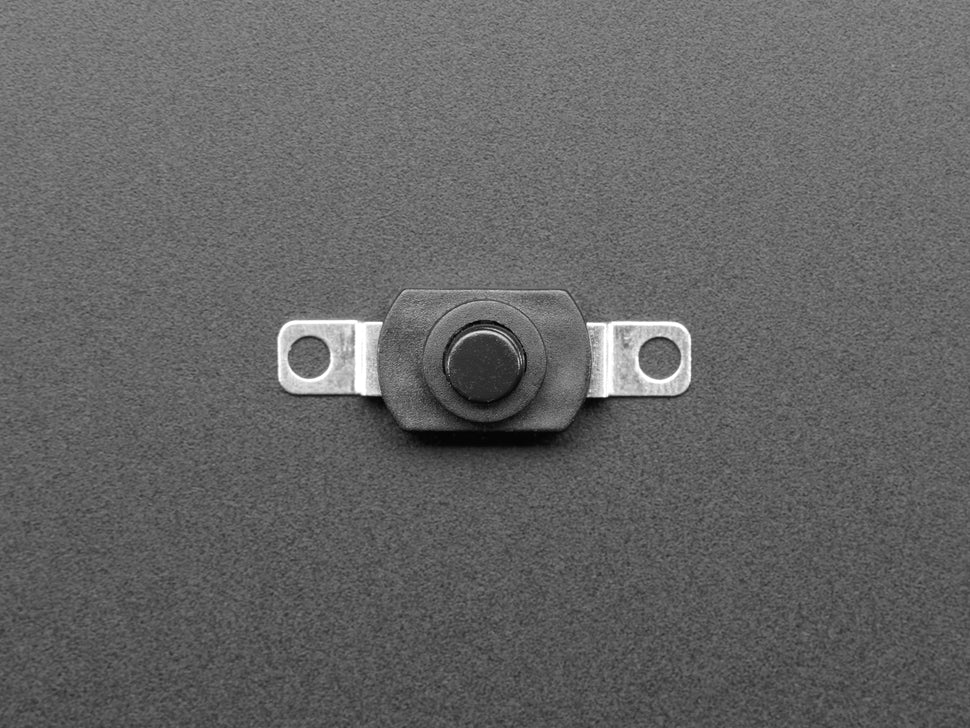

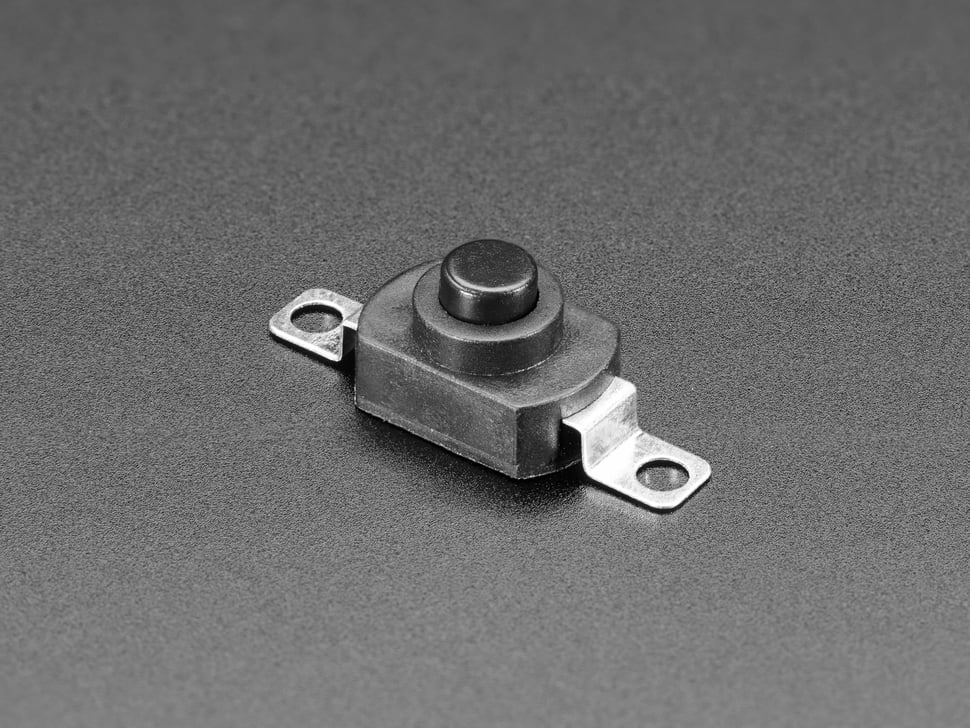

Mini On/Off Push-Button Switch

Push once to turn on, push again to turn off, push again to turn the other side on, one last push and it's off again! This clicky Mini On/Off Button switch acts as a reliable toggle switch, connecting and disconnecting the circuit.

Often referred to as 'flashlight' switches, they make excellent power switches or mode togglers for small electronics projects.

Features:

• Rated for up to 12V DC and 0.5A current
• Large flat contacts that are easy to solder or clip onto
• Contact holes to allow sewing with conductive thread, ideal for wearable projects
• Compact size suitable for small form-factor electronics

Technical Details:

• Rated Load: 12V @ 0.5A
• Contact Resistance: ≤50mΩ
• Temperature Usage Range: -25ºC to 70ºC
• Operating force: 5N to 12N

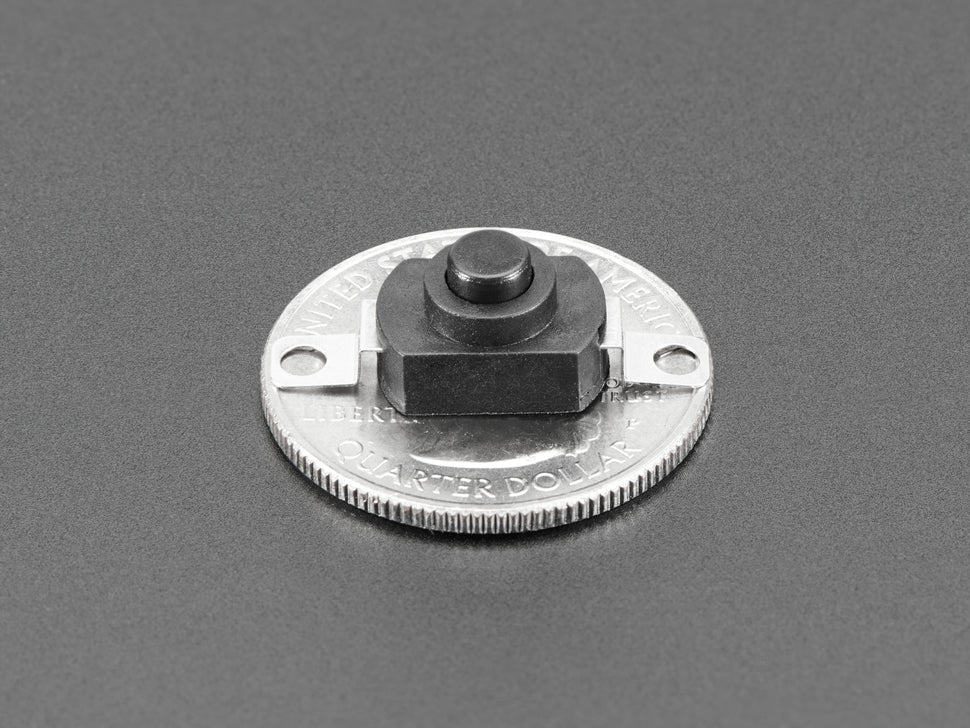

• Dimensions: 23.0mm x 8.2mm x 7.5mm (0.9" x 0.3" x 0.3")
• Weight: 0.7g
