Panel Mount 1/8" / 3.5mm TRS Audio Jack Connector

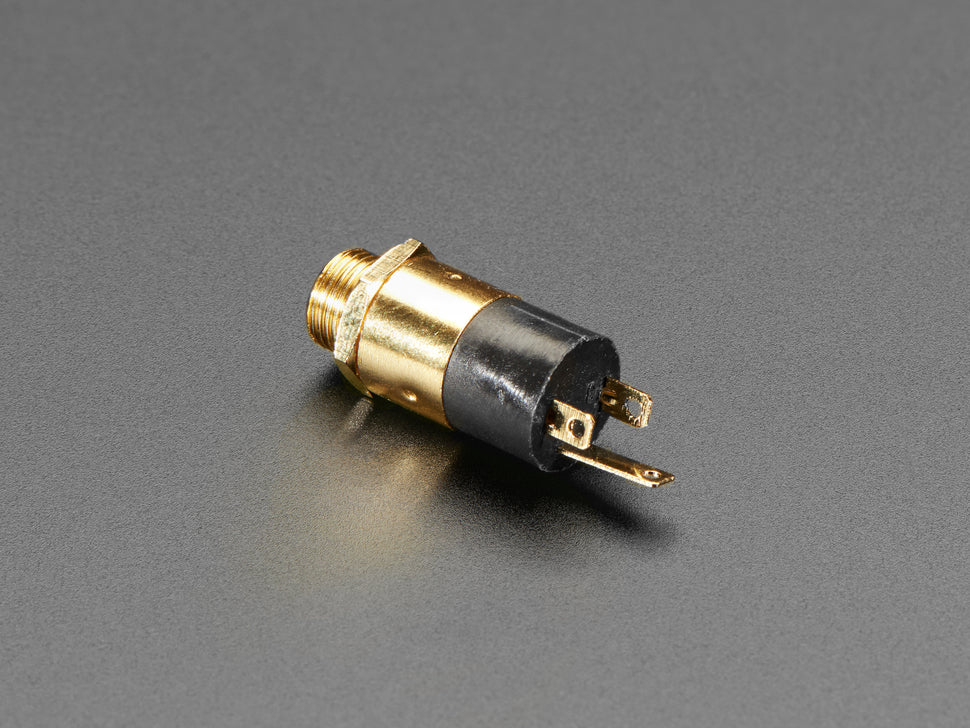

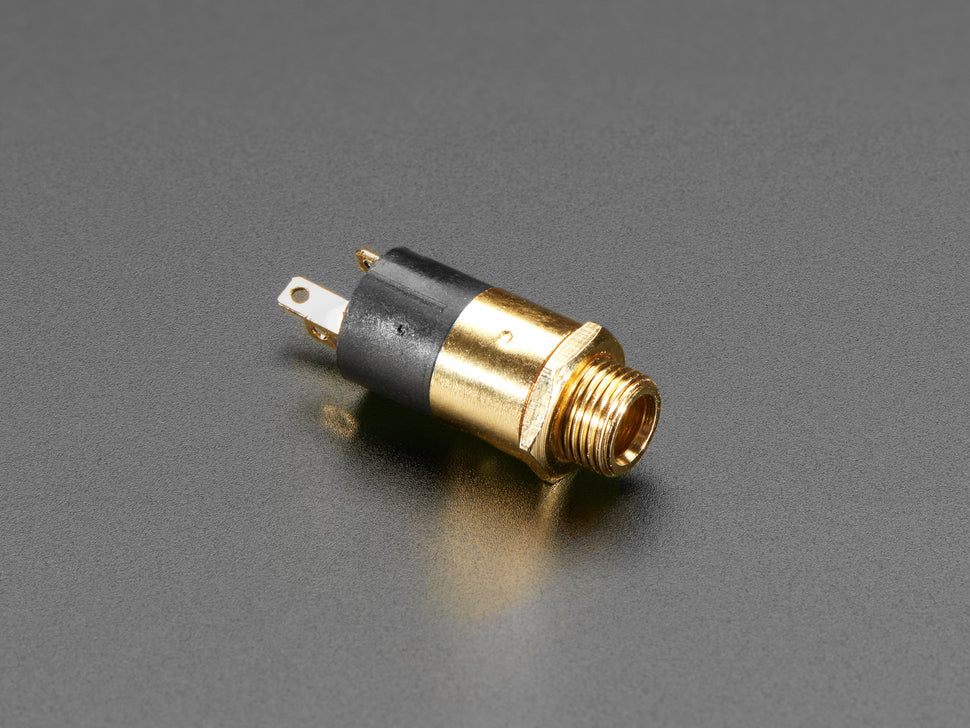

This nifty, gold-plated 1/8" (3.5mm) TRS audio jack connector is ideal for transmitting stereo audio signals, with separate contacts for left channel (tip), right channel (ring), and ground (sleeve). It is perfect for panel mounting applications, featuring a slim, gold-plated body and a hex nut for secure installation.

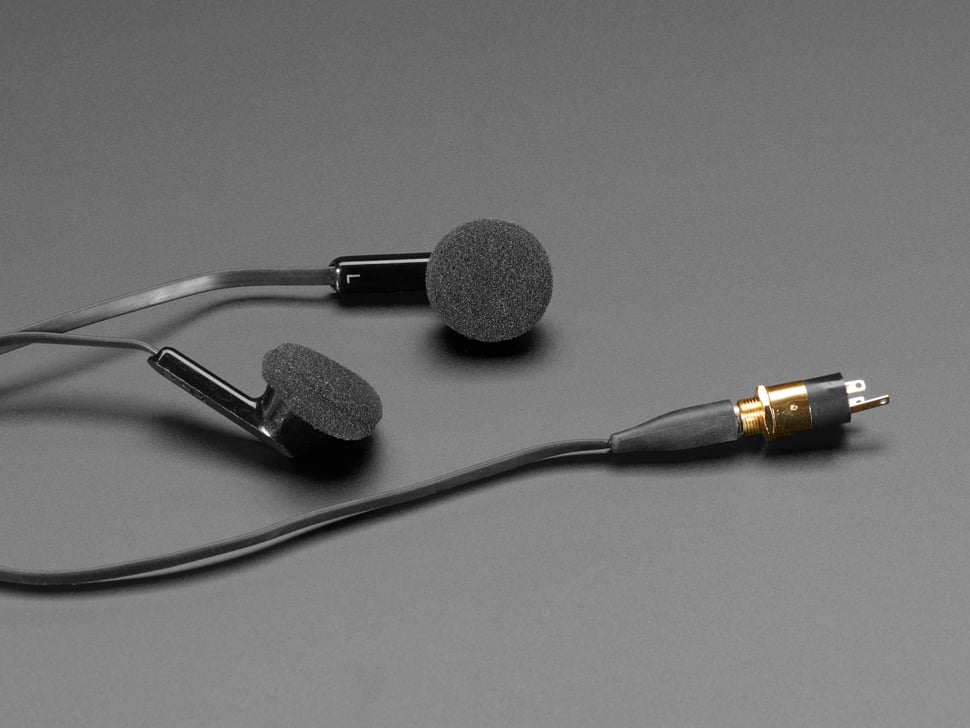

Though commonly used for audio connections such as speakers and microphones, TRS jacks also serve as versatile connectors for two or three signal lines, making them useful in various electronics and accessibility applications.

• Approximate dimensions: 7/8" long x 3/8" diameter
• Gold plated for superior connectivity

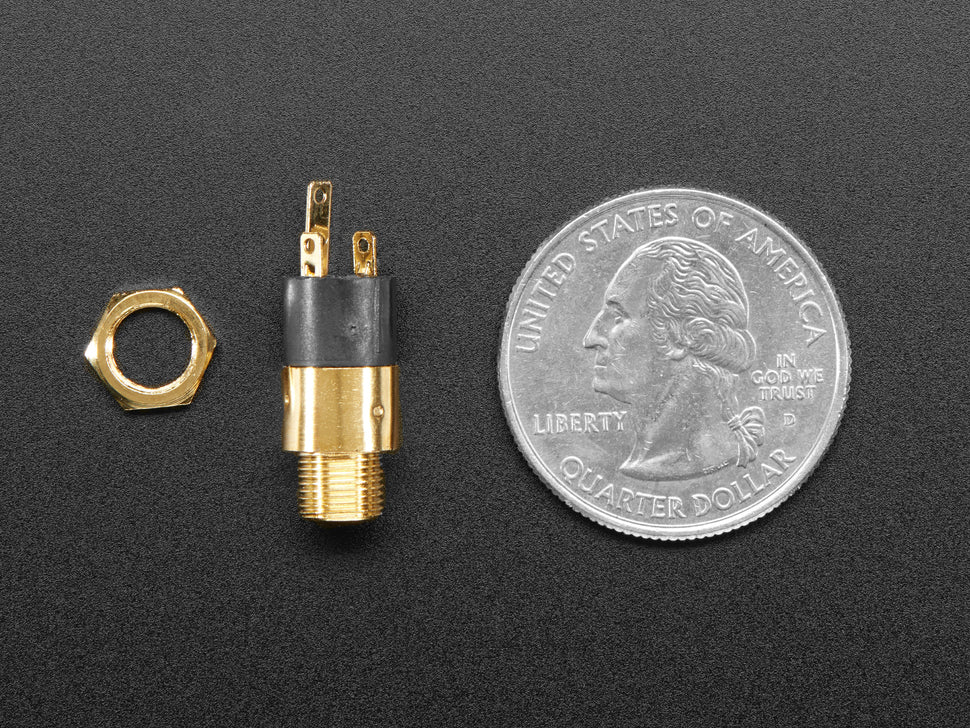

• Panel or chassis mounting with included hex nut
• Completely sealed jack, non-switching
• Mounts in a 1/4" hole in panels up to 0.075" thick
• Weight: 2.0g
