Panel Mount 100K Potentiometer (Breadboard Friendly) - 100KB

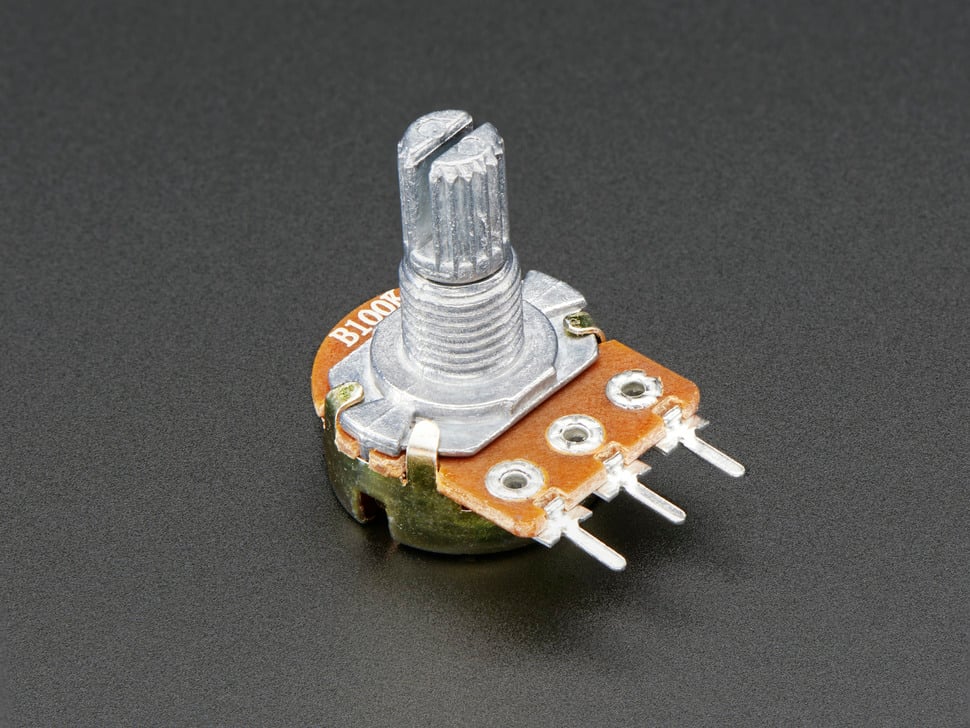

This potentiometer is a two-in-one, suitable for use in a breadboard or mounted on a panel. It is a standard linear taper 100K ohm potentiometer with a grippy shaft that is smooth and easy to turn, but firm enough to prevent accidental shifting.

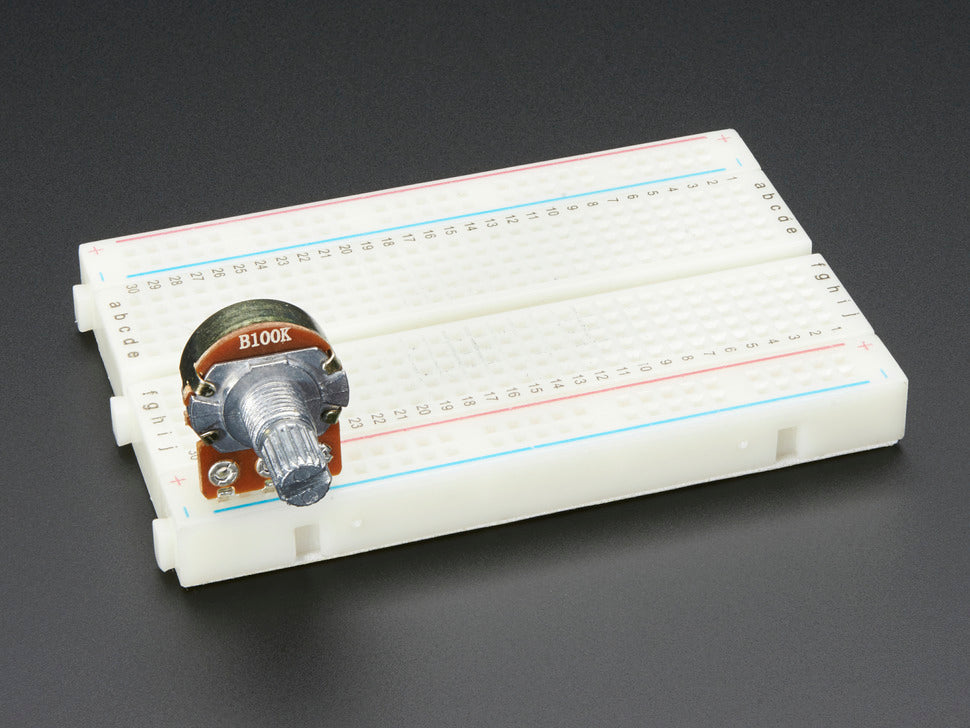

The potentiometer features legs spaced 0.2" apart with pin-points, enabling easy insertion into breadboards or perfboards. For finalized projects, it can be panel-mounted by drilling a hole in the enclosure.

• 100K ohm linear taper potentiometer
• Grippy, smooth turning shaft
• Legs spaced 0.2" apart for breadboard compatibility

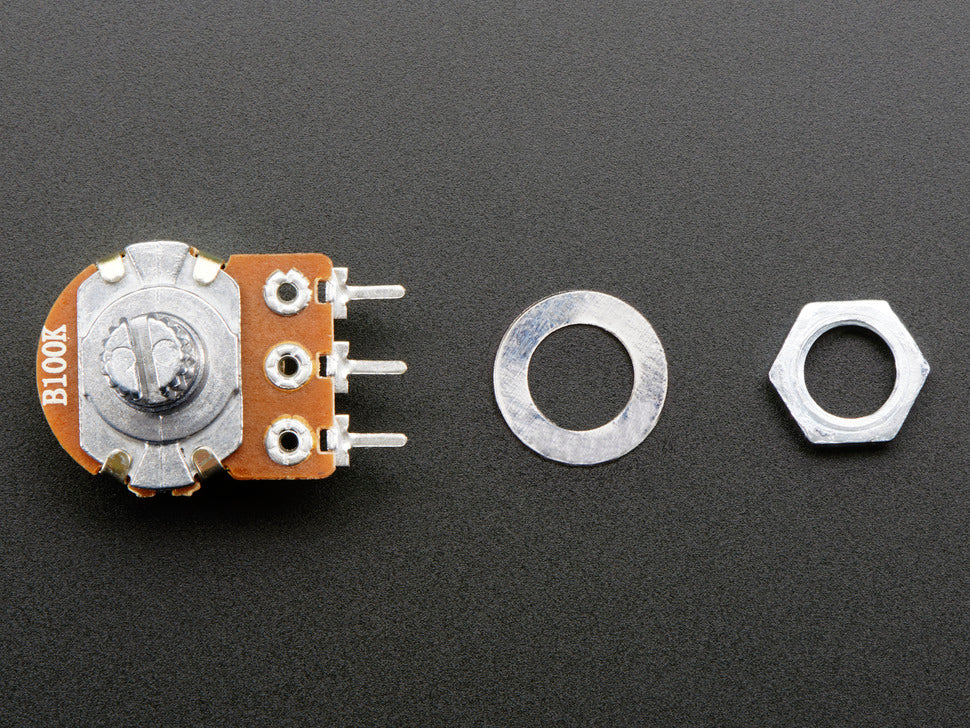

• Can be panel mounted in project boxes
• High 100,000 cycle life
• Rotational travel: 300°
• Static stop strength: 90 oz-in
• Rotational torque: 0.5 to 1.25 oz-in

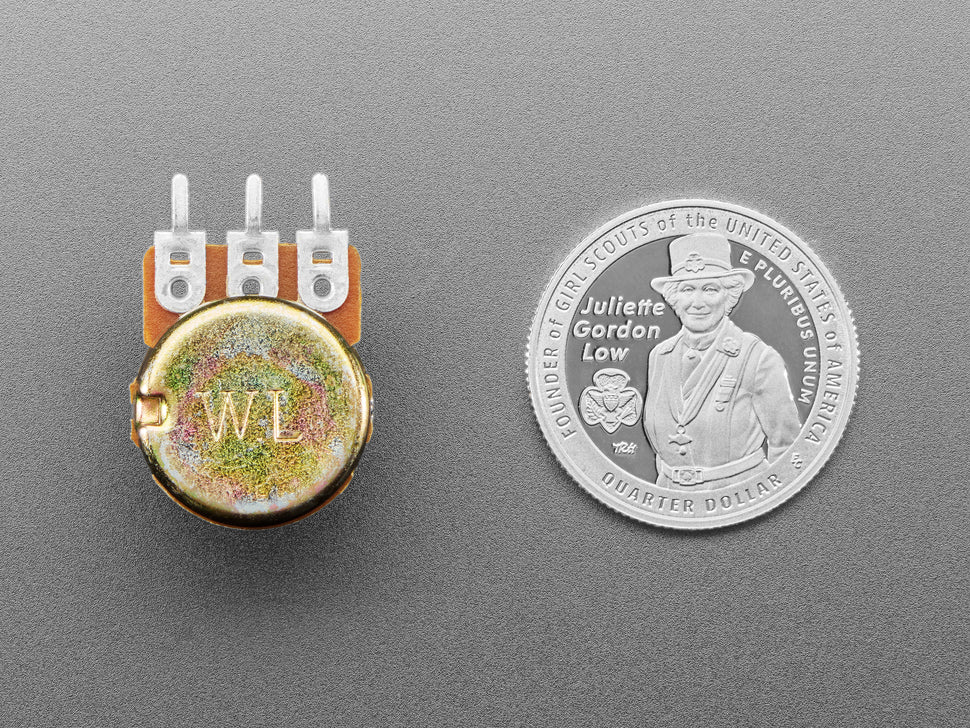

• Compact size: 16mm body diameter, 15mm shaft length

Datasheet (P160KN-0QC15B100K)
