Description

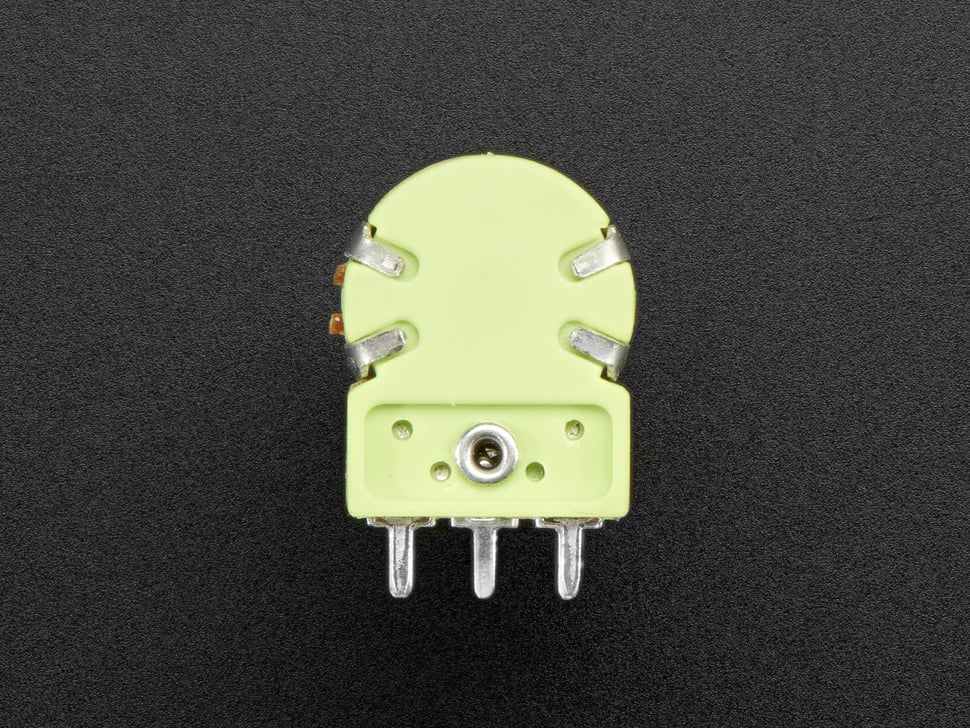

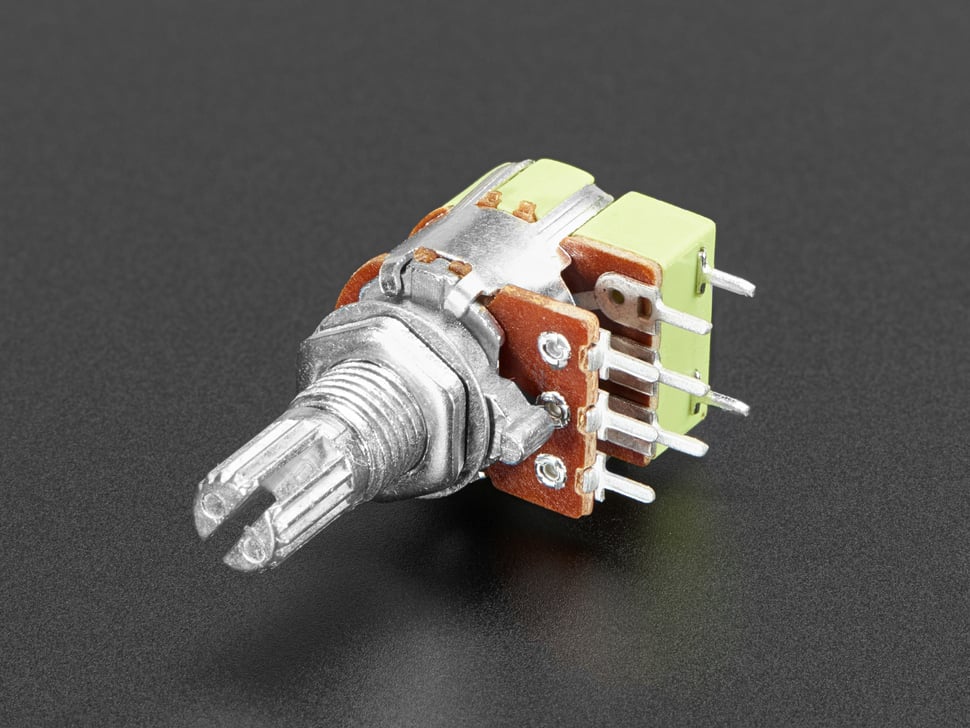

This Panel Mount 10K Dual Logarithmic Potentiometer with On-Off Switch is a two-in-one device featuring a dual-ganged potentiometer along with an integrated on-off switch.
The potentiometer half consists of a dual standard log-taper 10Kohm potentiometer with a grippy, smooth shaft that is easy to turn yet firm enough to stay in place. It includes a built-in on/off switch at the start of the shaft's rotation, making it ideal for audio projects controlling both power and volume.
Unlike linear potentiometers, this logarithmic pot changes resistance on a curve, matching the human ear's perception of volume changes, providing a natural volume control experience.
This potentiometer is not breadboard friendly due to pin spacing and layout. It is recommended to solder wires or use a custom PCB.

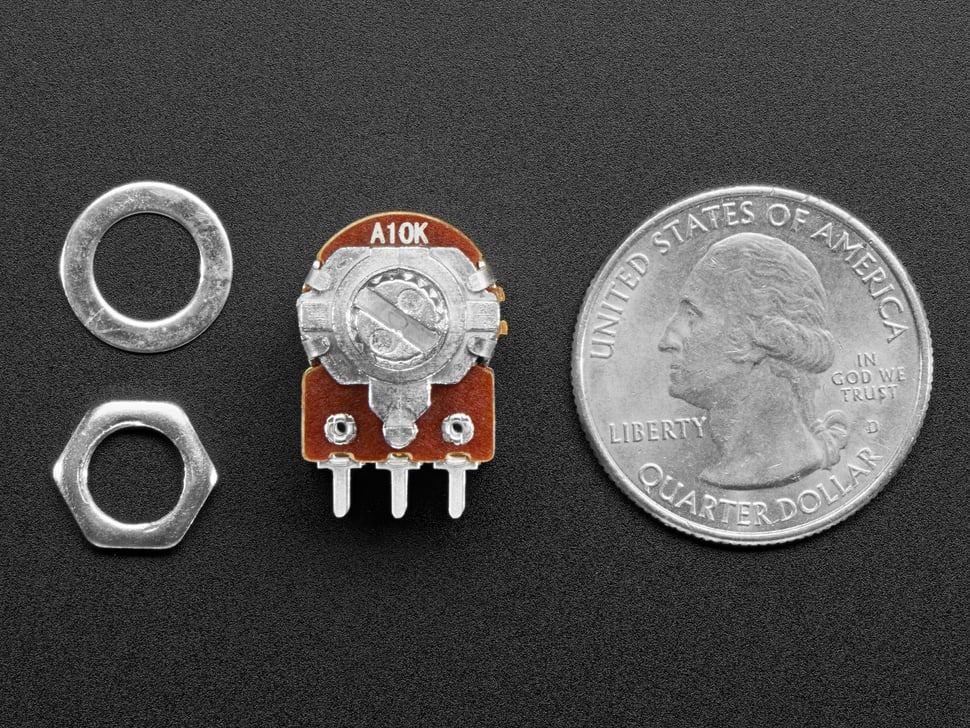

Installation involves drilling a hole in your project enclosure to mount the potentiometer securely with the included washer and hex nut.
Features:
- 10K dual log-taper potentiometer
- Integrated on/off switch
- Grippy, smooth rotating shaft
- Dual-ganged potentiometer
- Not breadboard friendly; requires soldering or custom PCB
- Includes washer and hex nut for panel mounting
Technical Details:
- Resistance: 10K ohm logarithmic taper
- Durability: 100,000 cycle life
- Body size: 16mm
- Rotational travel: 300°
- Static stop strength: 90 oz-in
- Rotational torque: 0.5 to 1.25 oz-in
- Product dimensions: 32.0mm x 20.0mm x 13.0mm (1.3" x 0.8" x 0.5")
- Product weight: 7.6g (0.3oz)
The potentiometer is perfect for audio volume control projects where power switching and volume adjustment are needed in one component.
