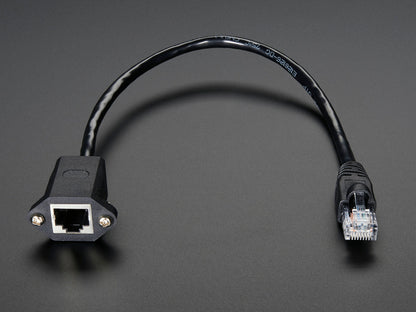

Panel Mount Ethernet Extension Cable

This handy Ethernet extension cable makes it easy to enclose a device with an Ethernet port, ideal for devices like Beagle Bone, Raspberry Pi, or Arduino Ethernet inside a box.

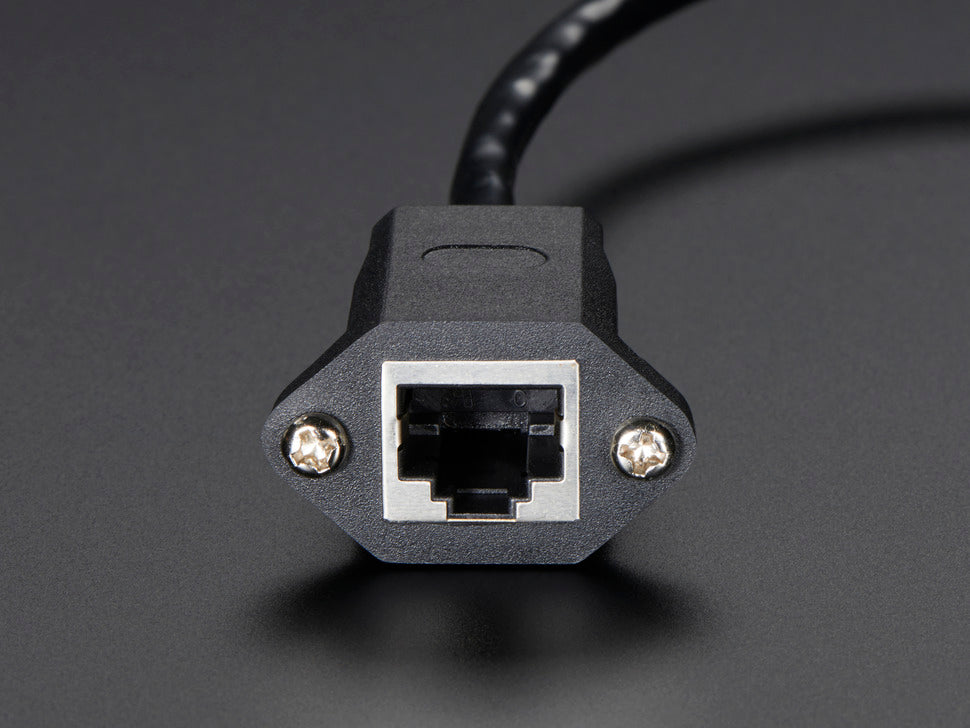

The jack half has two mounting 'ears' with 4-40 screws installed, spaced 1 inch (25mm) apart. The flexible ears allow for less precise drilling. It can be used with box walls up to 0.25" thick. The screws can be installed from the back for reverse mounting if needed. The entire unit is approximately 13" long, with 10" of cabling between the jack and the RJ45 Ethernet connector.

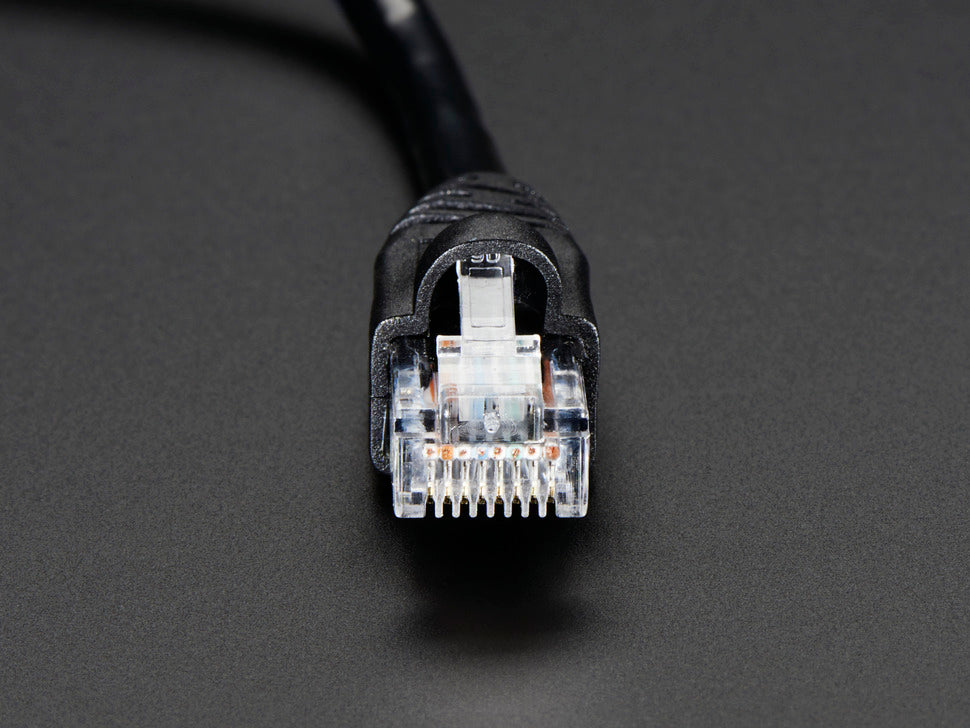

• Panel mount Ethernet 8P socket with Ethernet 8P plug at cable end; straight-through extension
• CAT 5e standard, 24 AWG wires

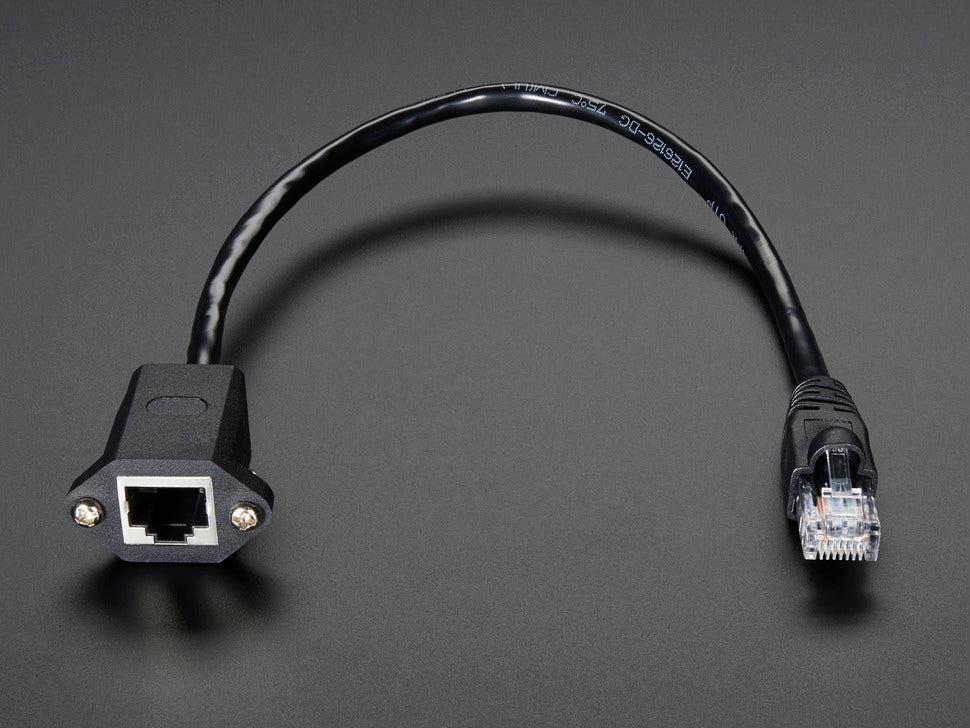

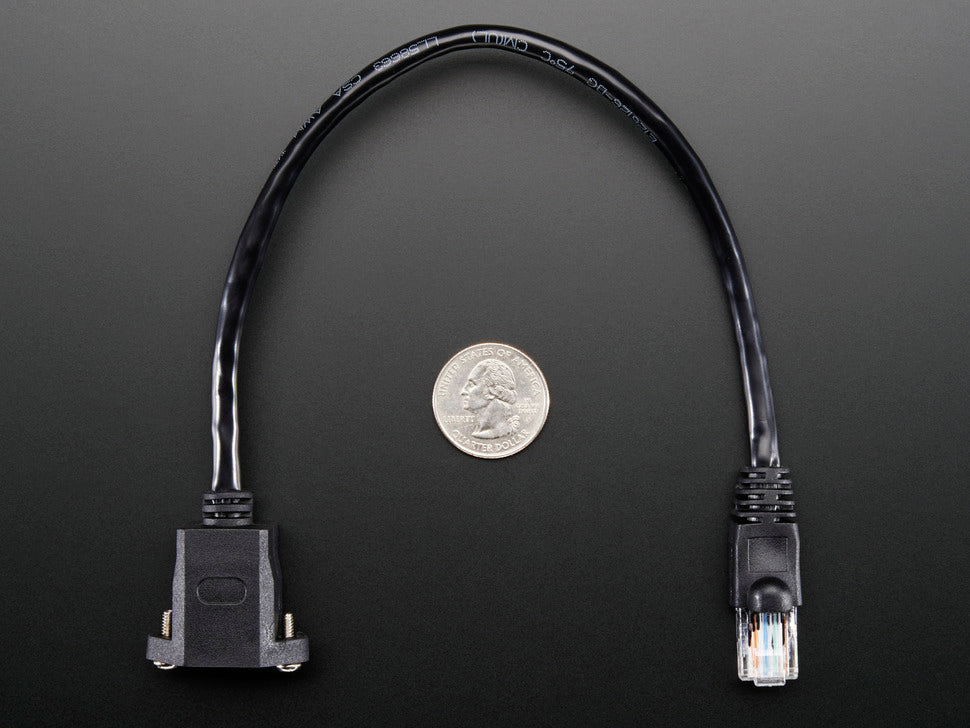

• Approximate length: 13" (33 cm) tip to tip; 10" (25 cm) cable length between jack and connector
• Two 10mm 4-40 mounting screws, 25mm apart

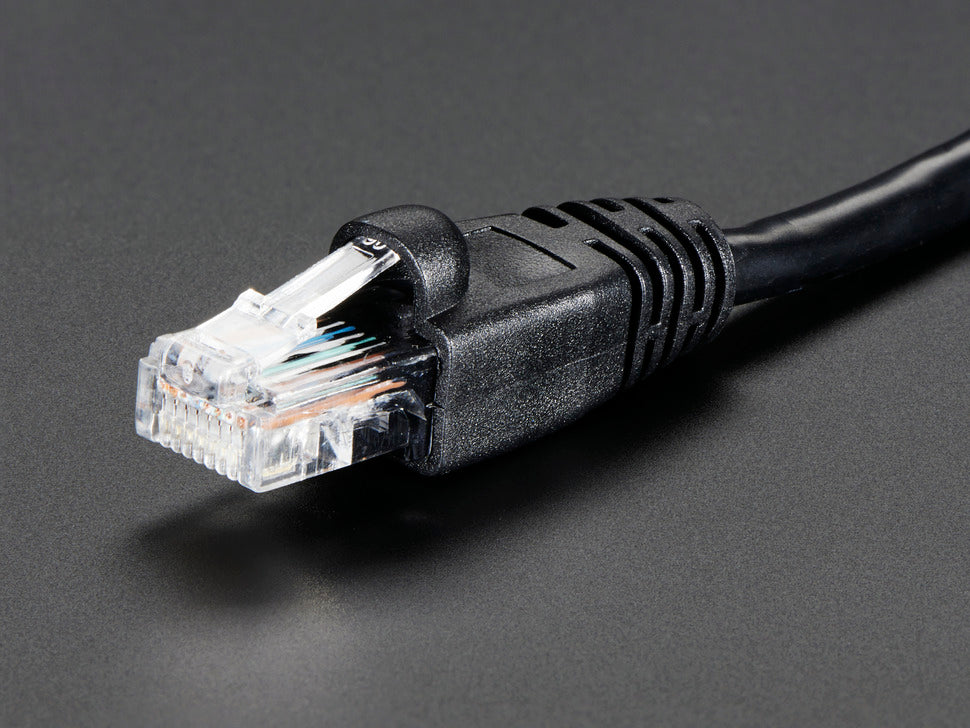

• Plastic boot at Ethernet end dimensions: 20mm tall x 33mm wide x 28mm deep

Mounting Diagram | Cable Diagram
