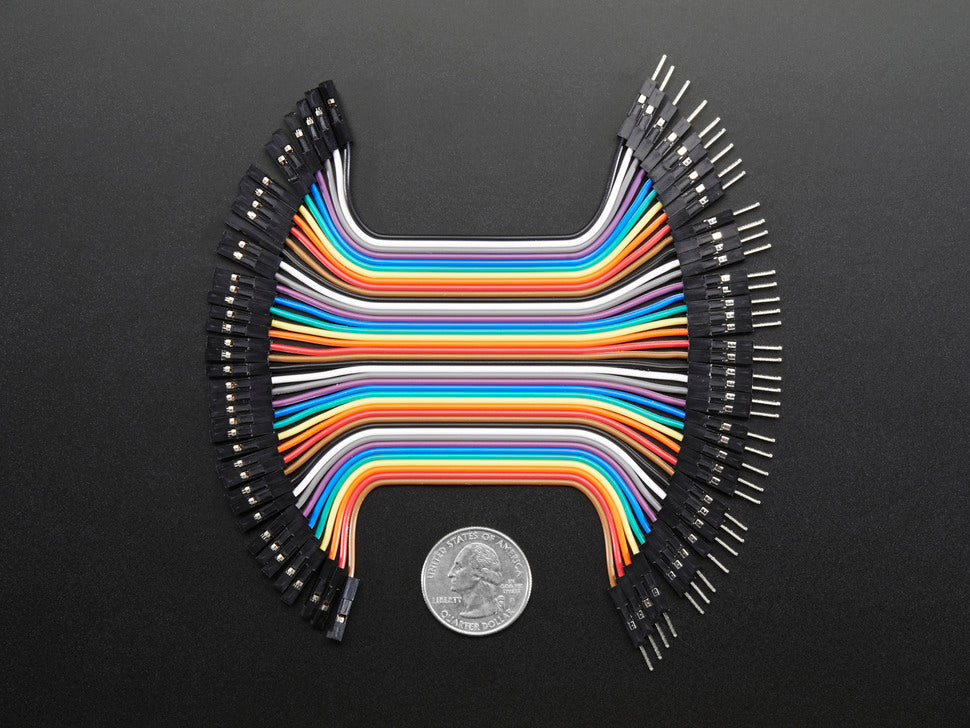

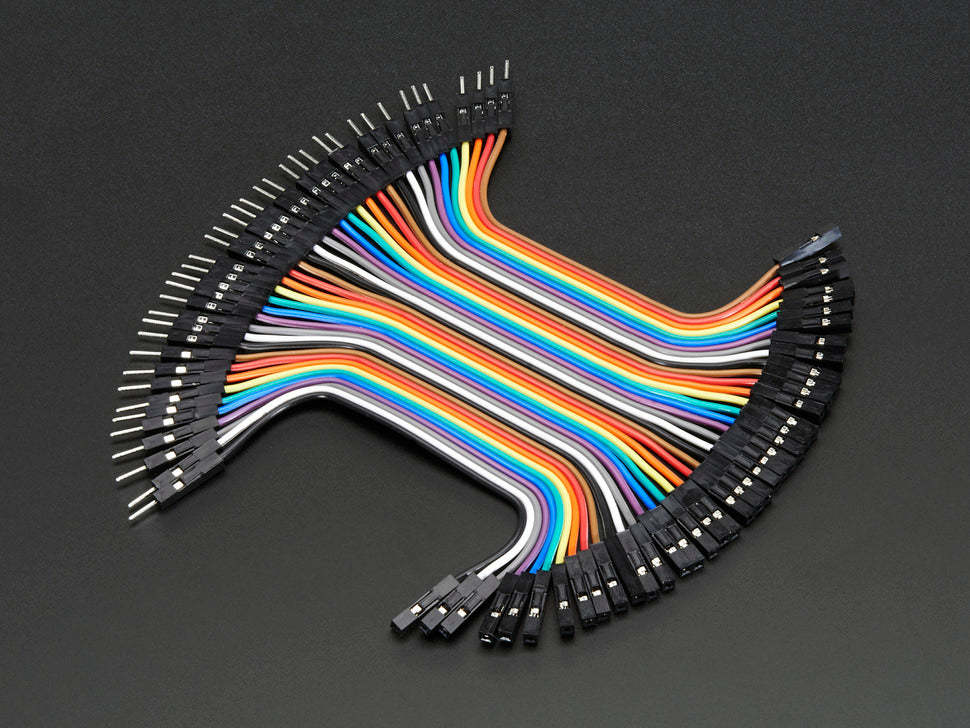

Premium Female/Male 'Extension' Jumper Wires - 40 x 3" (75mm)

Handy for making wire harnesses or jumpering between headers on PCBs, these premium jumper wires are approximately 3" (75mm) long and come in a strip of 40 wires (4 pieces of each of ten rainbow colors). Each wire has a 0.1" male header contact on one end and a 0.1" female header contact on the other, fitting cleanly next to each other on standard-pitch 0.1" (2.54mm) headers. The 40-pin ribbon cable can be left intact for organized wire harnesses or separated to create individual jumpers.

These jumper wires are available in a variety of lengths including 3" (75mm), 6" (150mm), and 12" (300mm), and come in male/male, female/female, and female/male configurations.

Note: The wire lengths may sometimes be slightly longer than listed. For best results, when plugging in a line, align the side with the silver latch bit (which is slightly wider than 0.1") outward.

• Approximately 3" (75mm) long
• 40 pieces in a ribbon cable (4 pieces of each of ten rainbow colors)
• 0.1" male header on one end, 0.1" female header on the other end
• Fits perfectly on standard 0.1" (2.54mm) pitch headers
• 28 AWG wire (7 strands @ 36 AWG)
• Can be used as bundled harnesses or individual jumpers
