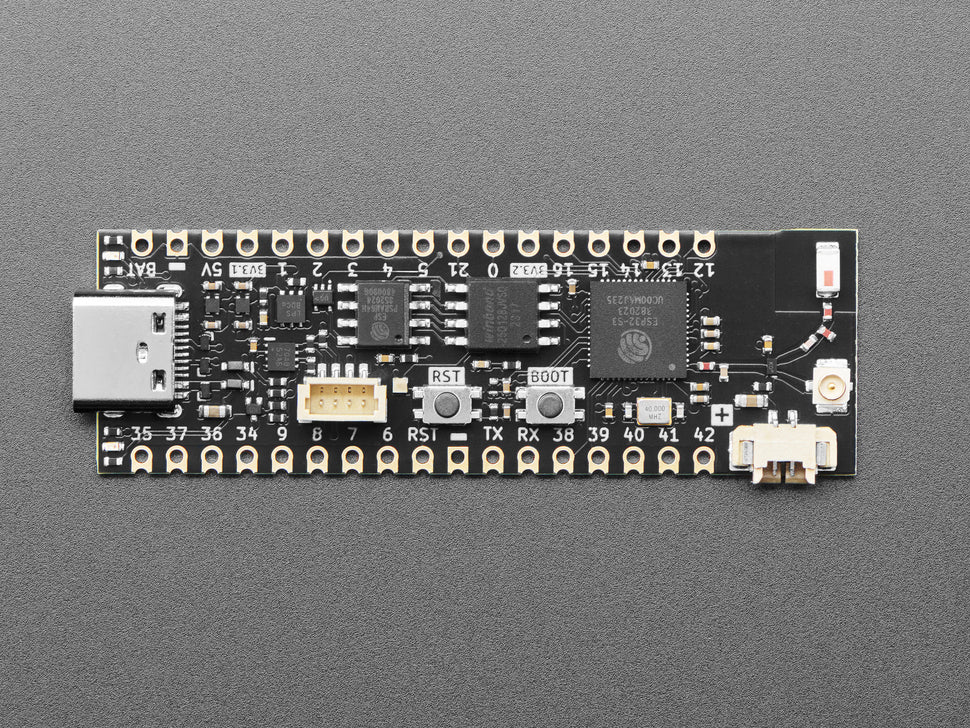

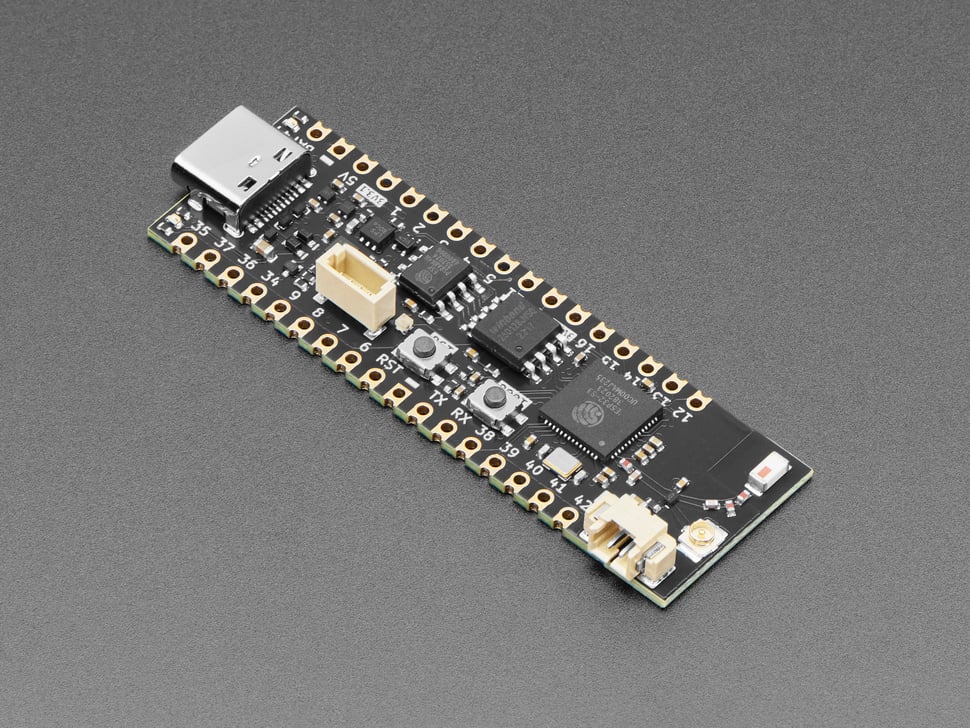

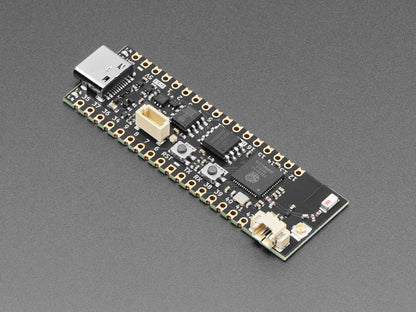

ProS3[D] ESP32-S3 Development Board by Unexpected Maker

Introducing the ProS3[D] - The Ultimate Pro ESP32-S3 Development Board designed by Unexpected Maker.

This board features two antenna options on a single board: an onboard antenna and a u.FL connector for an external antenna. You can switch between the antennas on the fly via an RF switch programmatically in your code. The onboard antenna is selected by default to prevent any damage or issues when no external antenna is plugged in.

The ProS3[D] supports multiple environments including CircuitPython (updatable from circuitpython.org), Arduino 2.0.3 or later with S3 support, ESP-IDF, and an early MicroPython port.

Features & Specifications

• 32-bit dual core 240MHz processor
• RISC-V ultra low power core
• 2.4GHz WiFi - 802.11b/g/n
• Bluetooth® 5, BLE + Mesh
• 16MB QSPI Flash
• 8MB Extra QSPI PSRAM

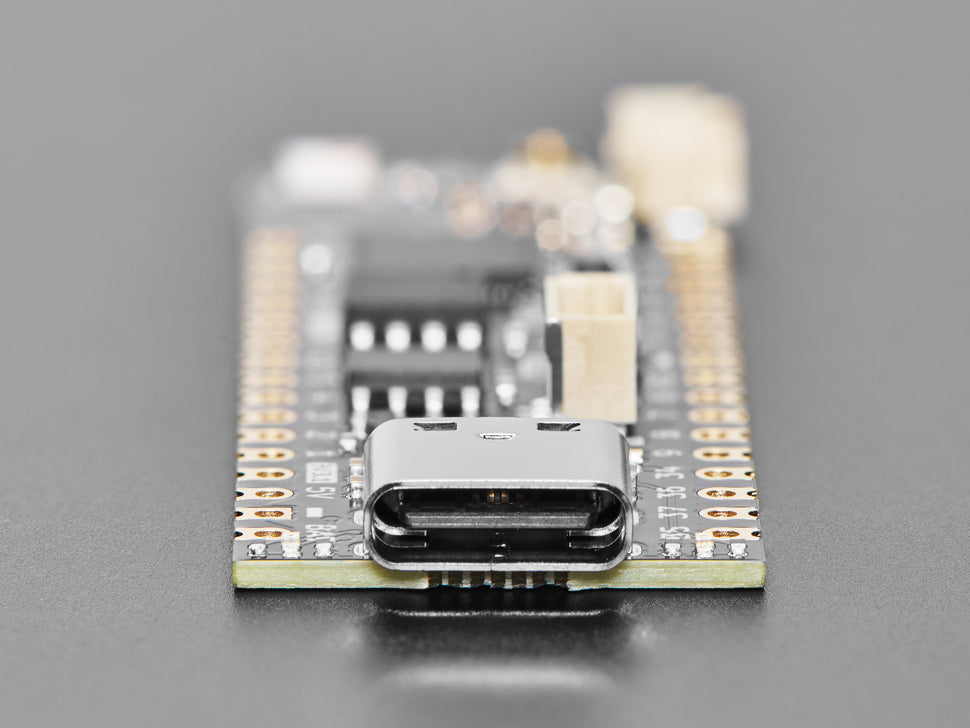

• USB-C Connector with USB ESD protection and reverse USB back-feed protection
• JTAG Pins + USB Serial JTAG
• 2x 700mA 3.3V LDO Regulator
• Ultra low deep sleep current
• STEMMA QT connector powered by LDO1
• Low Power RGB LED
• 5V presence detection
• LiPo Battery Charging with MicroBlade LiPo connector and Power (red), Charge (orange) LEDs
• 27x GPIO pins broken out
• Castellated Headers
• NEW I2C Battery Fuel Gauge
• NEW 3D High Gain Antenna AND u.FL connector
• Compatible with TinyPICO, TinyS2 & TinyS3 boards

For technical support, visit the Unexpected Maker contact form or their Discord server.

Check out the full Getting Started Guide and GitHub repository for more information.

Download the product diagram (PDF)
