Raspberry Pi Debug Probe Kit for Pico and RP2040

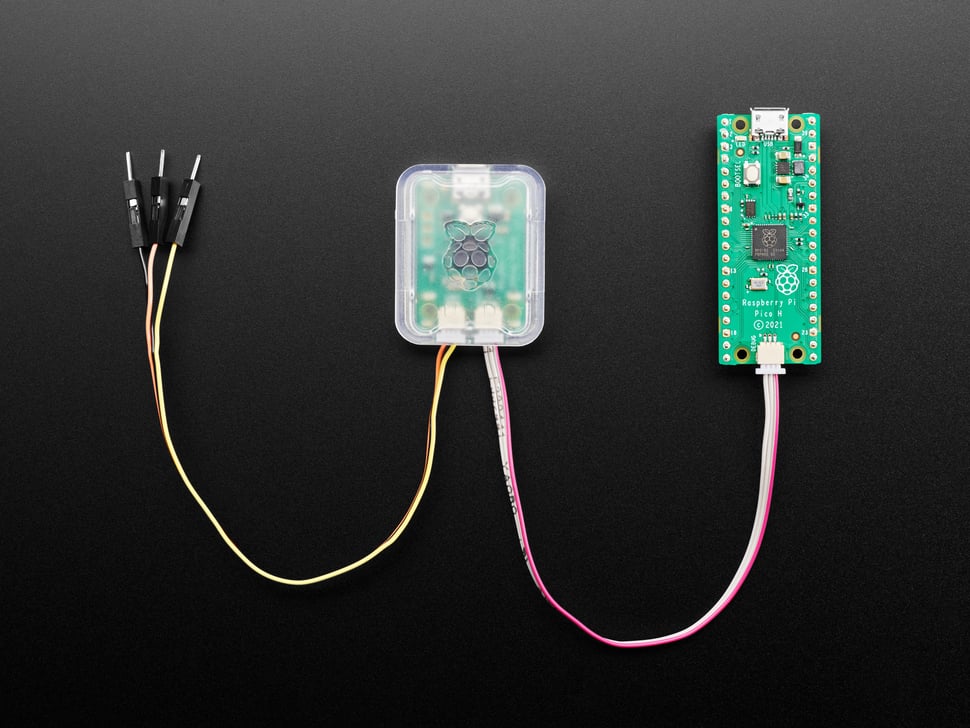

The Raspberry Pi Debug Probe Kit is a comprehensive USB-to-debug solution designed for seamless, solderless plug-and-play debugging of the RP2040 chipset and Raspberry Pi Pico. It brings advanced debugging capabilities such as step and trace debugging using gdb & OpenOCD, going beyond traditional printf-style debugging methods.

This kit features both a processor serial debug interface (Arm Serial Wire Debug interface by default) and an industry-standard UART interface, compatible with the Raspberry Pi 3-pin debug connector specification. It also includes a bonus USB-to-Serial converter for UART bridge functionality, offering more versatility at a cost-effective price.

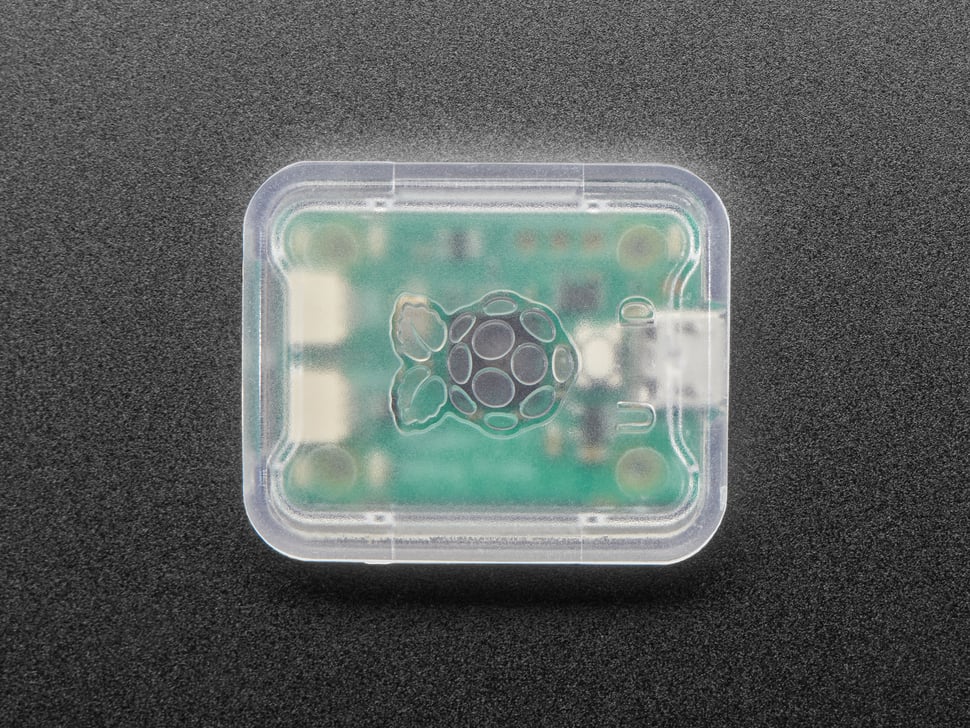

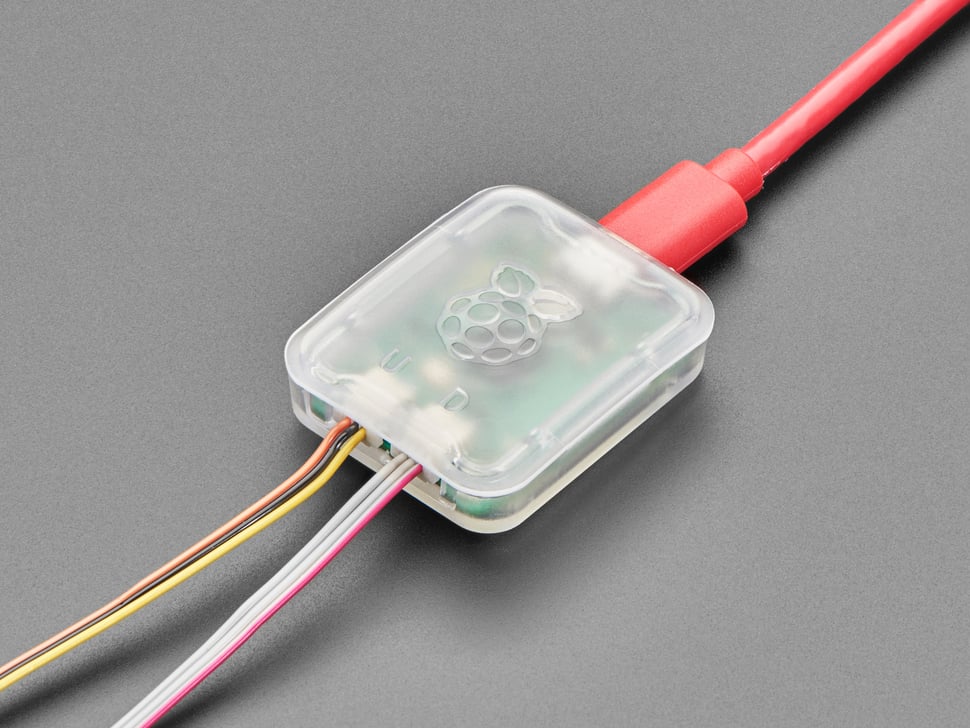

The kit contains the Debug Probe hardware in a protective plastic case, along with a USB cable and three types of debug cables to cover most debugging use cases. It supports major host platforms including Windows, Mac, and Linux, and works with OpenOCD and other CMSIS-DAP compatible tools.

Compatible devices extend beyond Raspberry Pi products to any ARM-based microcontroller with a 3.3V I/O SWD port. The firmware is based on Raspberry Pi Pico hardware running open source Picoprobe software, allowing easy updates and customization.

Included in the kit:

• 1 x Raspberry Pi Debug Probe with USB to SWD & UART
• 1 x Protective enclosure

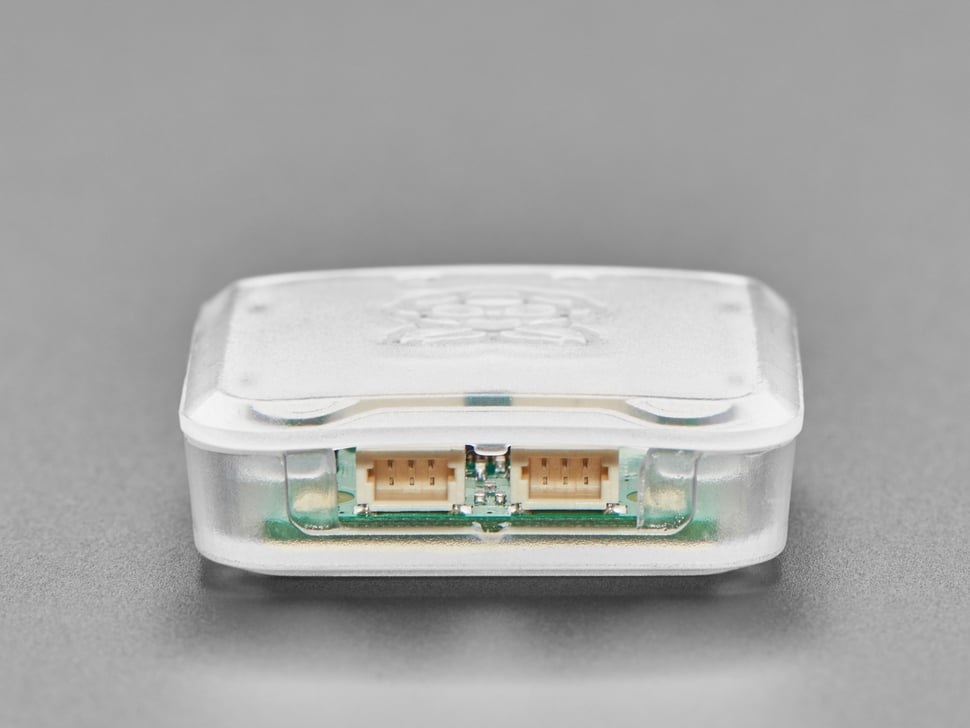

• 1 x JST SH to JST SH 3-pin SWD cable
• 1 x JST SH to premium female socket header
• 1 x JST SH to premium male plug header

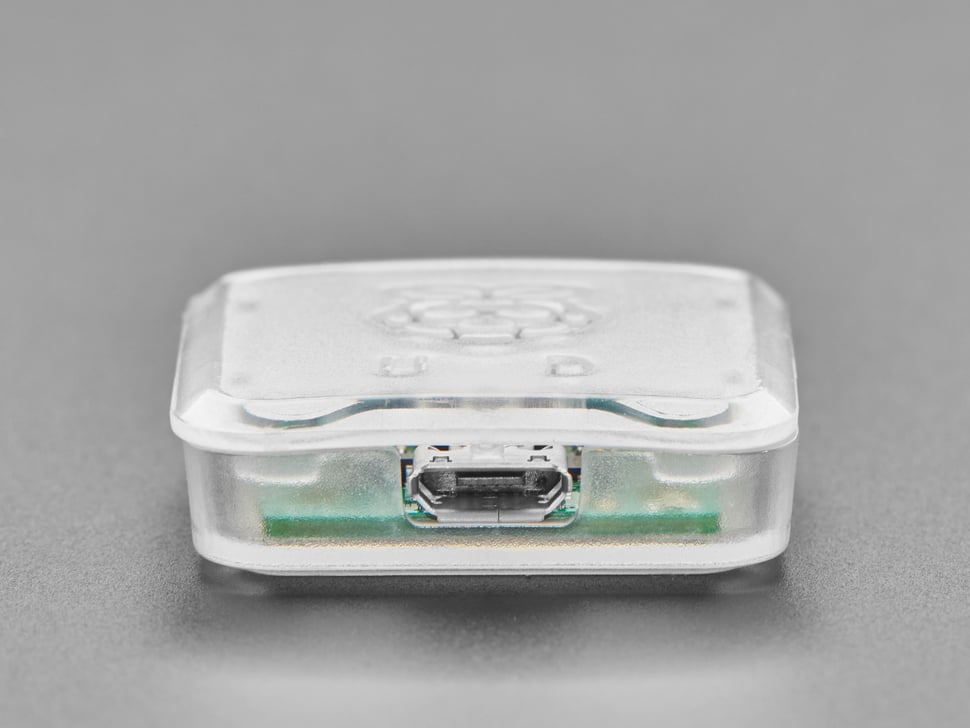

• 1 x USB A to Micro-B cable

Features:

• All-in-one USB to serial debug and UART bridge
• Supports Arm Serial Wire Debug (SWD) and UART
• Compatible with CMSIS-DAP standard
• Works with OpenOCD and other CMSIS-DAP tools

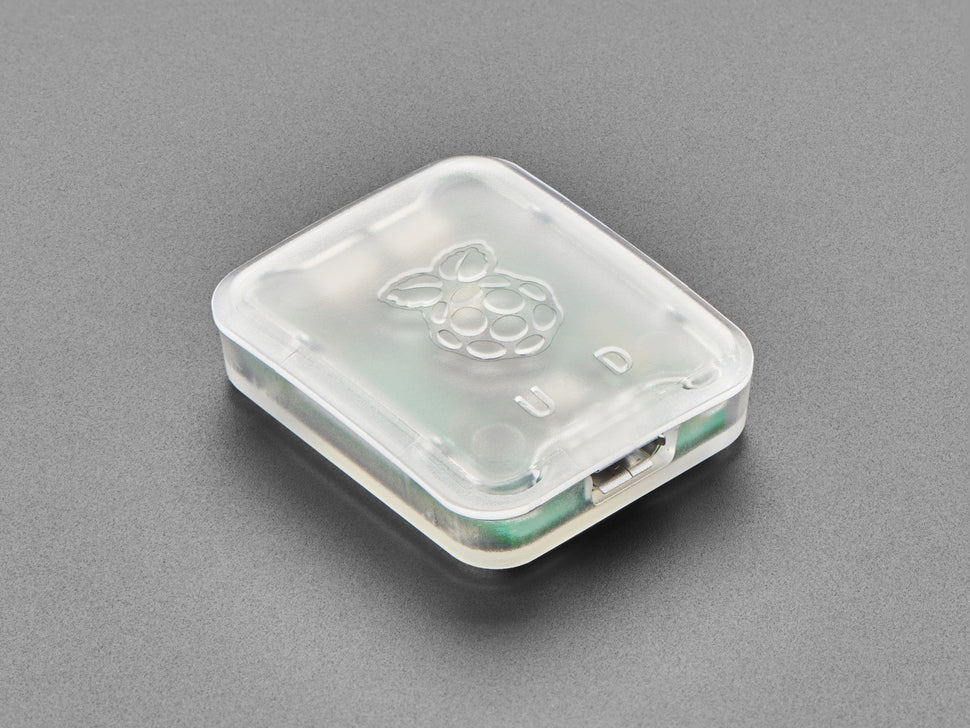

• Includes high-quality transparent plastic case
• Multiple debug cables for versatile connections
• Nominal I/O voltage: 3.3V
• Small compact form factor (22mm × 32mm)

For detailed product brief and documentation, visit the official Raspberry Pi site.
