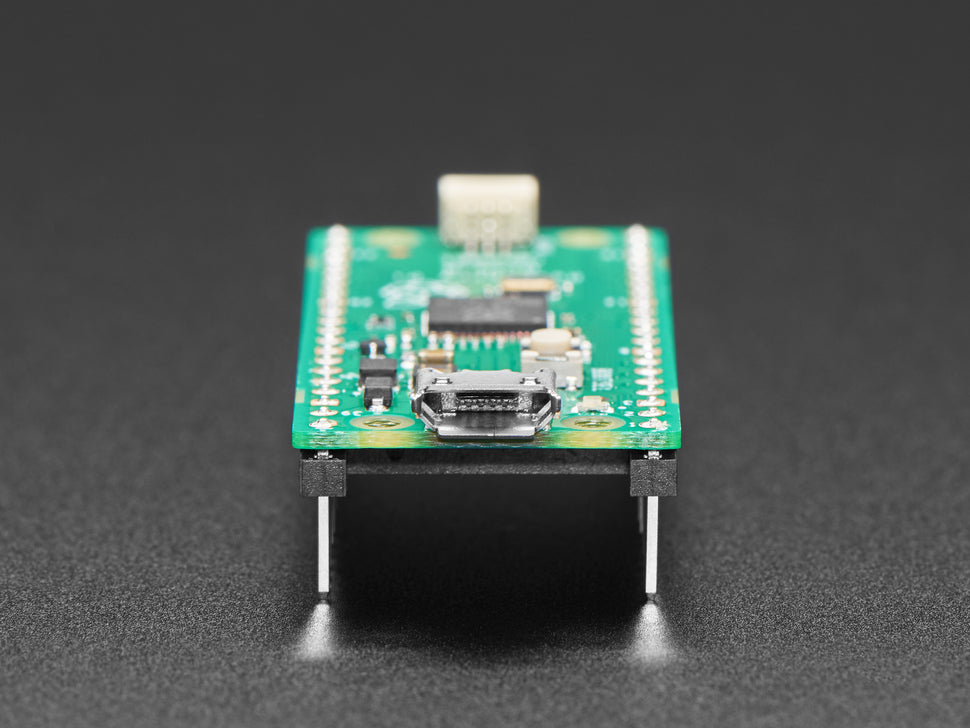

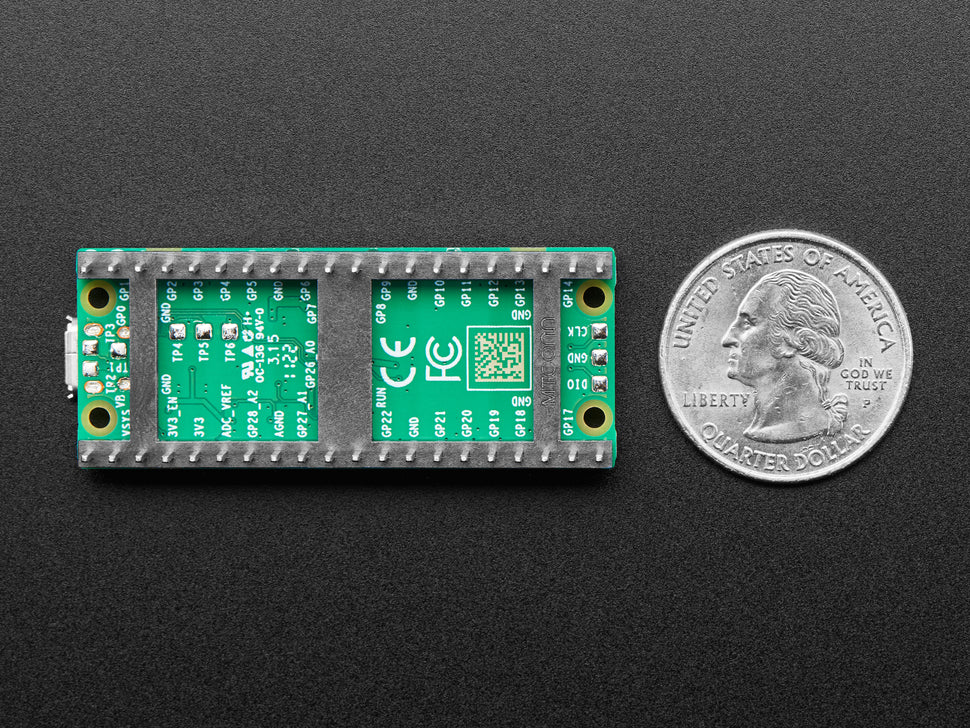

Raspberry Pi Pico H - Pico with Headers Soldered

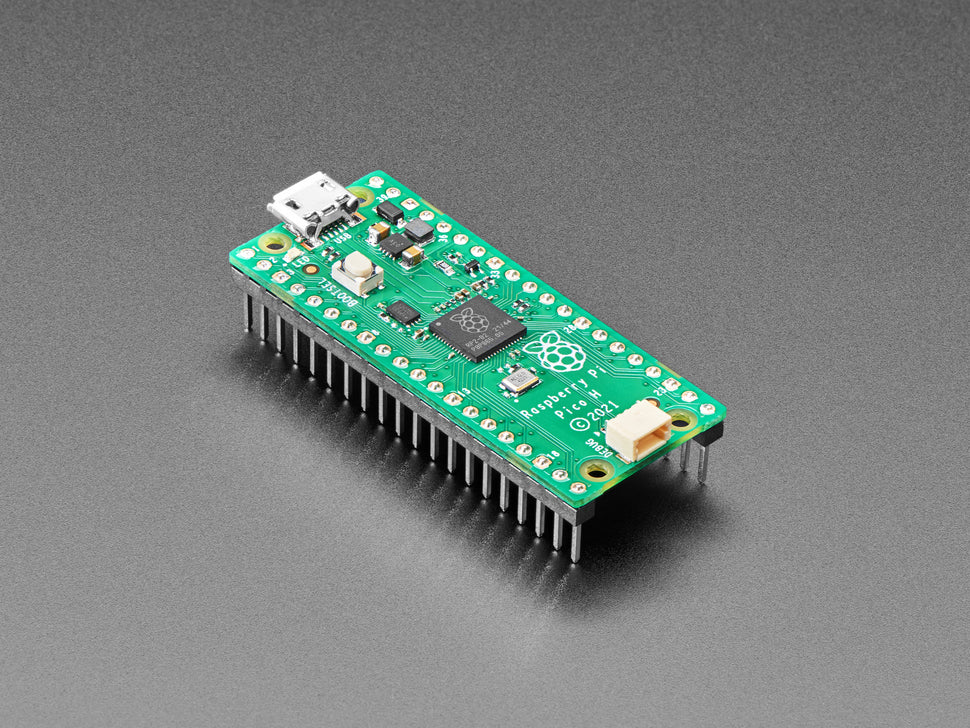

The Raspberry Pi Pico H is a low-cost microcontroller board featuring the powerful RP2040 chip, now with pre-soldered headers and a new 3-pin debug connector for easy development.

This board includes 25 GPIO pins (3 analog inputs), dual-core ARM Cortex-M0+ processors running at 133MHz, 264kB on-chip SRAM, and 2MB QSPI flash storage. GPIO pins operate at 3.3V logic levels and are not 5V tolerant.

Features include USB 1.1 device and host support, two UARTs, two SPI controllers, two I2C controllers, 16 PWM channels, and 8 programmable I/O (PIO) state machines for flexible and precise hardware control.

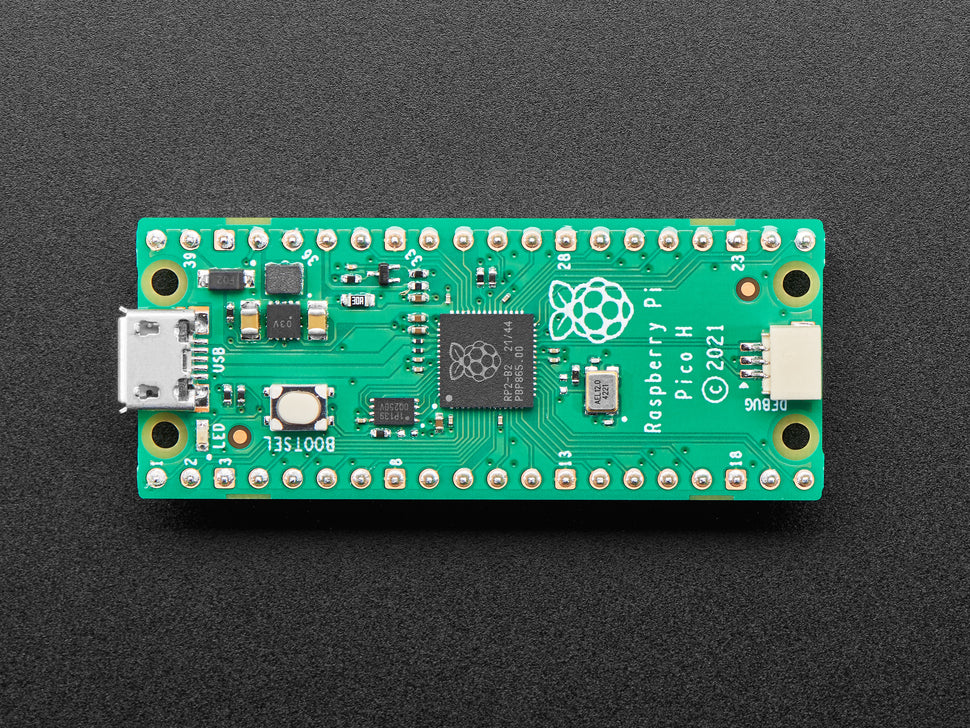

The Pico H has a BOOTSEL button to enter the USB mass storage bootloader, making firmware updates easy. The board is compatible with C/C++, MicroPython, and CircuitPython environments, as well as Arduino via the Philhower core.

Key Features:

• Dual ARM Cortex-M0+ cores @ 133 MHz
• 264kB SRAM in six independent banks
• Supports up to 16MB of off-chip Flash via QSPI bus
• 2MB onboard QSPI flash
• 25 GPIO pins, 3 analog inputs
• Pre-soldered headers for easy prototyping

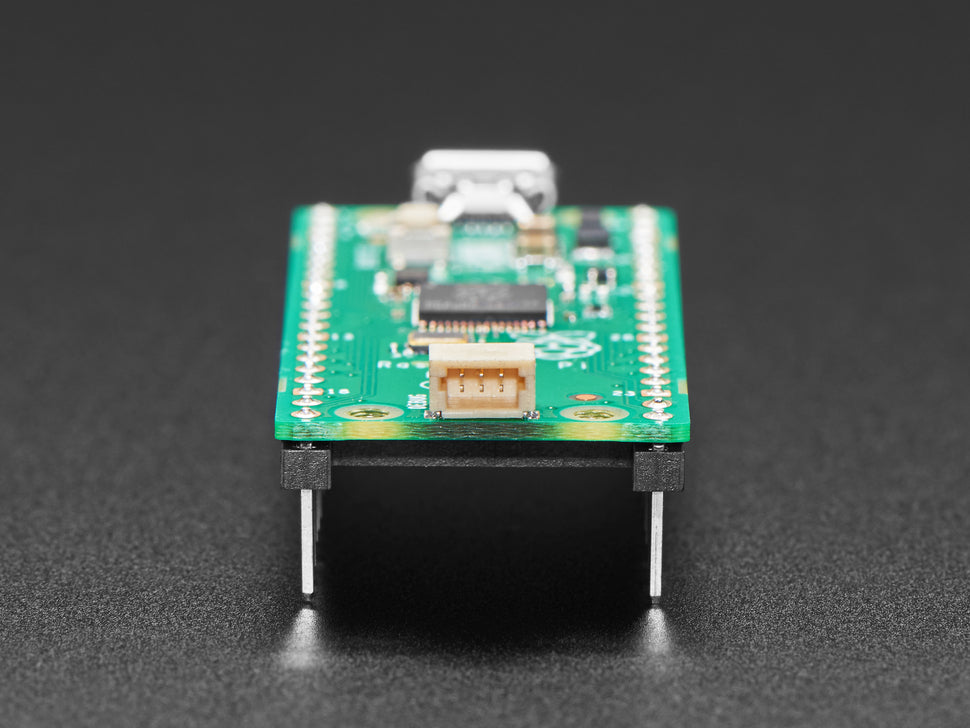

• 3-pin debug connector
• USB 1.1 device and host support
• 8 PIO state machines for custom hardware control
• Supports MicroPython, CircuitPython, C/C++, and Arduino

Click here to get started with your Pico!
