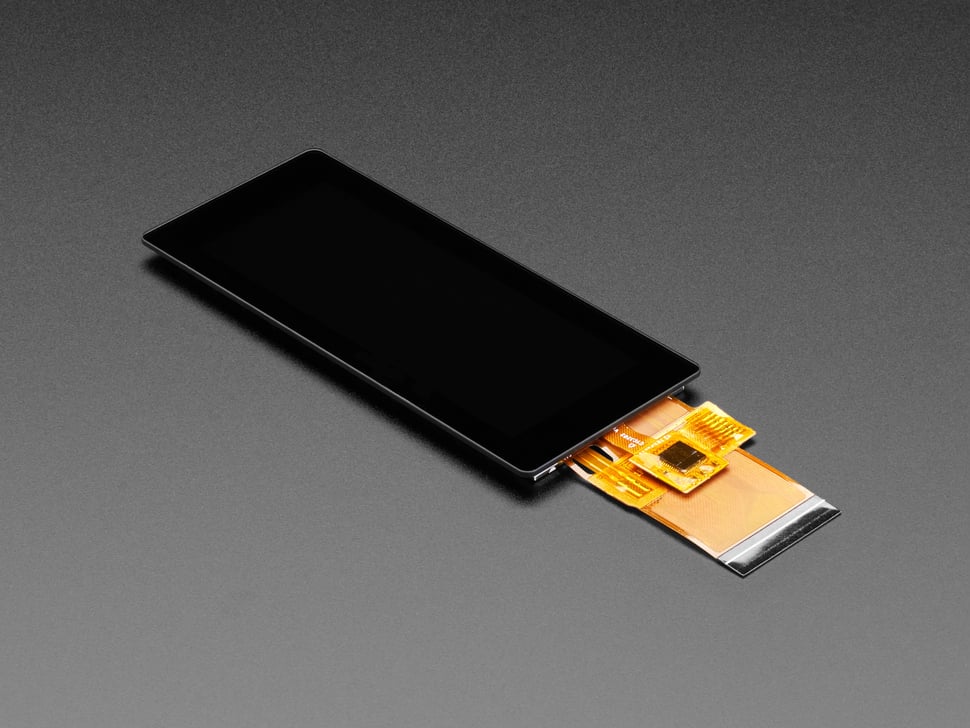

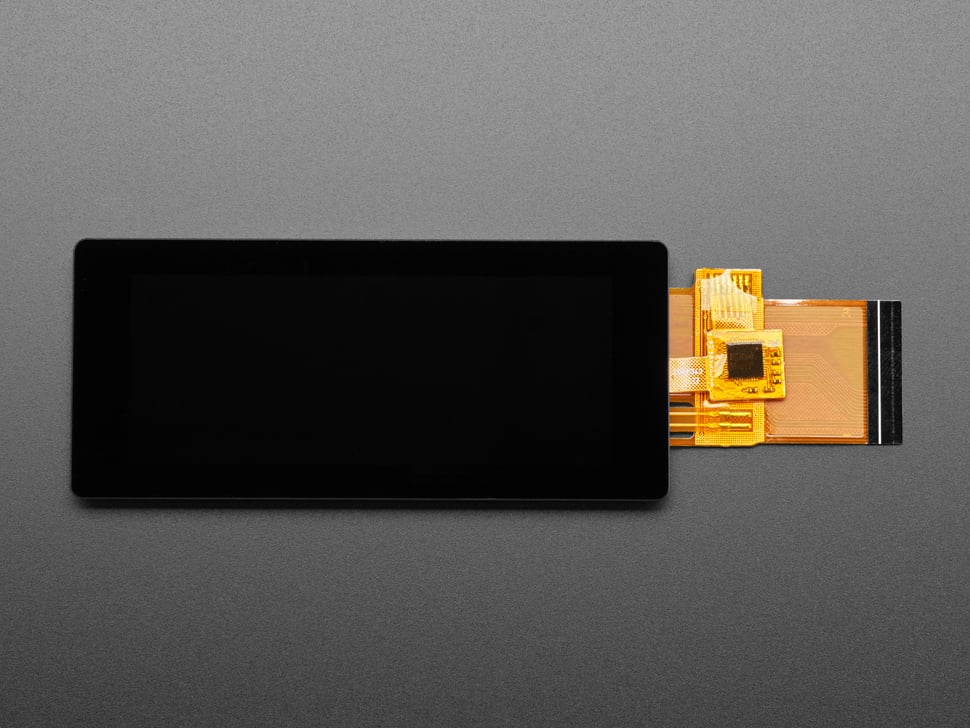

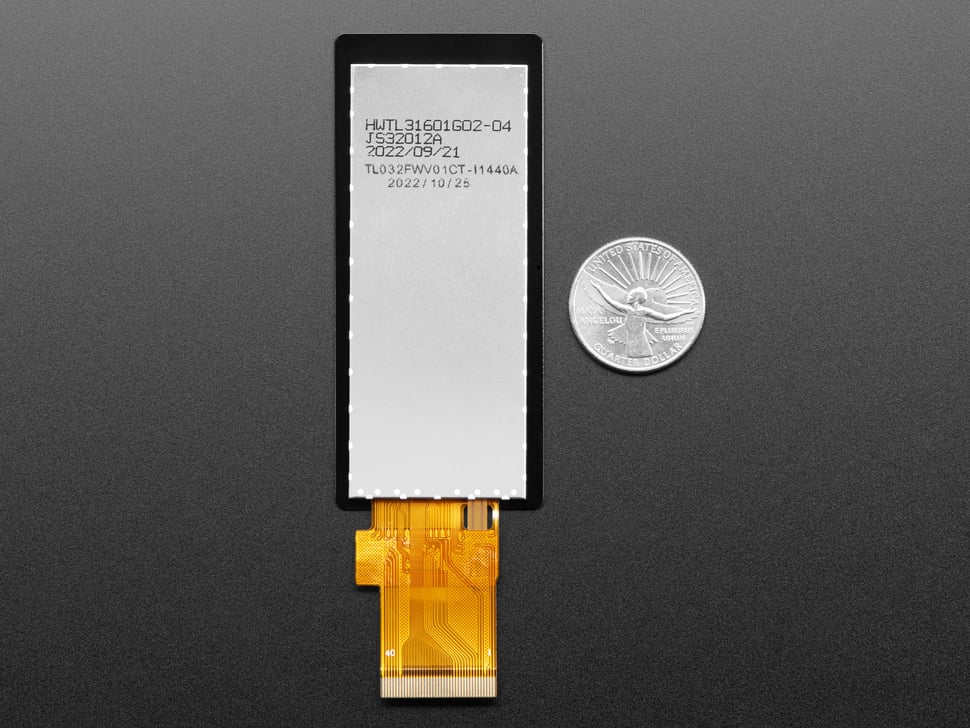

Rectangle Bar RGB TTL TFT Display - 3.2" 320x820 with Capacitive Touch

This is a specialized 3.2" rectangular TFT display with a resolution of 320x820 pixels and 18-bit full color (RGB666). It features an IPS panel ensuring vibrant colors with wide viewing angles up to 80 degrees off-axis.

The display is driven by the ST7701S controller and uses a combination of SPI for configuration and TTL RGB 'dot clock' data for pixel driving. Note that SPI communication is only for configuration and cannot be used to draw pixels.

The display includes a capacitive touch panel with the FT6336U controller, supporting I2C and interrupt (IRQ) communications via a 40-pin FPC connector.

Important: This module is intended for advanced users and requires a powerful microcontroller or computer capable of TTL RGB TFT driving, such as an ESP32-S3 with octal PSRAM or a Raspberry Pi with direct DPI or an appropriate intermediary chip (e.g., ICN6211). It is not compatible with standard microcontrollers like Feather or Arduino without proper support.

This is just the display module without a driver PCB included.

• 3.2" IPS TFT display with 320x820 RGB666 resolution
• ST7701S driver IC, SPI for configuration only
• TTL RGB 'dot clock' interface for pixel data
• 40-pin FPC with capacitive touch (FT6336U), I2C and IRQ support
• Vibrant colors and wide viewing angles

For compatibility, please ensure your system supports the required TTL RGB driving and check out the Adafruit Qualia ESP32-S3 for TTL RGB-666 Display.

See the technical documentation and learn guides for more information and project ideas.
