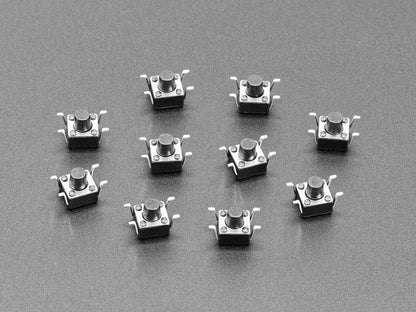

Reverse Mount Tactile Switch Buttons - 6mm Square - 10 Pack

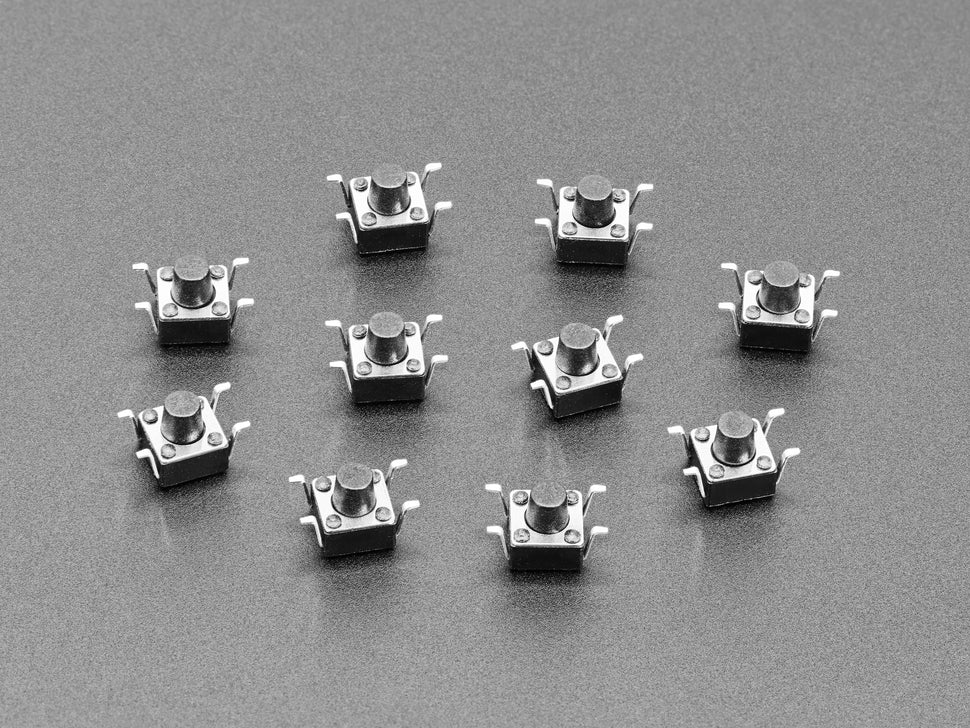

Have you ever seen a tactile button do a headstand? This little clicky button is like a circus performer, contorting itself so its legs stick up instead of down the way most are. Perfect for SMT projects where you want a button that comes through a PCB but without front height, providing a flush design.

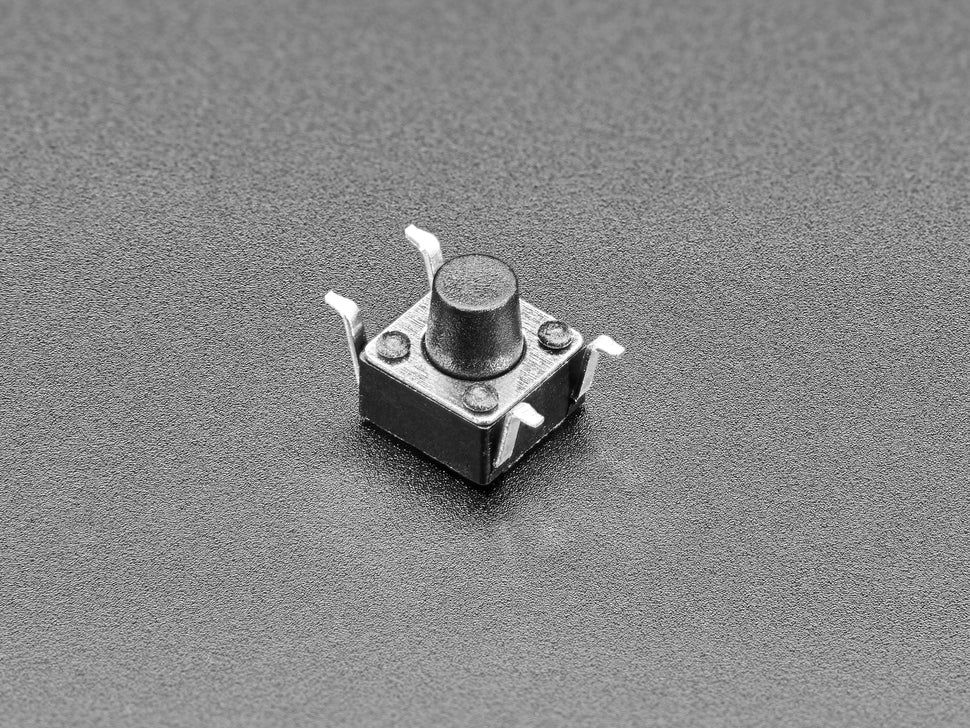

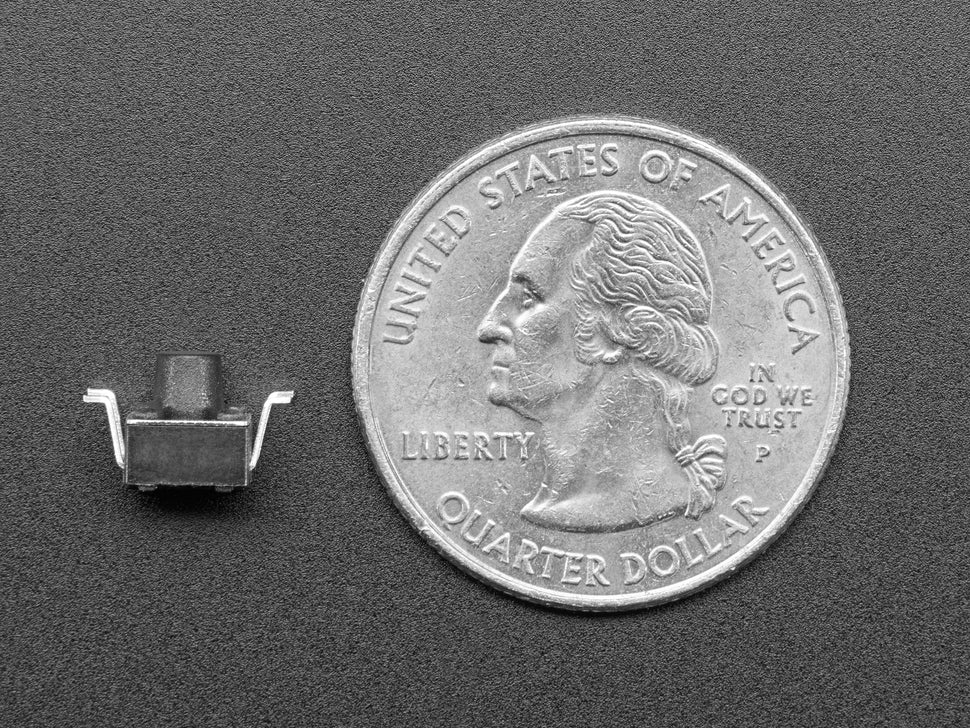

The tactile switch body measures 6x6mm with a height of 6.5mm and a mounting height of 4.5mm. Using a 1.6mm thick PCB, the button top will rise 0.4mm above the PCB plane. Using a 0.8mm half-thickness PCB increases the height above the PCB plane to 1.2mm.

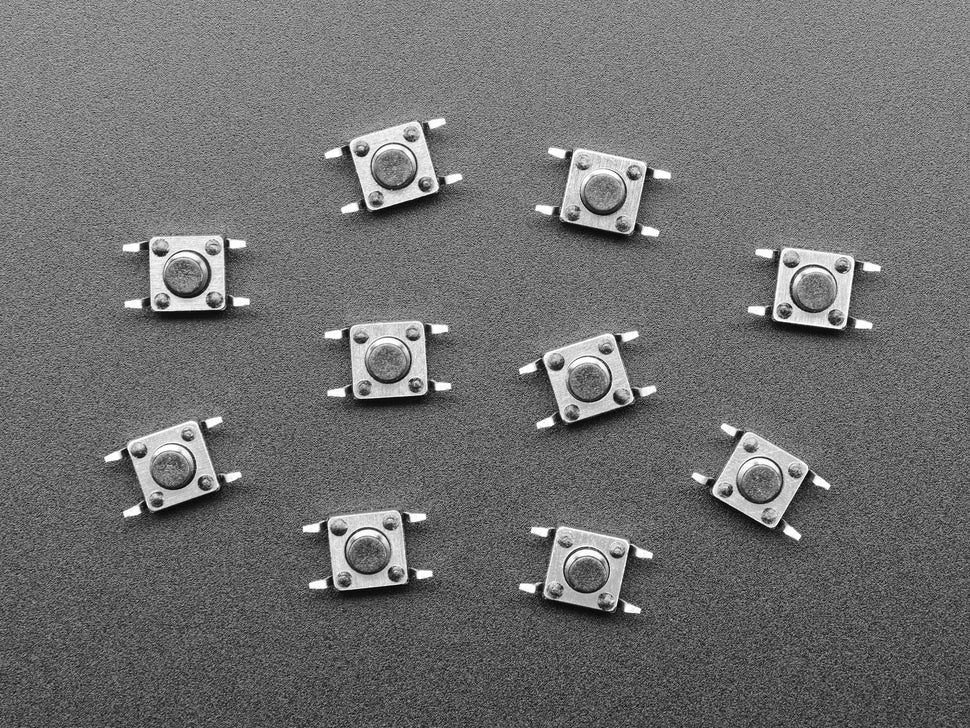

These switches come in a pack of 10. The pins are normally open and momentarily close when pressed.

• Base Dimensions: 6mm x 6mm
• Button Height: 6.5mm
• Force Pressure: 250g

Includes links to datasheet and tutorials for beginners.
