Rugged Metal On/Off Switch with Blue LED Ring - 16mm Blue On/Off

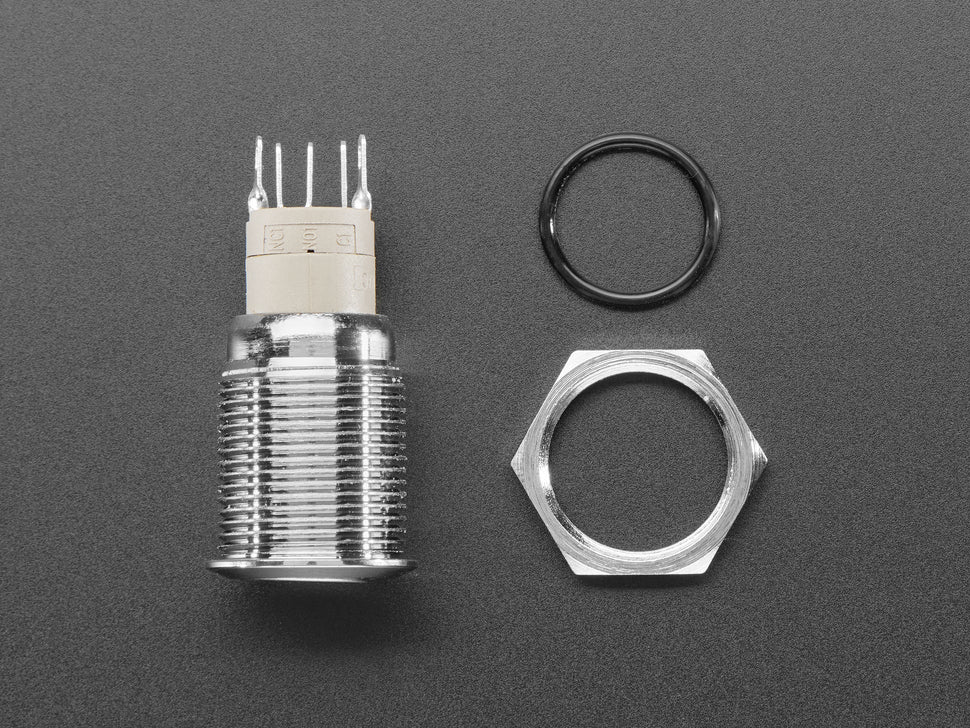

These chrome-plated metal buttons are rugged and visually striking with a blue plastic LED ring. Drill a 16mm hole into any material up to 1/2" thick to install easily. The button features a rubber gasket to keep water out.

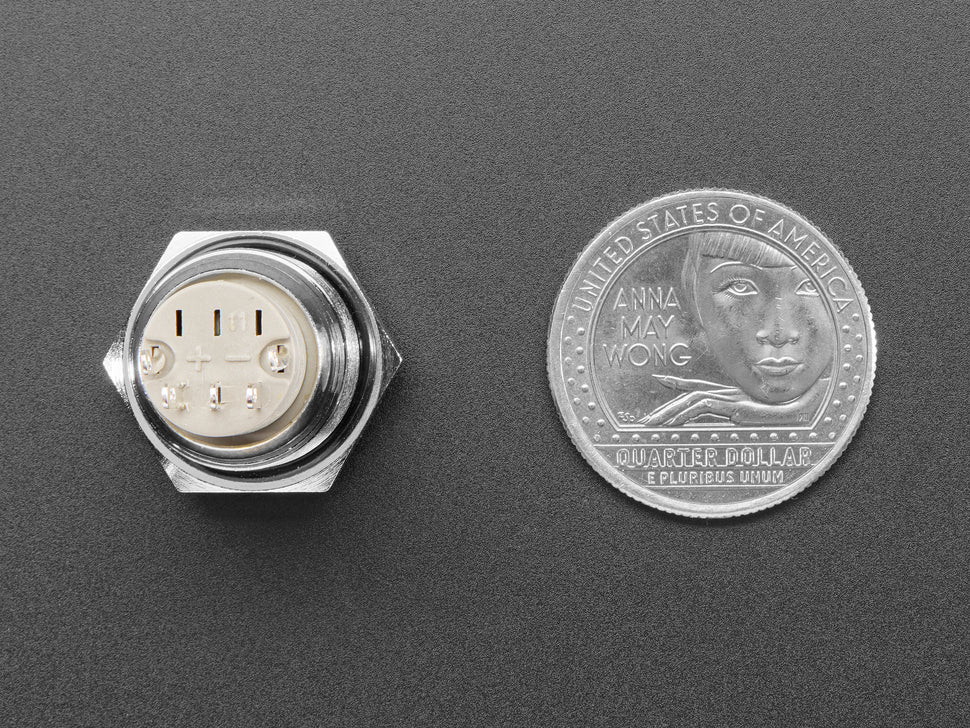

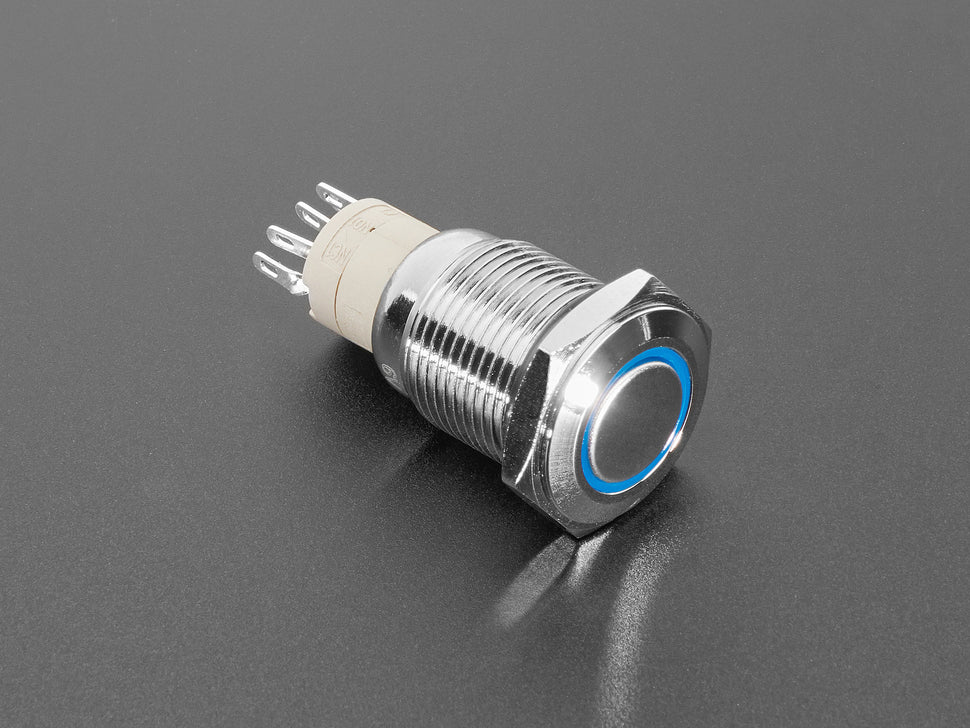

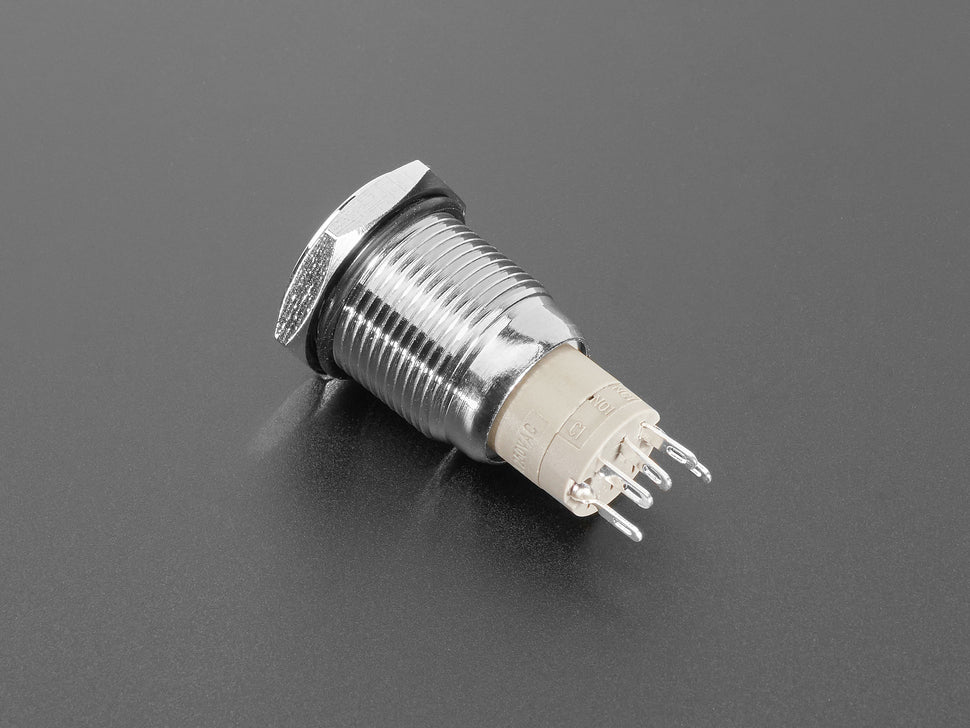

The switch has a flat metal actuator surrounded by a blue LED ring. The back has 3 contacts for the button (common, normally-open, normally-closed) and 2 for the blue LED ring (+ and -). Connect 3 to 6V to power the LED with a built-in resistor; for higher voltages, add a 470 ohm resistor to keep LED current around 20mA.

This is an on/off switch button: pressing once connects the normally-open contact to the common contact and the button stays pressed; pressing again releases it. Switch and LED are separately wired, allowing flexible configurations.

• Drill hole diameter: 16mm
• Switch rating: 3A / 250VDC
• Switch contacts: 1 NO, 1 NC
• Material: Chrome-plated brass
• Contact resistance: < 50 mOhm
• Insulation resistance: > 1000 Mohm
• Operating temperature: -20°C to +55°C
• Mechanical life: > 500,000 cycles
• Electrical life: > 50,000 cycles
• Panel thickness supported: 1-13mm
• Operating pressure: 1.5 - 2.5 N
• Operating stroke: 2mm
• LED lamp rated voltage: 6V
• Weight: 13.9g

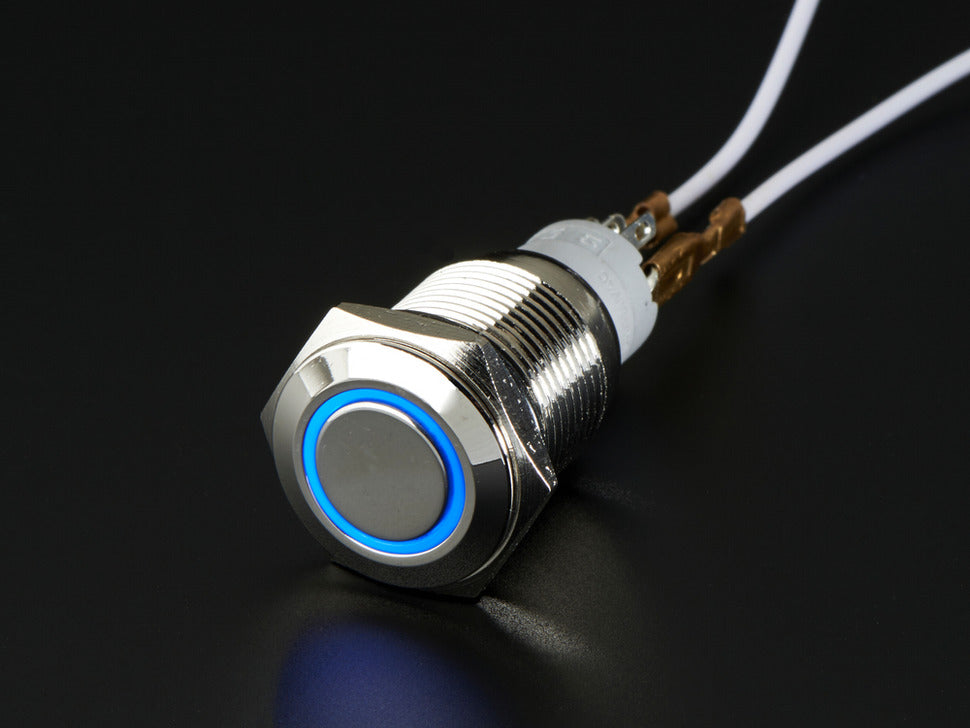

Compatible with Arcade Button Quick-Connect Wire Pairs - 0.11" (10 pack).
