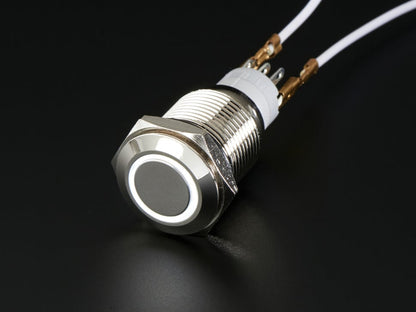

Rugged Metal Pushbutton with White LED Ring - 16mm White Momentary

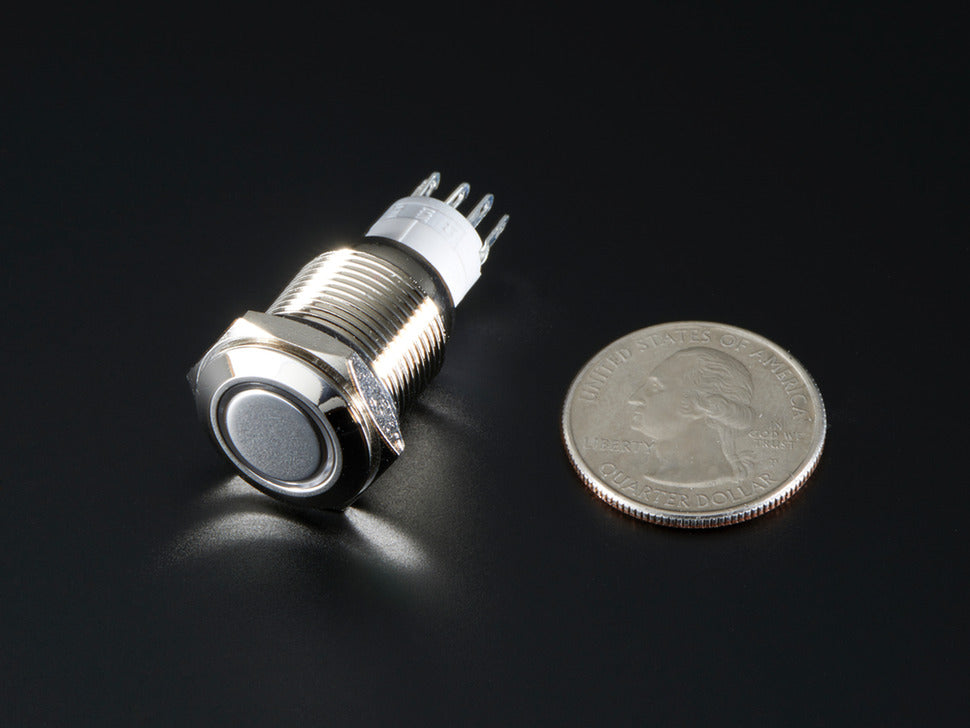

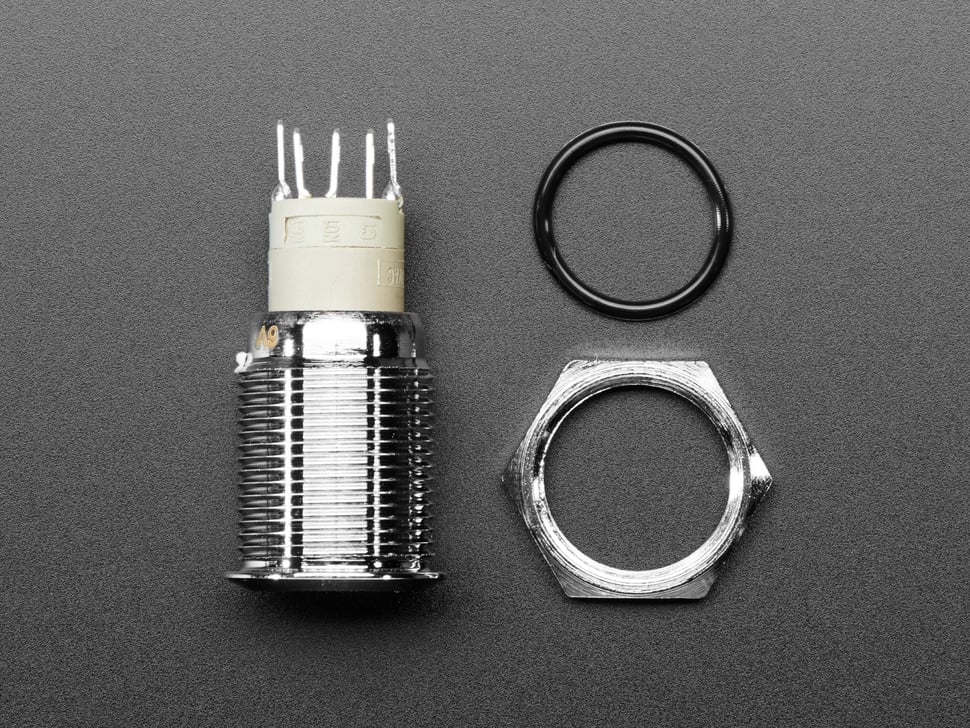

These chrome-plated metal buttons are rugged and visually appealing. Simply drill a 16mm hole into any material up to 1/2" thick to fit this pushbutton, which includes a rubber gasket to keep water out of the enclosure.

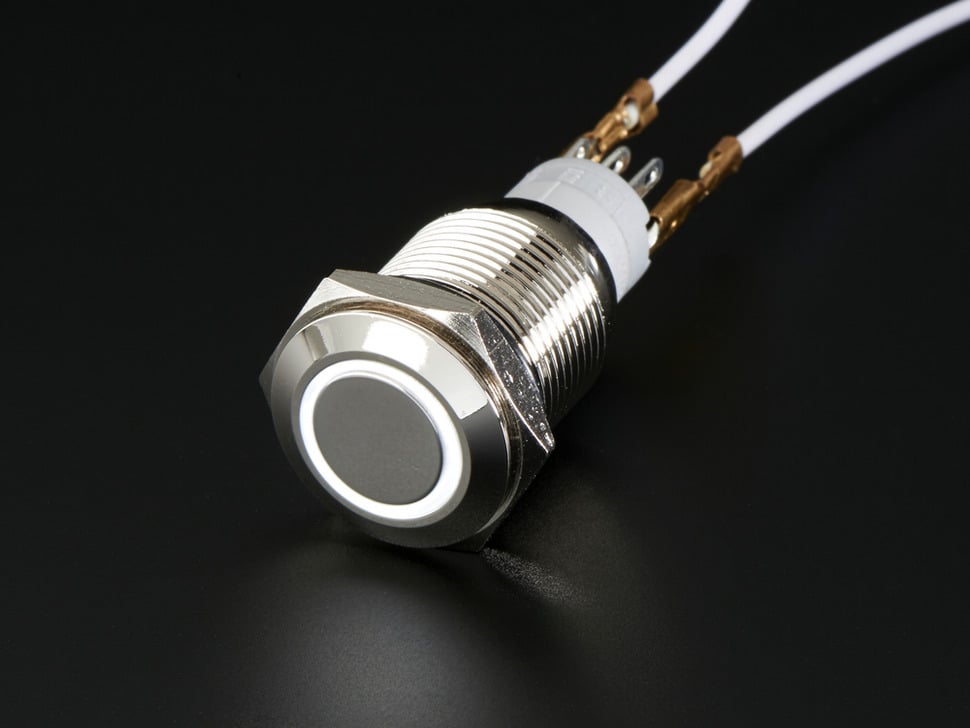

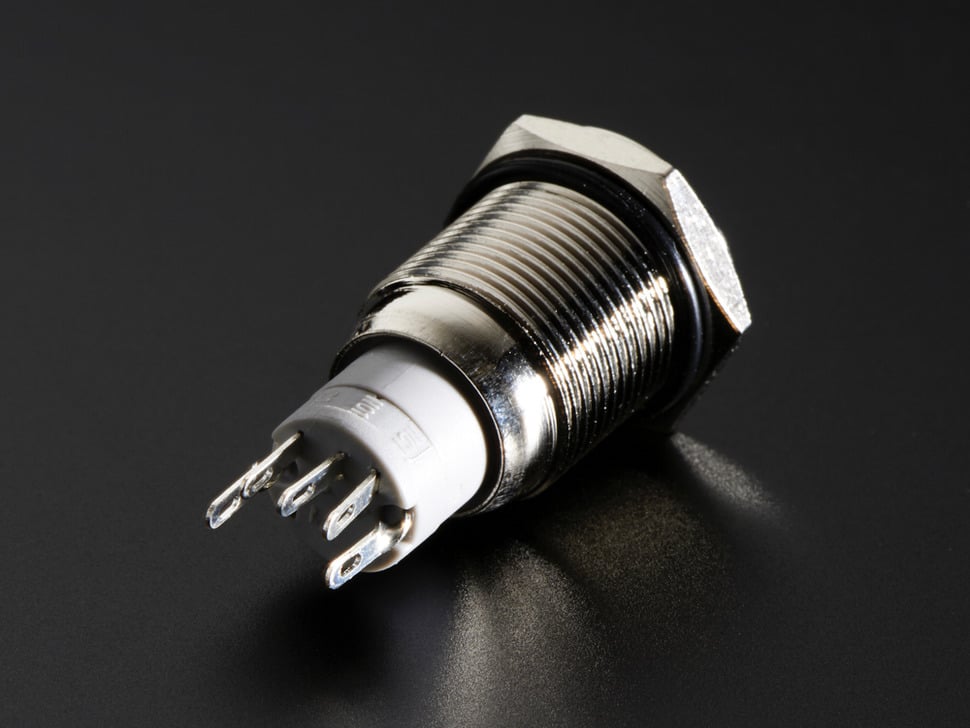

The button features a flat metal actuator on the front, surrounded by a white plastic LED ring. On the back are 3 contacts for the button (common, normally-open, and normally-closed) and 2 contacts for the white LED ring (+ and -). The LED can be powered by 3 to 6V with a built-in resistor for safe illumination. For higher voltages like 12V or 24V, add a 470 ohm resistor in series to maintain a current around 20mA.

This is a momentary pushbutton: pressing it shorts the normally-open contact to common, and releasing it opens the contacts again. The switch and LED are separated for versatile wiring options.

• Drill hole diameter: 16mm
• Switch rating: 3A / 250VDC
• Switch contacts: 1 NO, 1 NC
• Material: Chrome plated brass
• Contact resistance: < 50 mOhm
• Insulation resistance: > 1000 Mohm
• Temperature range: -20°C to +55°C
• Mechanical life: > 500,000 cycles
• Electrical life: > 50,000 cycles
• Panel thickness supported: 1-13mm
• Operating pressure: 1.5 - 2.5 N
• Operating stroke: 2mm
• Lamp rated voltage: 6V
