Rugged Metal Pushbuttons On/Off Switch - Various Colors

These chrome-plated metal pushbuttons offer durability without sacrificing style. Designed as on/off switch buttons, pressing the button shorts the normally-open contact to the common contact and the button stays pressed. Pressing it again releases it, opening the contacts.

Available in Blue, Green, Red, White, and RGB variants. The buttons have a rugged chrome plated brass construction with excellent electrical characteristics.

• Drill hole diameter options: 16mm, 19mm, 22mm
• Switch rating: 3A / 250VDC
• Switch contacts: 1 Normally Open (NO), 1 Normally Closed (NC)
• Contact resistance: less than 50 mOhm
• Insulation resistance: greater than 1000 Mohm
• Operating temperature range: -20°C to +55°C
• Mechanical life: more than 500,000 cycles
• Electrical life: more than 50,000 cycles
• Panel thickness compatibility: 1-13mm
• Operating pressure: 1.5 - 2.5 Newtons
• Operating stroke: 2mm
• Lamp rated voltage: 6V

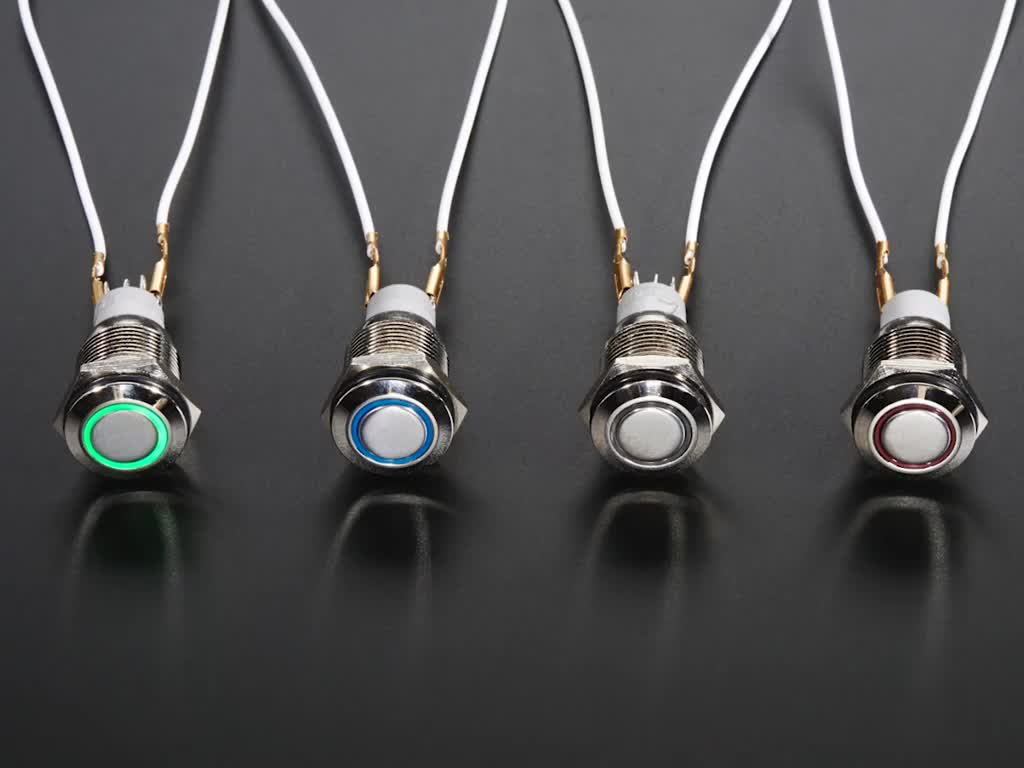

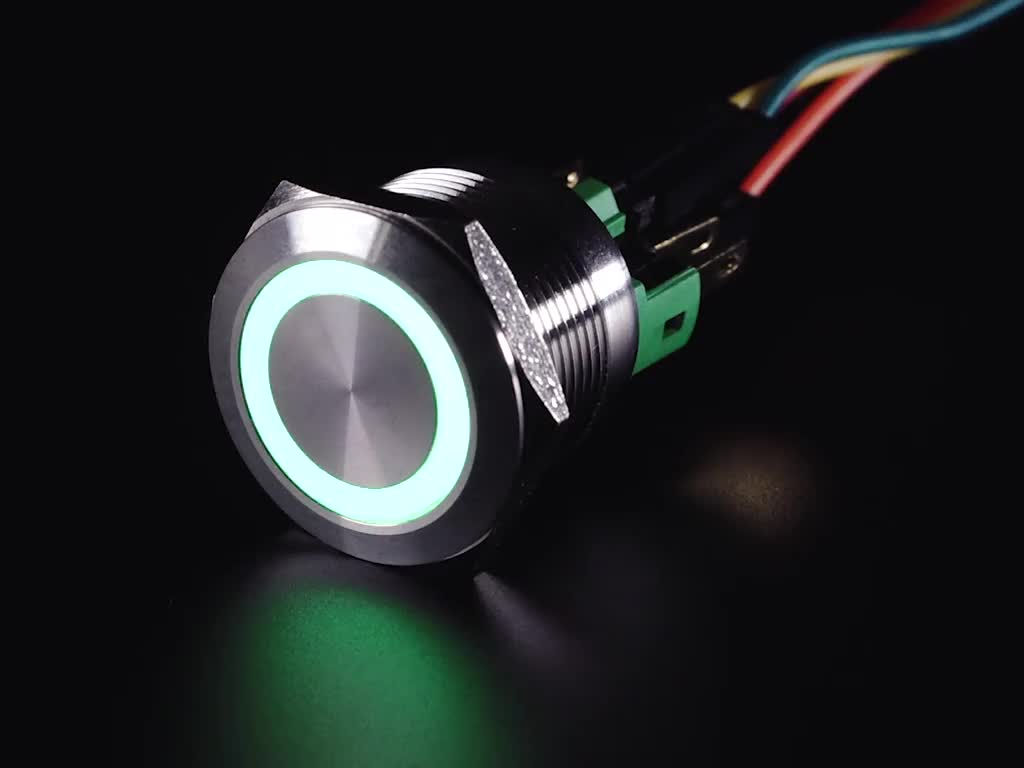

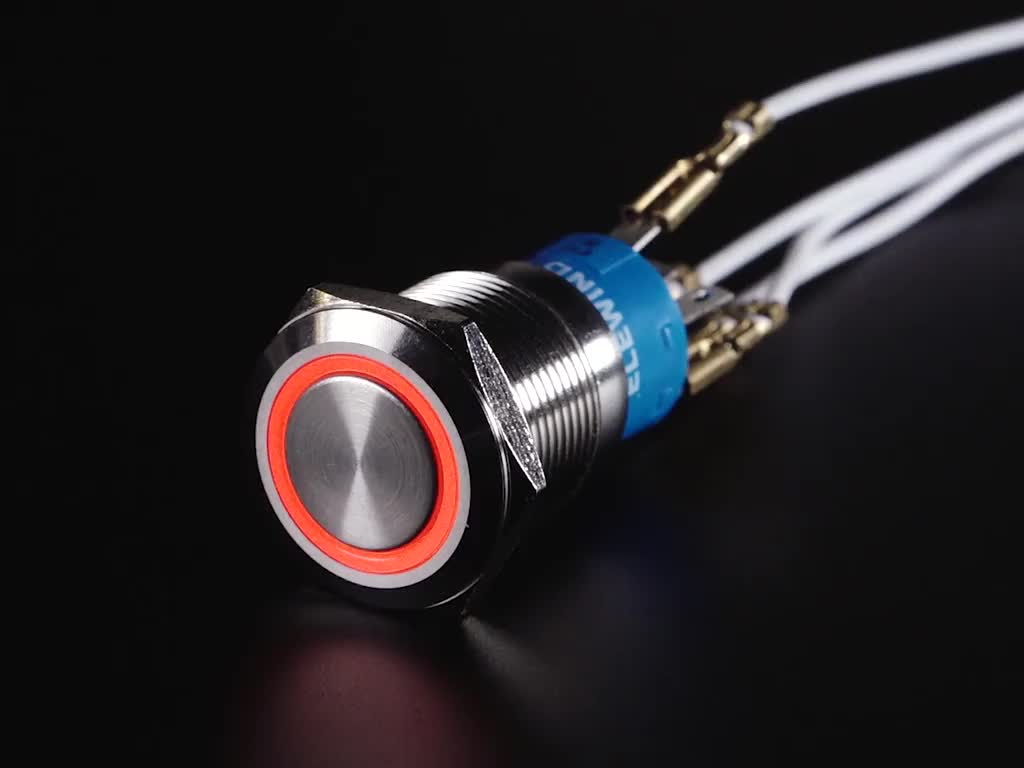

Multiple sizes and colors available, including versions with LED rings.
