SEGGER J-Link BASE JTAG/SWD Debugger

The SEGGER J-Link BASE is a professional JTAG/SWD debugger ideal for serious development on ARM-based platforms. It offers fast and efficient debugging capabilities for various ARM cores including ARM7/9/11 and Cortex series (A5, A8, A9, M0, M1, M3, M4, M7, R4), as well as support for Microchip PIC32 and Renesas RX series microcontrollers.

This J-Link debugger provides a vendor- and toolchain-neutral solution, supporting GDB-based debugging and integration with most major IDEs such as Keil, IAR, Atmel Studio, and others. It features unlimited breakpoints in flash memory, rapid download speeds up to 1 MByte/second, and supports multiple target interfaces including JTAG and SWD.

Additional features include:

• Direct download into flash memory of popular MCUs
• Cross-platform support on Windows, Linux, and Mac OS X
• Free software updates and one year of support
• Support for SWV/SWO (Serial Wire Viewer / Serial wire output)
• Target power supply with overload protection (up to 300 mA)
• Embedded Trace Buffer support and adaptive clocking
• Plug and play USB powered device, no external power supply needed

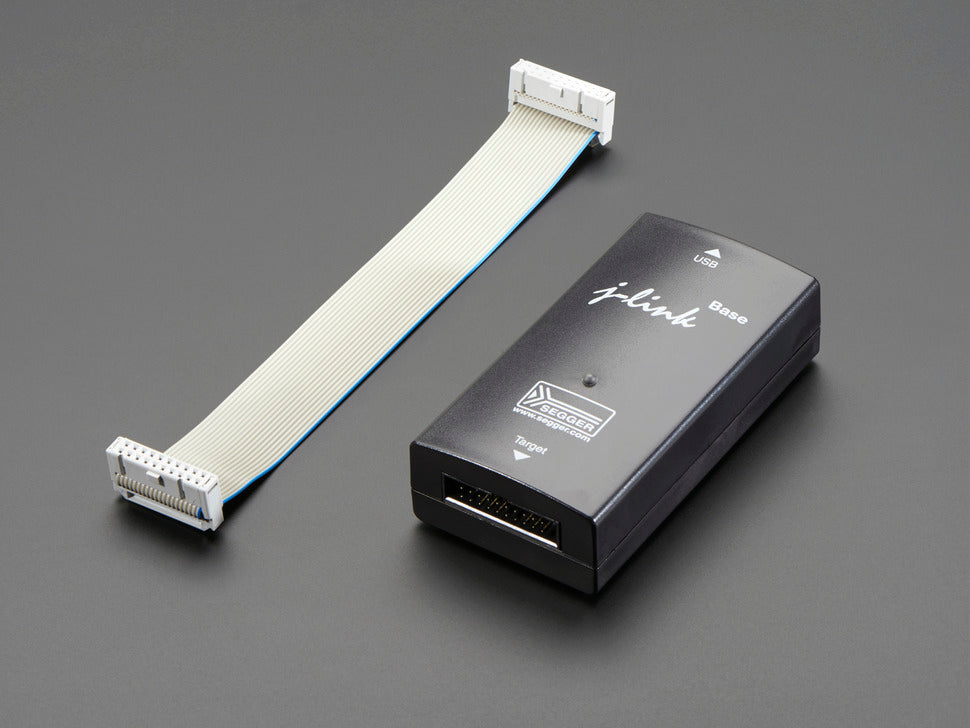

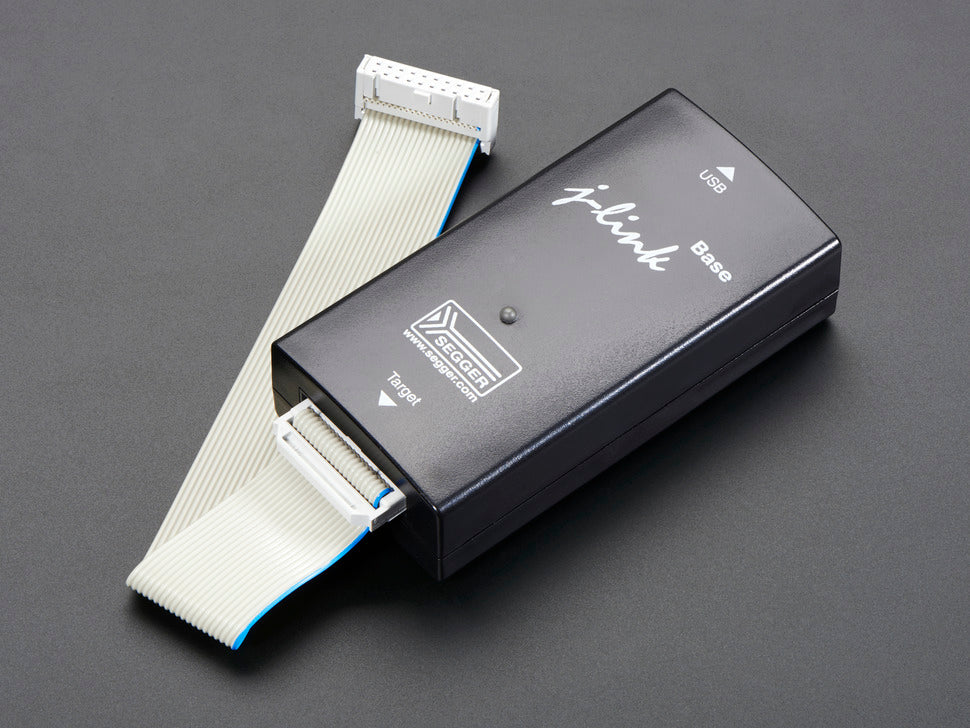

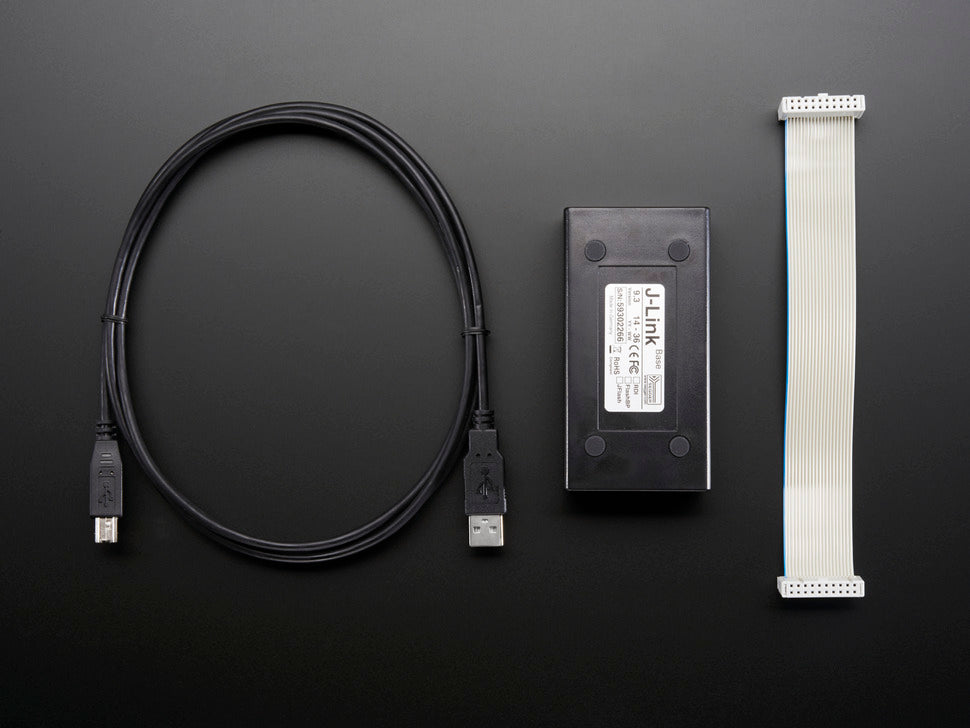

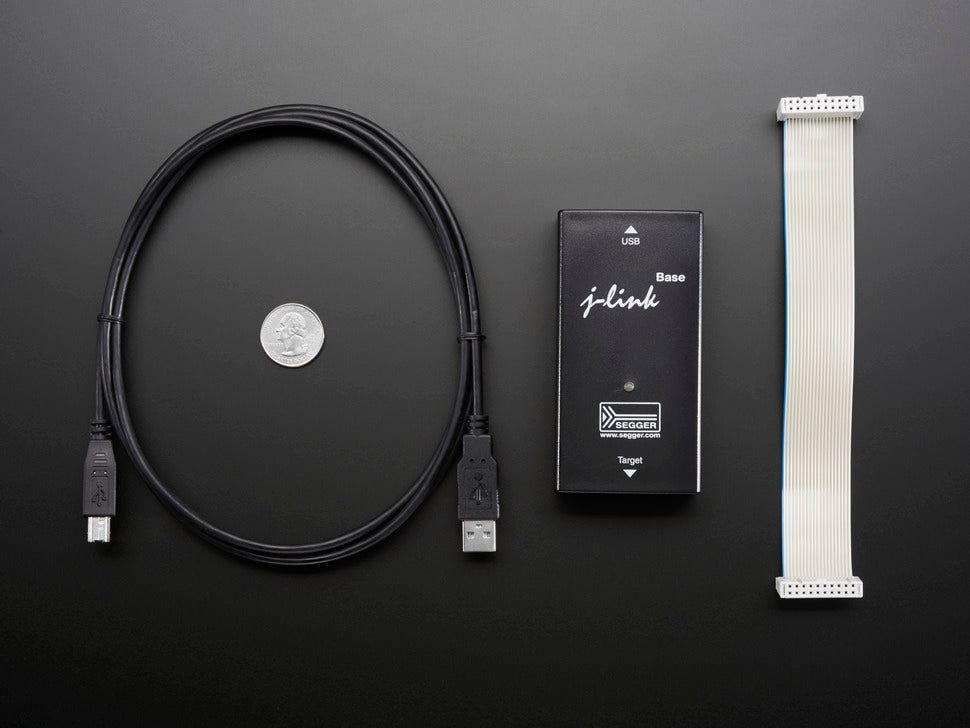

The package includes the J-Link BASE unit, a 20-pin 0.1" male connector ribbon cable, and a USB cable.
