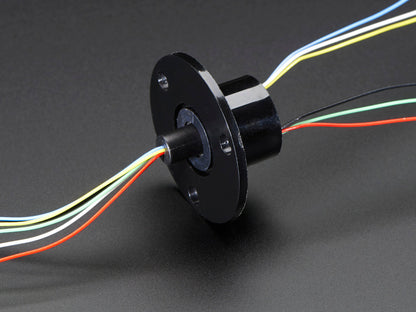

Slip Ring with Flange - 22mm Diameter, 6 Wires, Max 240V @ 2A

With a slip ring assembly, your electronics can now twist and turn safely. Add wheel encoders, 360 degree sensors, rotating LEDs, rotors and more! We've seen a lot of people DIY slip rings out of desperation but no longer, simply pick up one of these to solve any rotation needs you have.

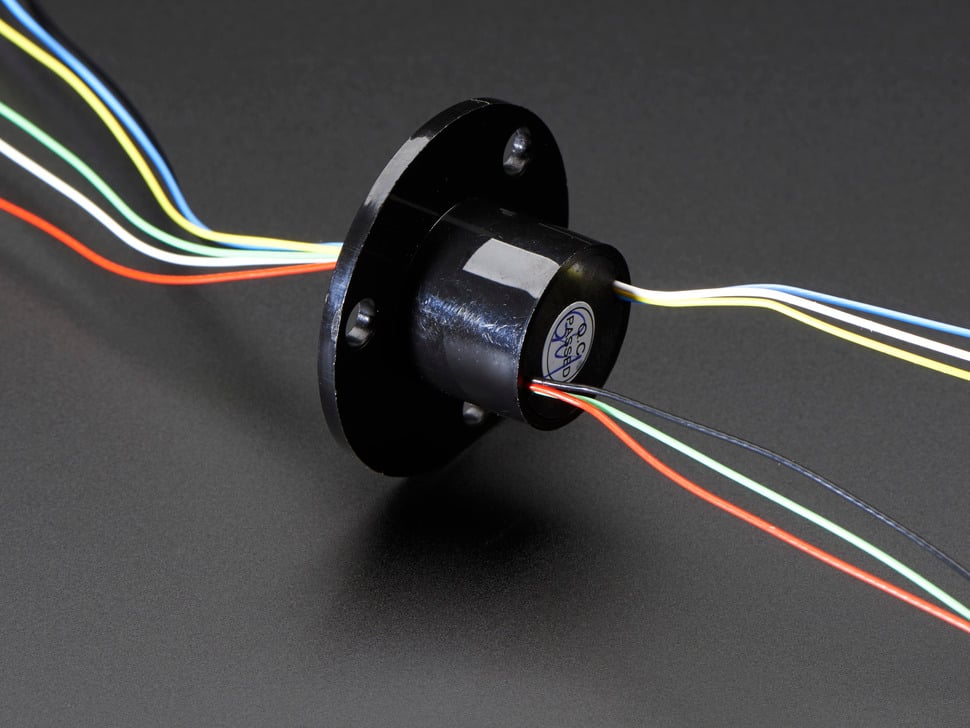

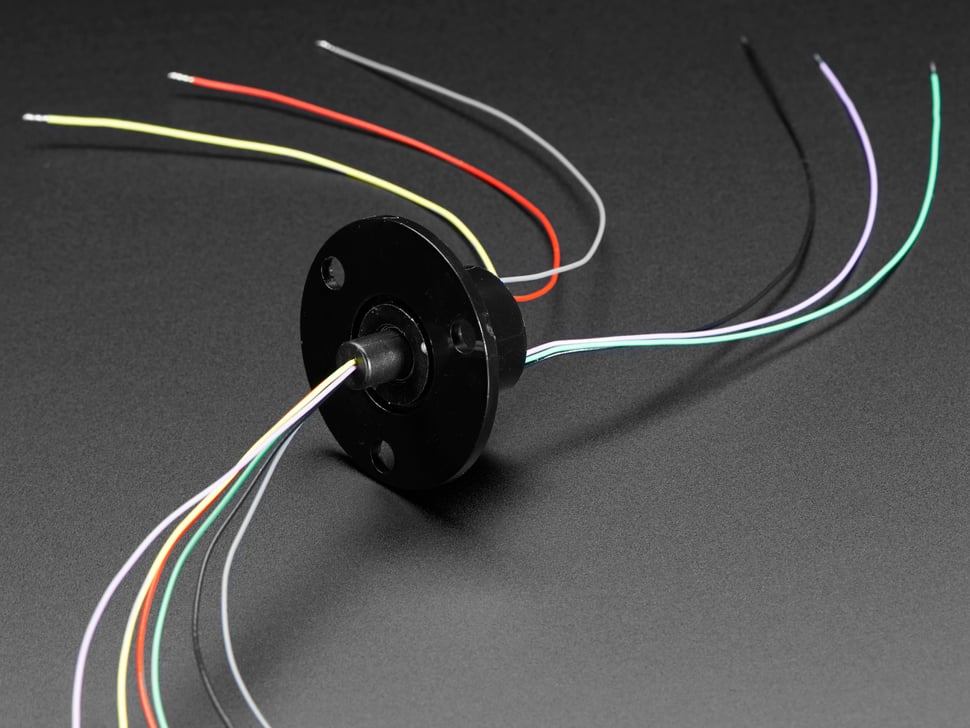

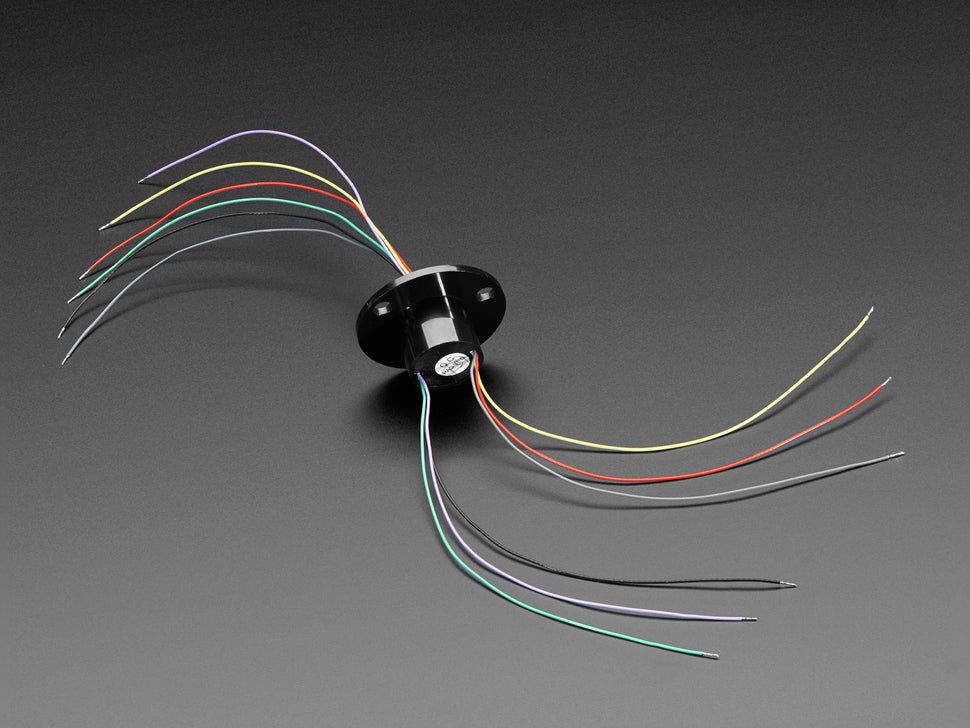

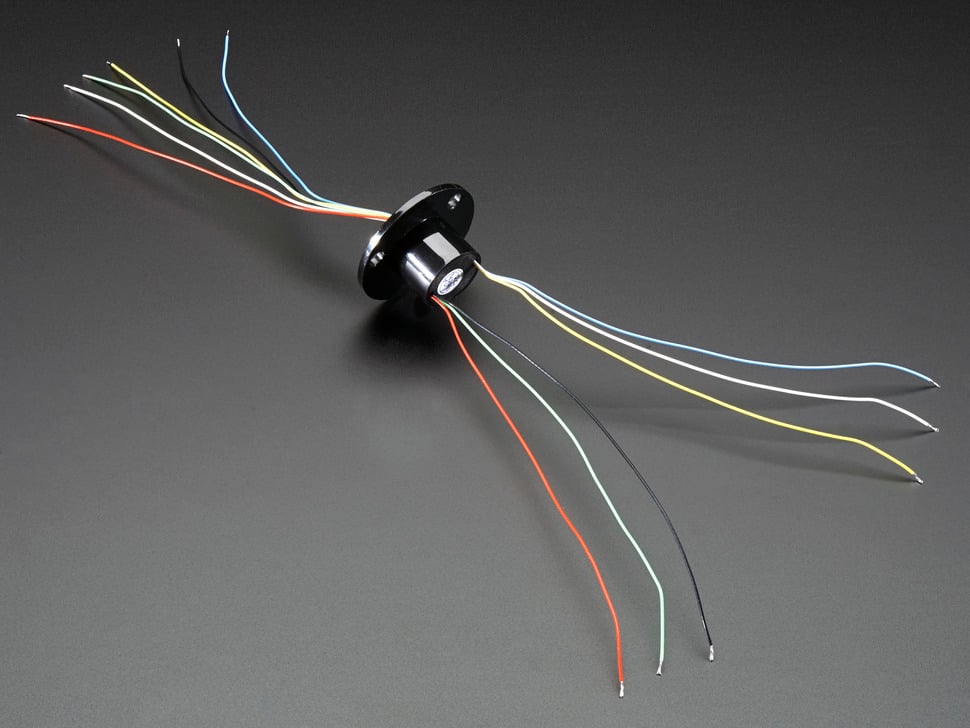

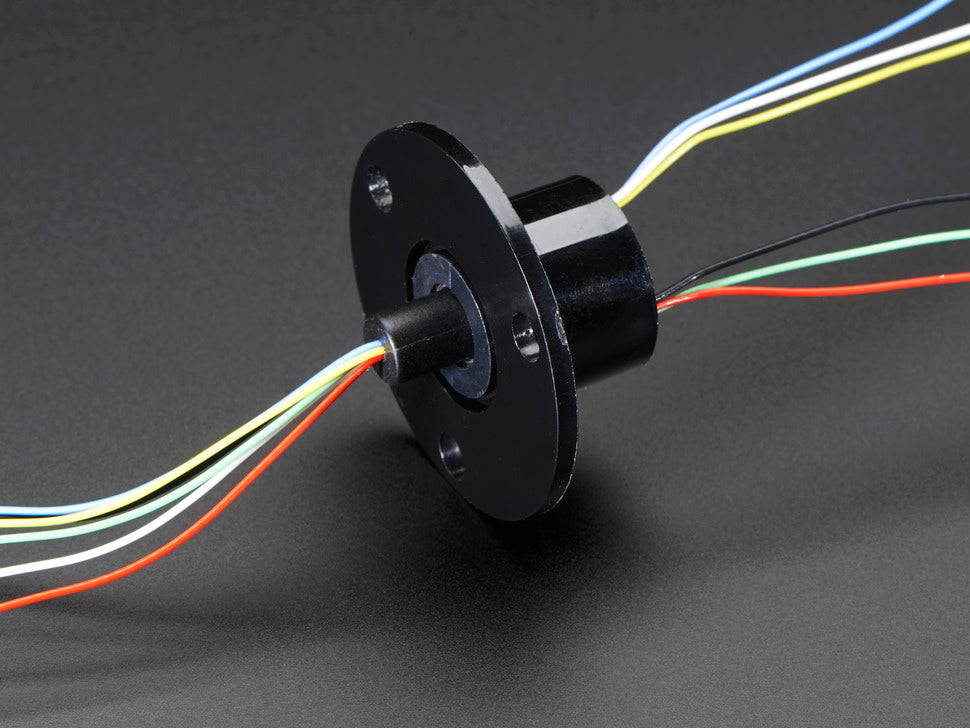

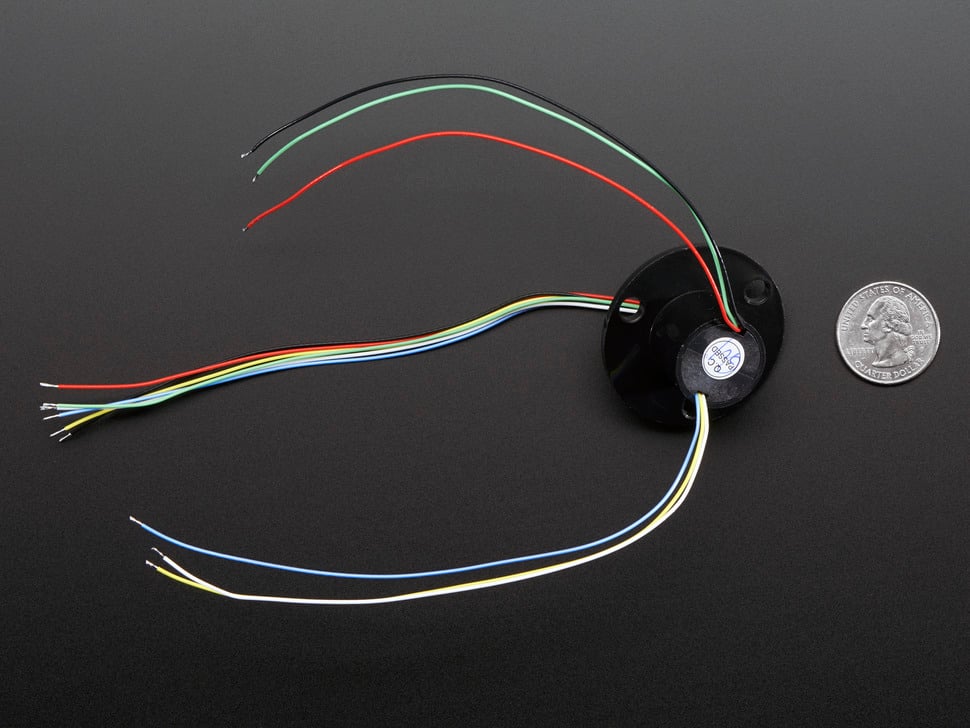

Inside the plastic tube is a gold plated slip ring for 6 wires. There are six color coded wire sets made of 26 AWG and no matter how you twist the assembly, they will remain in continuity. Each of the wire sets can carry up to 2A at up to 240VAC or 240VDC. There's a 44mm (1.7") diameter flange with mounting holes to make it easy to attach or you can cut it off with a hacksaw and drill/machine as you wish as it seems to be made of ABS plastic. Rated to rotate up to 300 RPM (but you can probably go faster if you don't mind a reduced life and/or noise).

Note: Wire colors may vary.

Features:

• Gold plated slip ring for 6 wires inside a plastic tube
• Six color coded 26 AWG wire sets
• Each wire set carries up to 2A at 240VAC or 240VDC
• 44mm (1.7") diameter flange with mounting holes
• Rated up to 300 RPM rotation speed
• Flange can be removed or modified as needed

Technical Details:

• Rated voltage: 240VAC/240VDC
• Rated current: 2 Amp
• 6 x 6" long 26 AWG wires

For complete specifications, see the datasheet for the SRC022A-6.
