SmartMatrix SmartLED Shield (V4) for Teensy 3

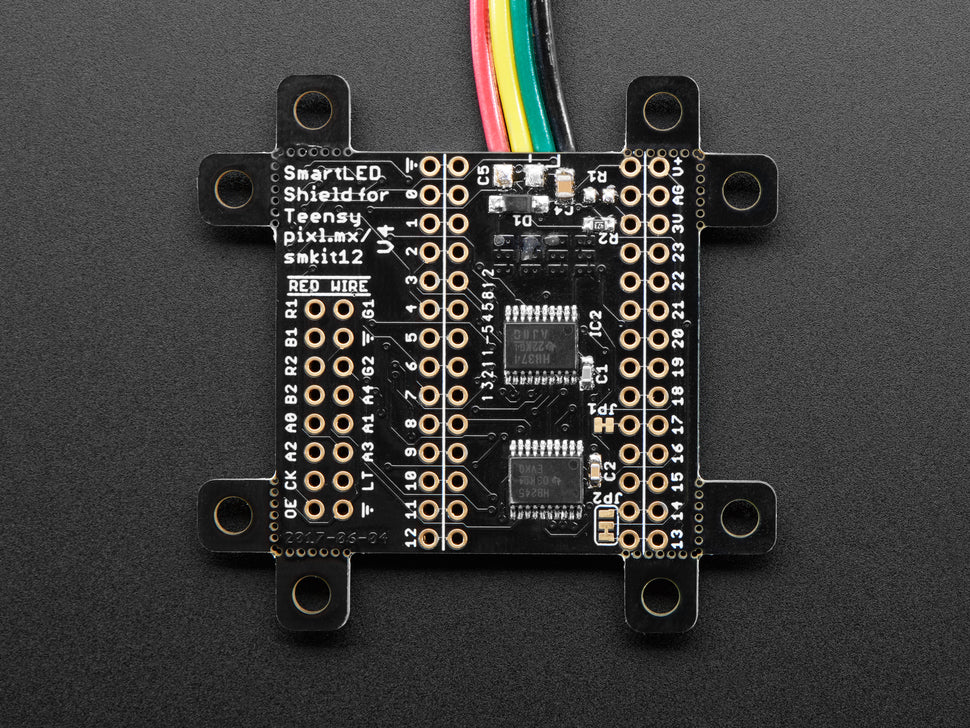

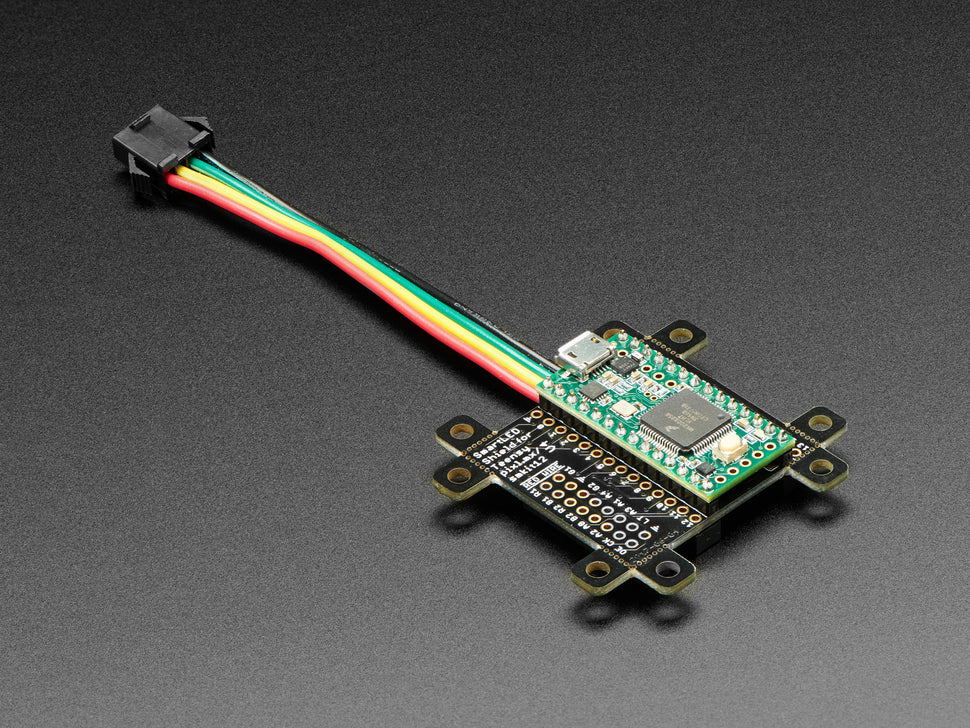

The SmartMatrix SmartLED Shield (V4) for Teensy 3.2, 3.5, or 3.6 is an easy-to-use shield designed to connect your Teensy board to RGB LED Matrix panels with minimal soldering required. Perfect for creating stunning LED matrix displays and animations, it supports 64x64 pixel displays with the latest library version and includes 5V level shifters for compatibility with 5V panels.

• Fully assembled shield with no soldering needed except pins for Teensy

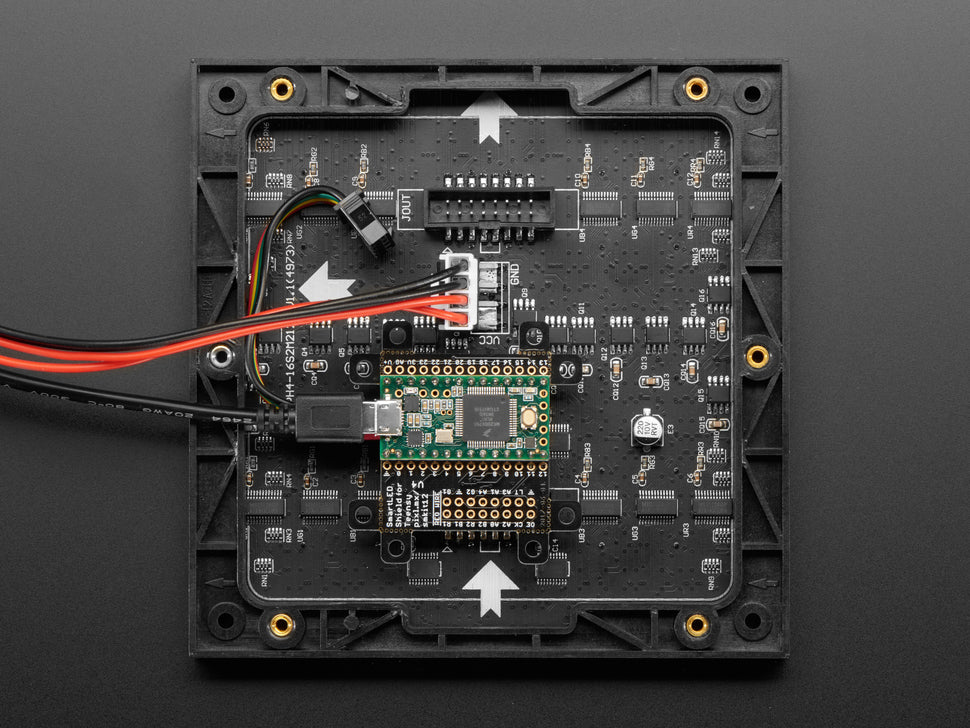

• HUB75 pinout for direct connection or via panel ribbon cable
• Includes 5V level shifters for 5V LED panels
• Supports driving Dotstar/APA102 LEDs in parallel
• Expansion rows for Teensy pins useful in prototyping

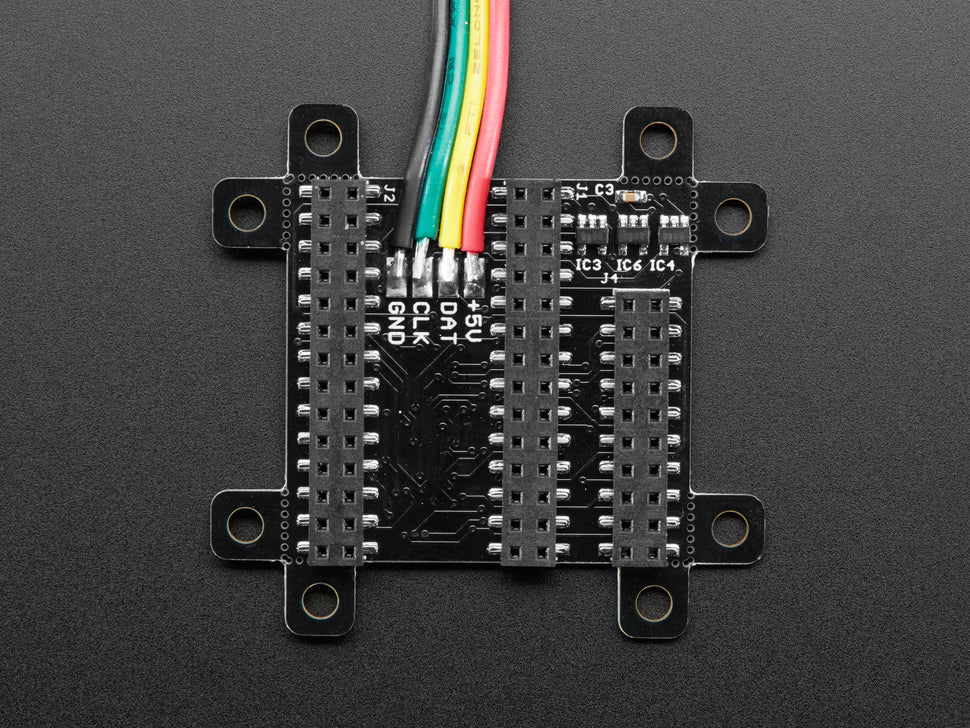

• Teensy is easily removable from the shield
• Latest library supports 5 address pins for large 64x64 displays

Note: MicroSD card slot removed as redundant with Teensy 3.5/3.6. Programming with SmartMatrix library is required to use the shield.

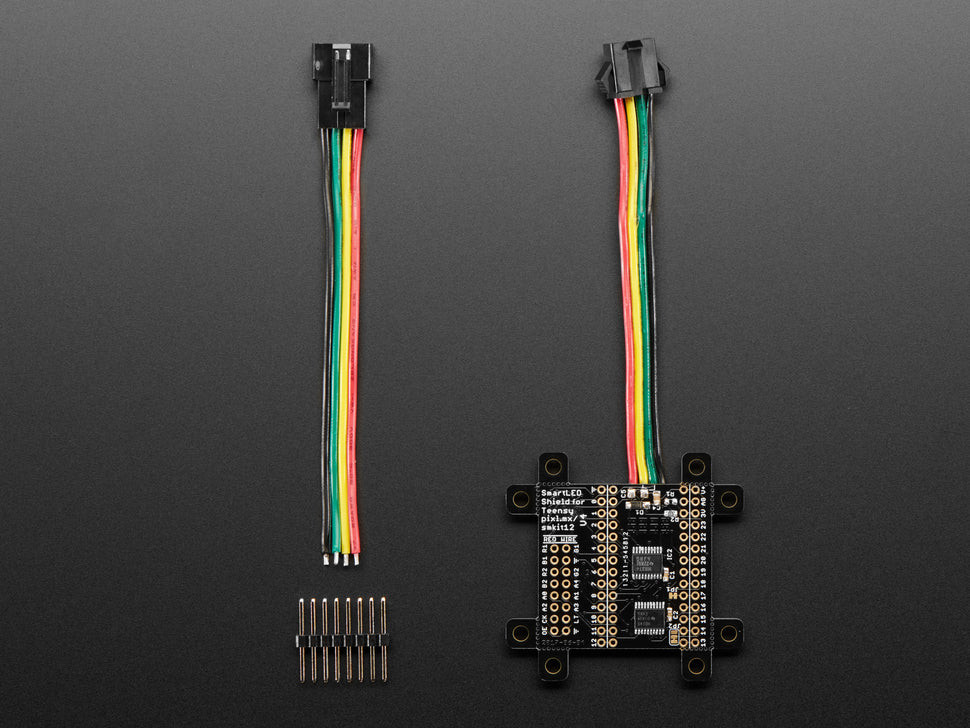

Kit contents:
SmartLED Shield V4, Male 4-pin JST SM Cable (10cm), 2x8 Extra Long Pin Header.

Dimensions and Weight: 52mm x 49mm x 6mm, 12g (board only), 22g with header and cable.
