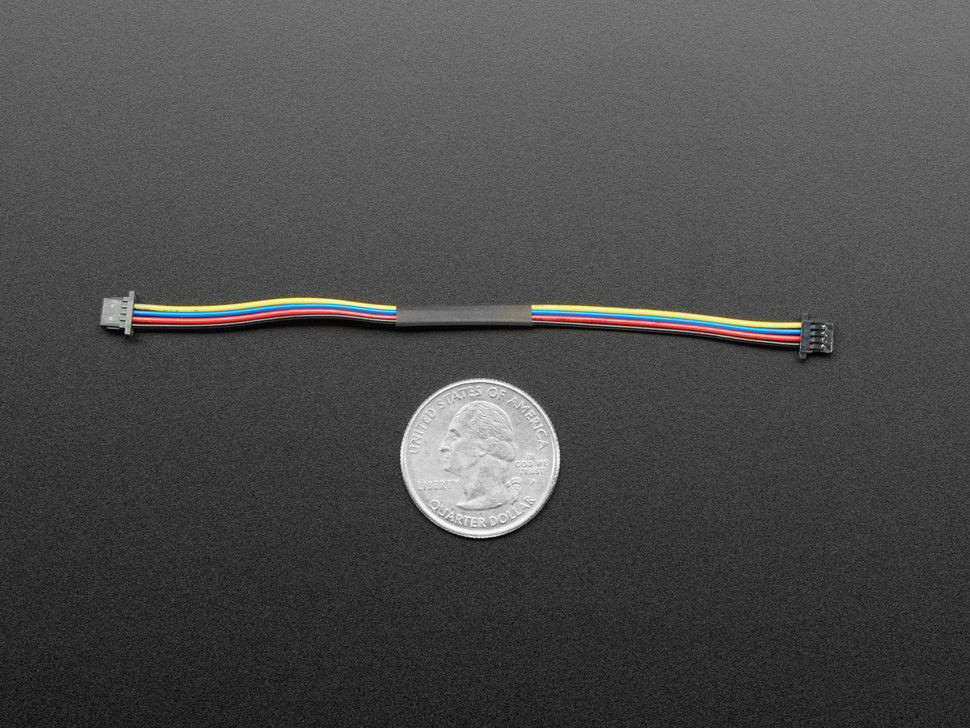

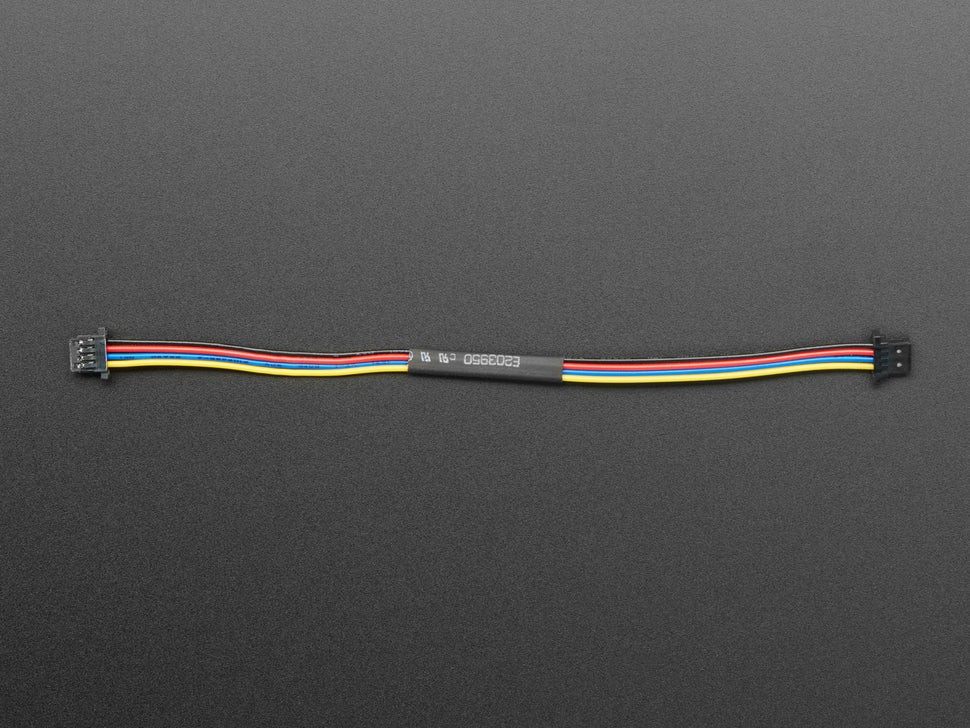

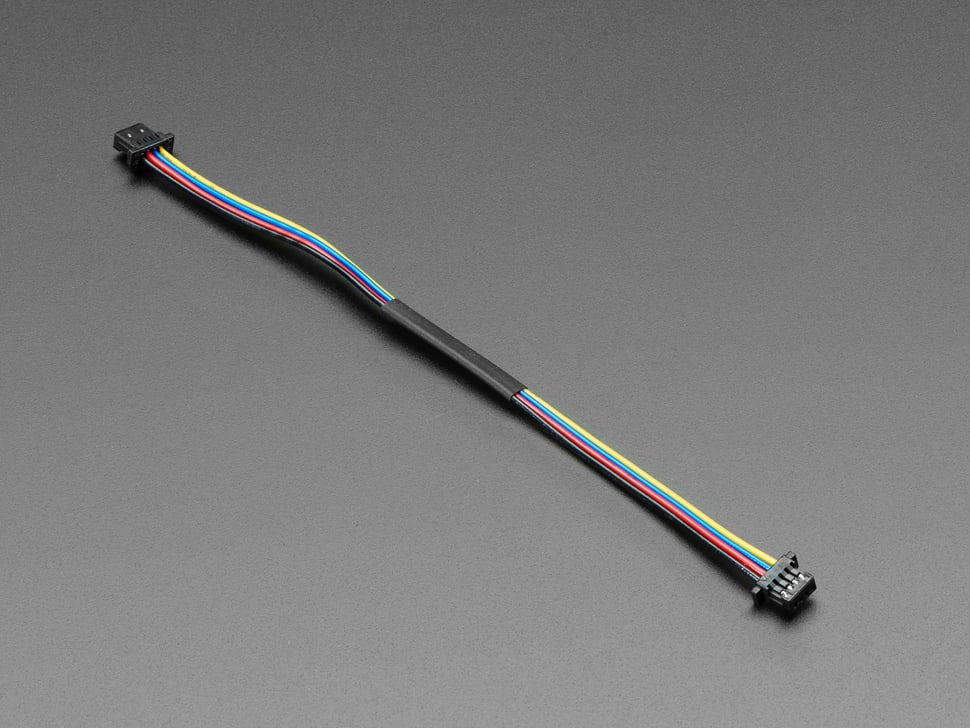

STEMMA QT / Qwiic JST SH 4-pin Cable - 100mm Long

This 4-wire cable is a little over 100mm / 4" long and fitted with JST-SH female 4-pin connectors on both ends. Compared with the chunkier JST-PH, these are 1mm pitch instead of 2mm, but still have a nice latching feel, while being easy to insert and remove.

This cable can be used with Qwiic boards to easily connect sensors and drivers from one board to the other. The cables are made symmetrically so don't worry about which side goes where!

• Red - 3.3VDC Power
• Black - Ground
• Blue - I2C SDA Data
• Yellow - I2C SCL Clock

For more information about JST SH connectors, visit the JST website.
