STEMMA QT / Qwiic JST SH 4-Pin Cable - 200mm Long

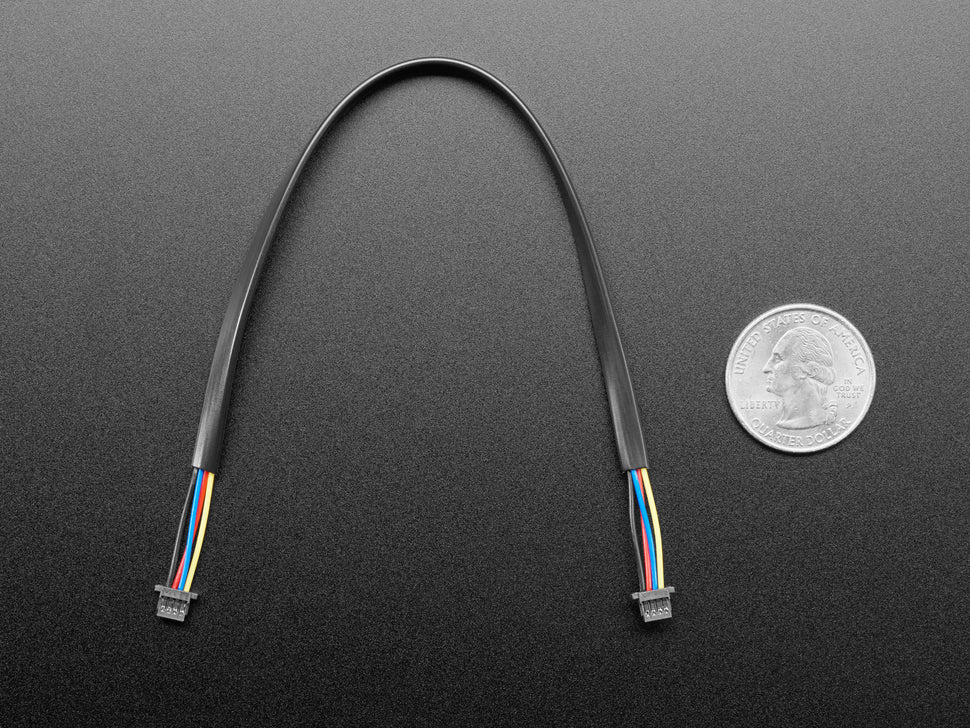

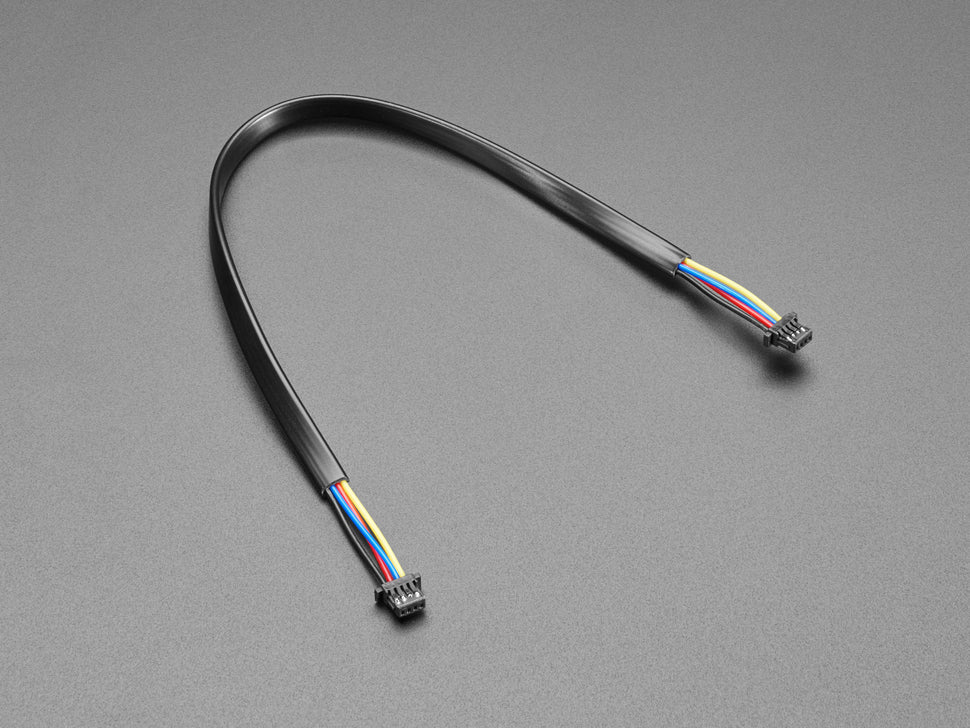

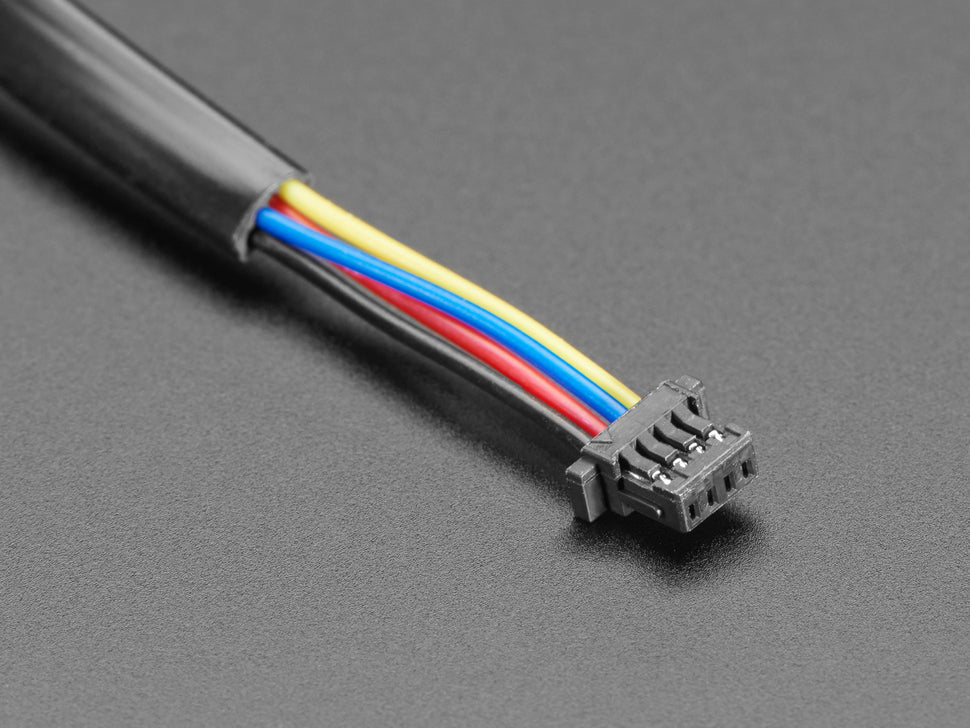

This 4-wire cable is approximately 200mm (7.8") long and features JST-SH female 4-pin connectors on both ends. Compared to the larger JST-PH connectors, these have a 1mm pitch rather than 2mm, and offer a secure latching feel while being easy to connect and disconnect.

The cable is fully sheathed (as of May 24, 2022 revision) and can be used with Qwiic or STEMMA QT boards to easily connect sensors and drivers between boards. The cable is symmetrical, so either end can be connected without concern.

• Black wire: Ground (GND)
• Red wire: Voltage (V+) - 3.3V for Qwiic boards, 3 to 5V for STEMMA QT
• Blue wire: SDA (Data line)
• Yellow wire: SCL (Clock line)

Ideal for I2C connections using STEMMA QT or Qwiic compatible devices.

For more information on JST SH connectors, visit the JST website. Explore all STEMMA QT options including various lengths and connector types here.
