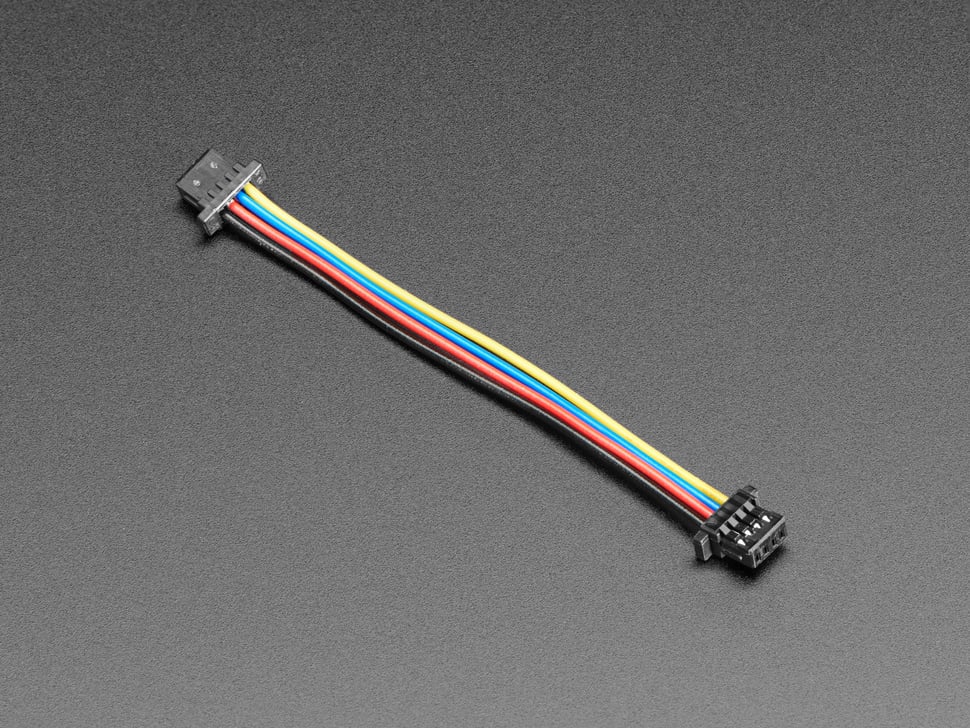

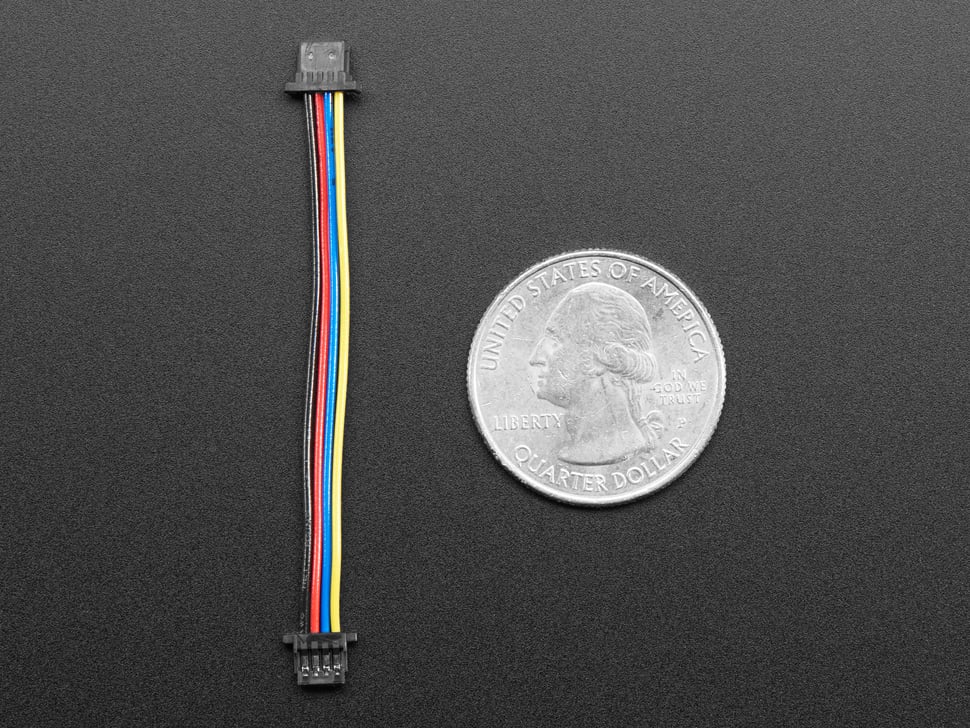

STEMMA QT / Qwiic JST SH 4-Pin Cable - 50mm Long

This 4-wire cable is 50mm (1.9 inches) long and fitted with JST SH female 4-pin connectors on both ends. Compared with the larger JST PH connectors, these have a 1mm pitch instead of 2mm, offering a secure latching feel while remaining easy to insert and remove.

The cable is compatible with Qwiic or STEMMA QT boards, allowing you to easily connect sensors and drivers from one board to another. The cables are symmetric, so they can be connected in either orientation without worry.

• Black wire: Ground (GND)
• Red wire: V+, 3.3V for Qwiic boards, or 3 to 5V for STEMMA QT boards
• Blue wire: SDA
• Yellow wire: SCL

For more information about JST SH connectors, visit the JST website.

Explore our full range of STEMMA QT products, including various lengths and connectors here.
