Teensy-LC (Low Cost) 32-bit Microcontroller Board Without Pins

The Teensy-LC (Low Cost) is a powerful 32-bit microcontroller development board that offers a rich set of hardware peripherals at an affordable price point. Featuring an ARM Cortex-M0+ processor running at 48 MHz, 62 KB of Flash memory, 8 KB RAM, and a total of 27 digital input/output pins, it is designed to simplify modern electronic projects.

Key Features include:

• ARM Cortex-M0+ Processor at 48 MHz delivering efficient 32-bit computing power.
• Large memory with 62 KB Flash and 8 KB RAM for versatile applications.
• Extensive communication protocols: 3 Hardware Serial ports, 2 SPI ports, 2 I2C ports, and USB support.
• High-resolution 12-bit analog input with 13 analog input pins and true 12-bit analog output DAC on one pin.
• Seven hardware timers for advanced timing and PWM functions.
• 5V buffer output tailored for WS2812/NeoPixel LED projects, simplifying LED control.

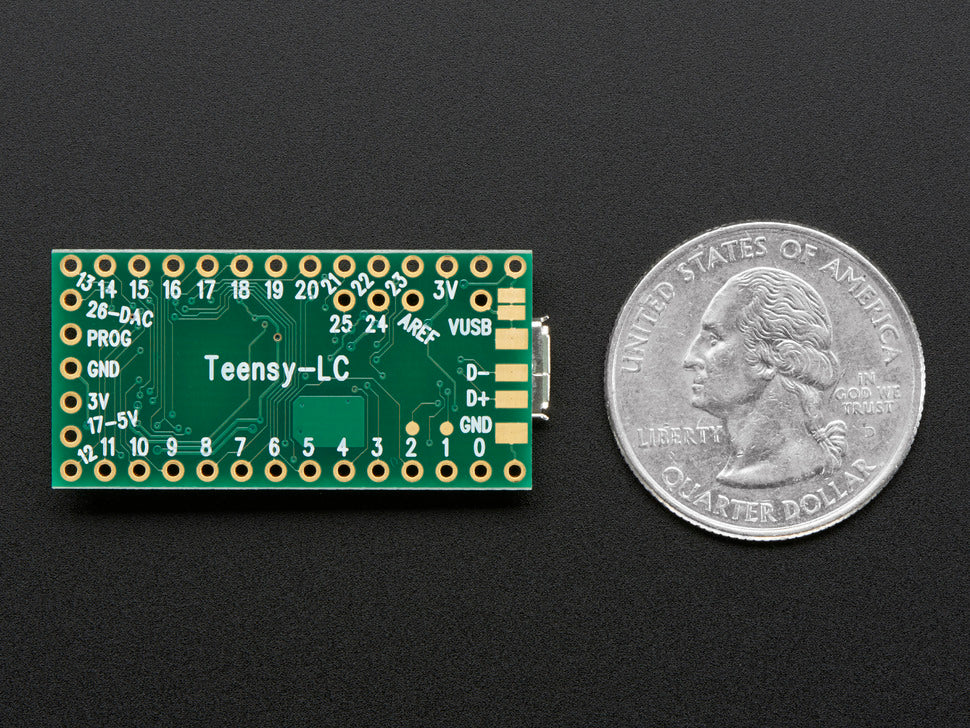

• Compact size (18mm x 37mm x 4mm) and light weight (2.6g), matching Teensy 3.1 form factor.
• Supported USB protocols including USB Serial, MIDI, Keyboard, Mouse, Joystick, and RawHID for flexible connectivity.

The Teensy-LC is ideal for Internet of Things (IoT) projects, wearable devices, and other electronics that require a capable yet inexpensive microcontroller. It supports popular Arduino libraries due to its multiple high-resolution timers and extensive hardware serial capabilities.

Note: This product is no longer stocked. Consider the PJRC Teensy 4.0 USB Development Board as a modern alternative.
