Terminal Block Breakout Module for Raspberry Pi Pico - Screw Mount Version

This Terminal Block Breakout Module is designed for makers and designers who prefer using terminal blocks for wiring their projects. Ideal for industrial or robotics projects with extensive wiring, this breakout PCB connects to your Raspberry Pi Pico and comes with a plastic enclosure featuring screw-mount nubs at each end for easy surface attachment.

Simply place your assembled Raspberry Pi Pico with headers attached onto the socket headers, unscrew the terminal blocks, and insert your stranded or solid-core wires into the clearly labeled terminal blocks.

Includes:

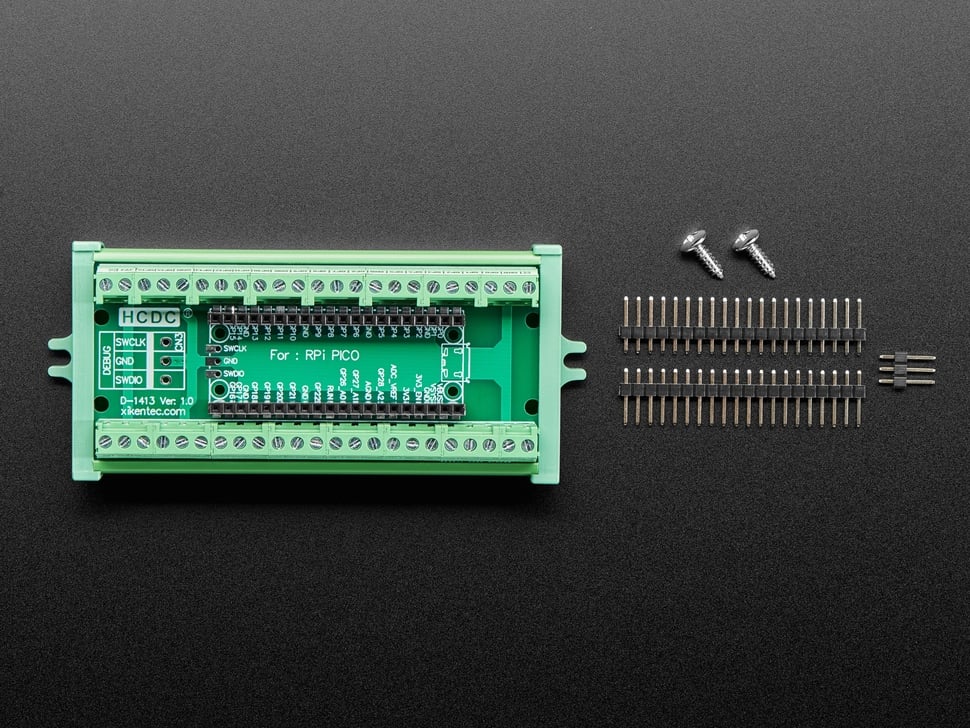

• 1 x Breakout module
• 2 x M3 10mm wood screws
• 2 x 20-pin 2.54mm pitch header
• 1 x 3-pin 2.54mm pitch header (for debugging)

Note: Raspberry Pi Pico is not included.

Technical Details:

• PCB mount Terminal Block with 5.0mm (0.197") pitch
• Screw strip length 7mm - M2.5, steel, Cr3+ Zn plated
• Wire range: 28AWG to 12AWG / 2.5mm square
• FR-4 fiberglass PCB with dual copper layers

View diagram
