Thru-hole 5-way Navigation Switch

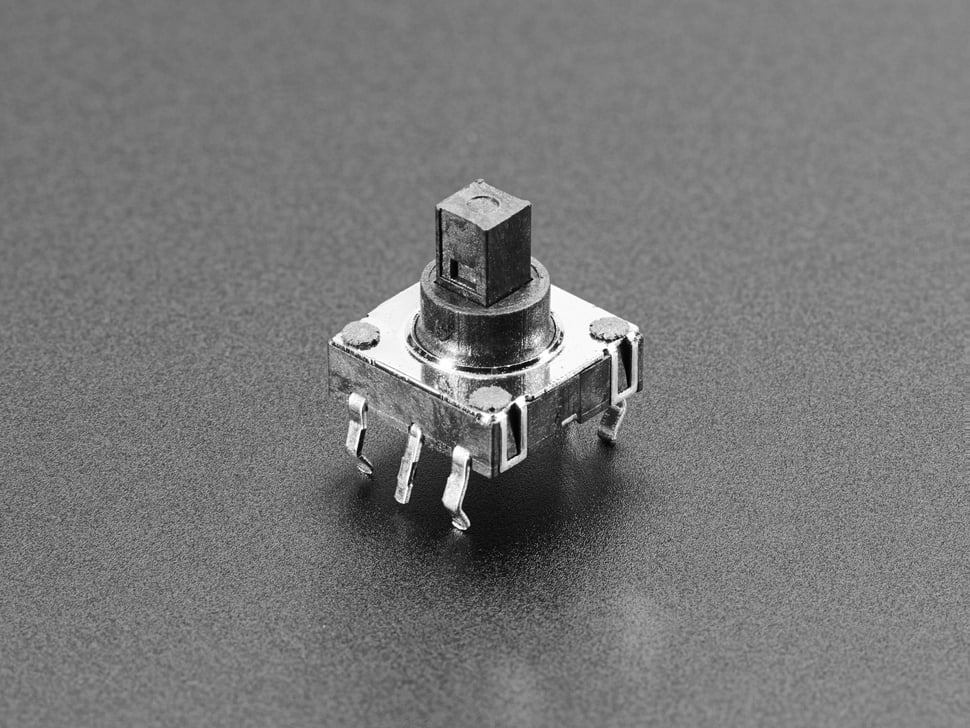

This navigation switch provides an intuitive way to add 5 button inputs with a single component. It includes five switches: left, right, up, down, and 'select' (pressing down), all sharing a common ground pin. The package is not exactly on a 0.1" grid, but it can be pushed into a breadboard with some bending and snaps in nicely.

It is compatible with a rubber cap (product ID 4697) that fits onto this joystick for comfortable use.

• 5 directions: up, down, left, right, select (center press)
• Common ground pin
• Thru-hole mounting

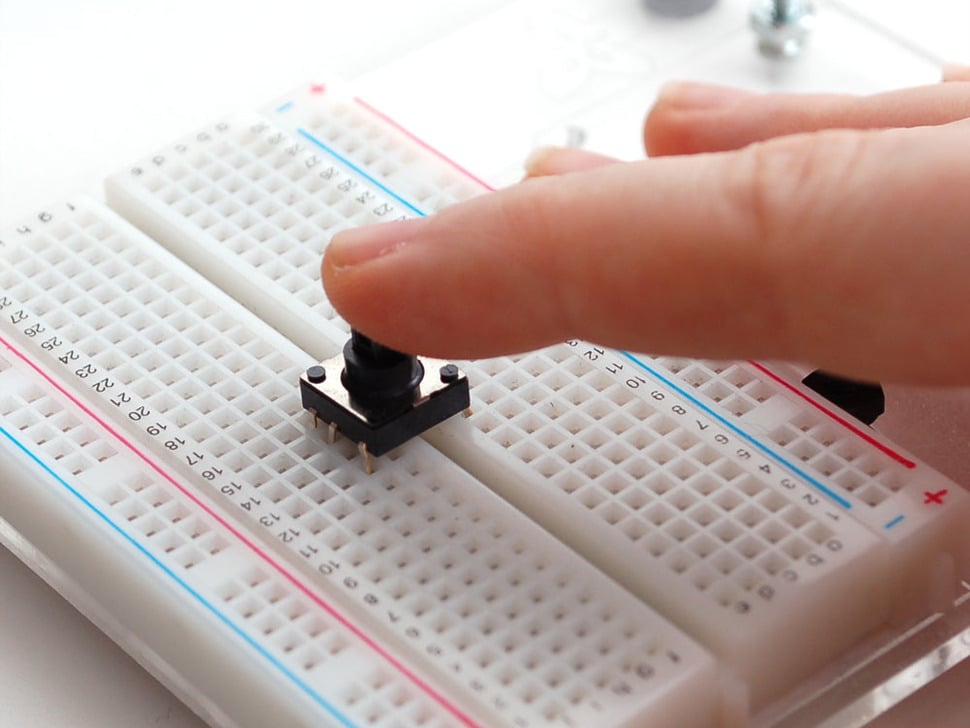

• Compatible with breadboards with slight bending

For more information, see the Datasheet for similar part SKQUCAA010.
