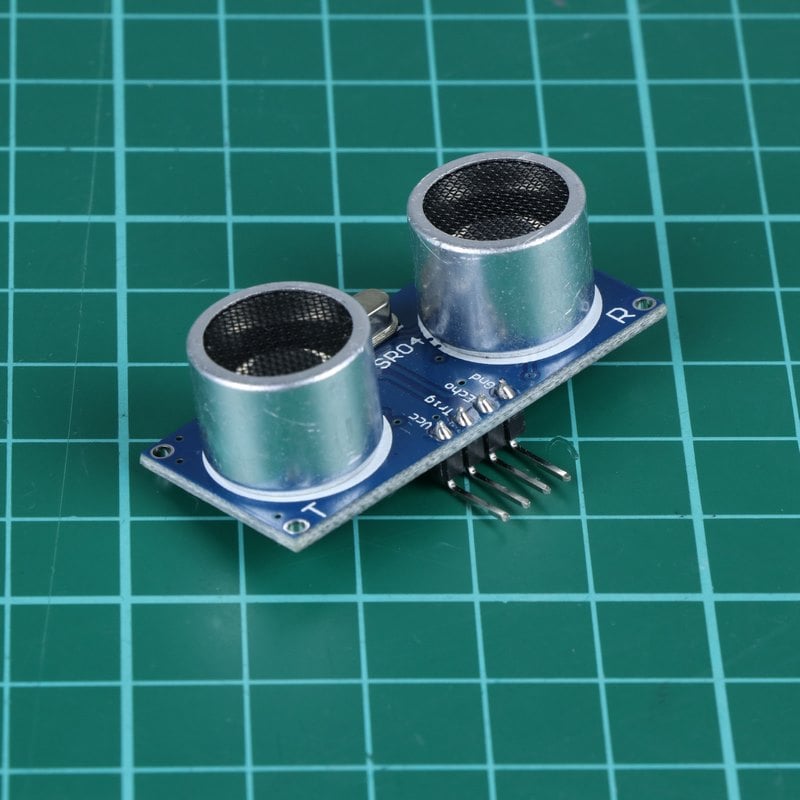

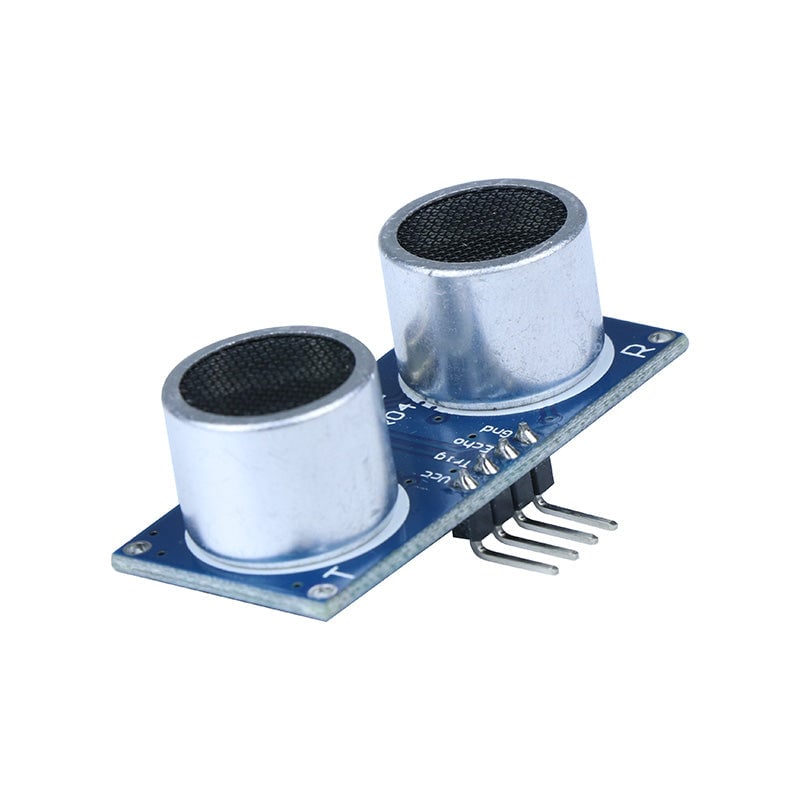

Ultrasonic Distance Sensor HC-SR04 3-5V Version

Add obstacle detection to your robotics, electronics, or Arduino project with the HC-SR04 Ultrasonic Distance Sensor. Designed specifically for 3-5V operating voltages, it is compatible with typical Arduino voltage ranges.

This economical sensor provides non-contact distance measurement from 2cm up to 400cm with a ranging accuracy of 3mm. Each module includes an ultrasonic transmitter, receiver, and control circuit.

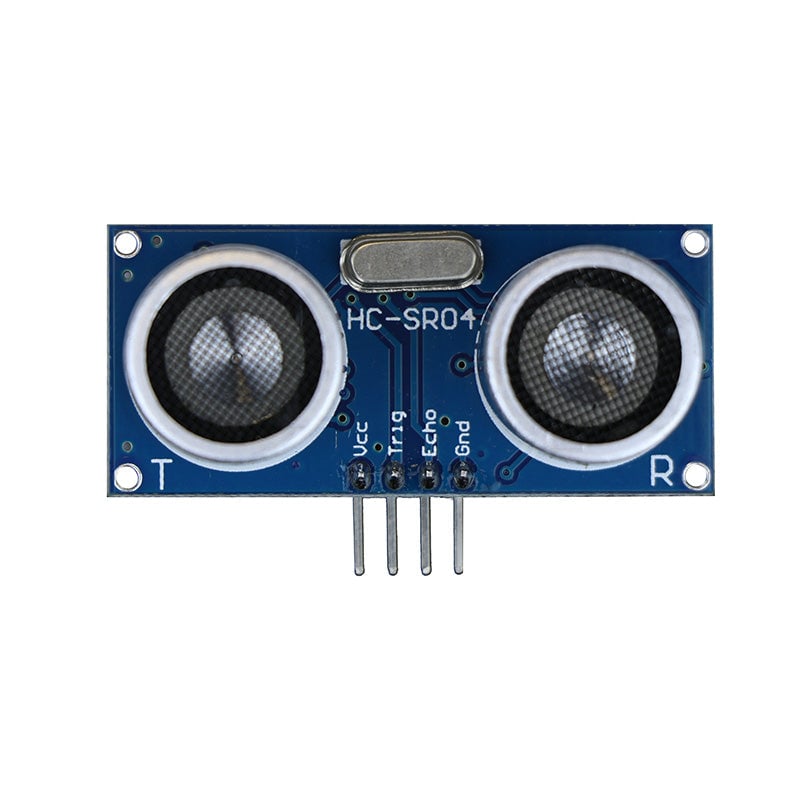

The sensor has four pins: VCC (power), GND (ground), Trig (trigger signal), and Echo (echo signal). It is also usable with BBC micro:bit projects if powered by a separate 5V power supply.

Features:

• Add obstacle detection to robotics, electronics, or Arduino projects.
• Compatible with micro:bit when using a separate 5V power supply.
• Non-contact measurement range from 2cm to 400cm.
• Ranging accuracy up to 3mm.

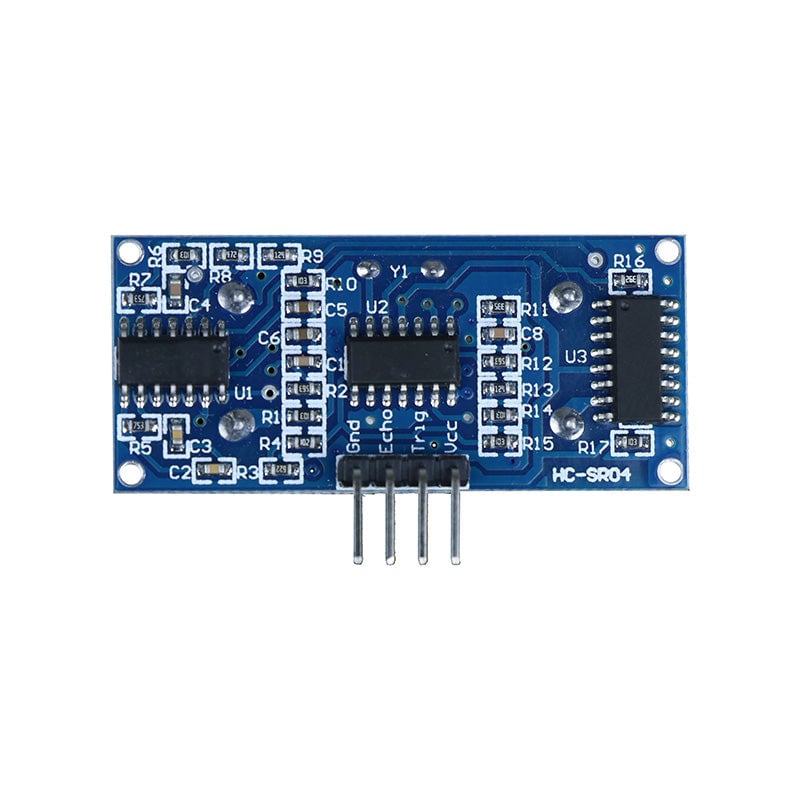

• Includes ultrasonic transmitter, receiver, and control circuit.
• 4 Pin interface: VCC, Trig, Echo, GND.

Contents:

• 1 x HC-SR04 Ultrasonic Ranging Sensor

Dimensions:

• Length: 45mm
• Width: 20mm
• Max Height: 15mm
• Pin Pitch: 2.54mm

Technical Information:

• Operating Voltage: 5V DC
• Operating Current: 15mA
• Measure Angle: 15 degrees
• Ranging Distance: 2cm - 4m
• Input Trigger Signal: 10µS TTL Pulse
