USB C Jack to USB C Jack Round Panel Mount Adapter

If you need to add a panel-mount connection for USB C, but don't have the time or tools to cut a custom oval or square hole, this USB C Jack to USB C Jack Round Panel Mount Plug is the easiest and fastest way to panel-ify your project.

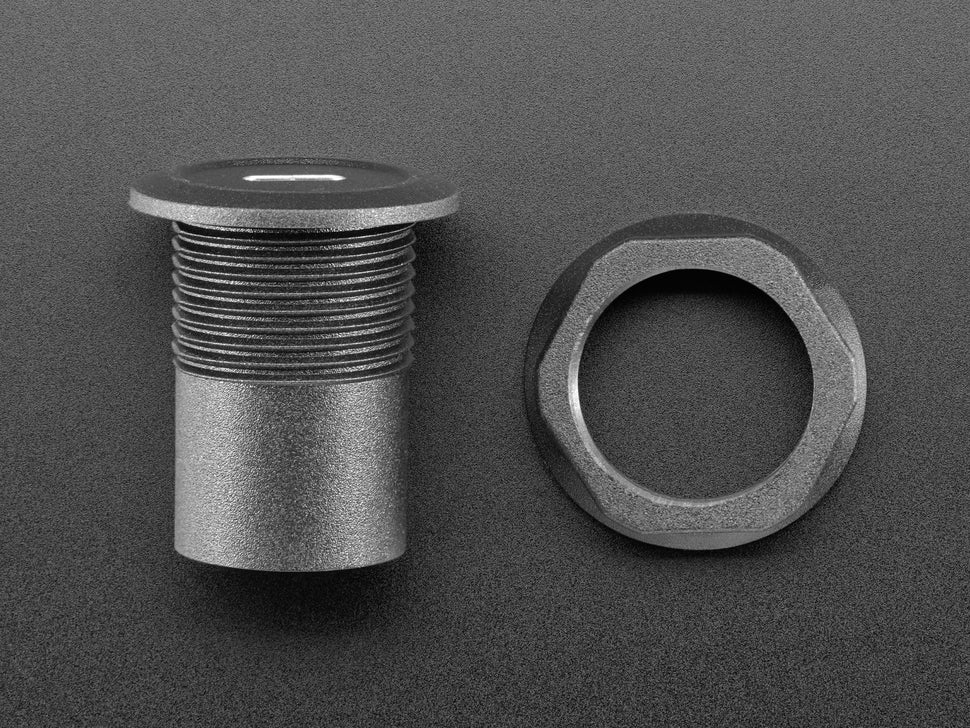

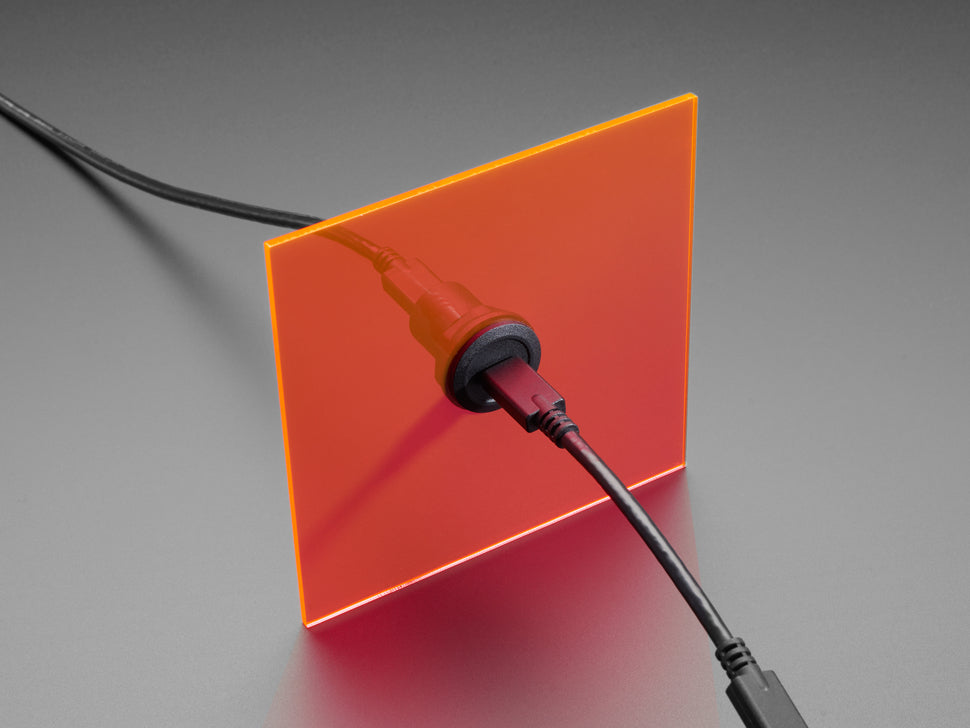

With a diameter of about 30mm, you can drill a simple round hole in wood, plastic, or metal using a common hole-saw or drill bit—no special shapes or filing required. Simply unscrew the plastic nut, insert the plug, and re-attach the nut to secure it in place. This creates a convenient panel mount USB C jack.

This adapter features USB C connections on both the inner and outer sides, acting as a pass-through for power, data, and both host or peripheral connections. Please note, due to the USB C reversibility design, this connector will only work in one orientation direction; if connection fails, try flipping the cable.

It is designed to attach easily to panels up to 16mm thick (0.625 inches) but can also be used with thinner panels.

• Easy panel mounting with standard drill hole

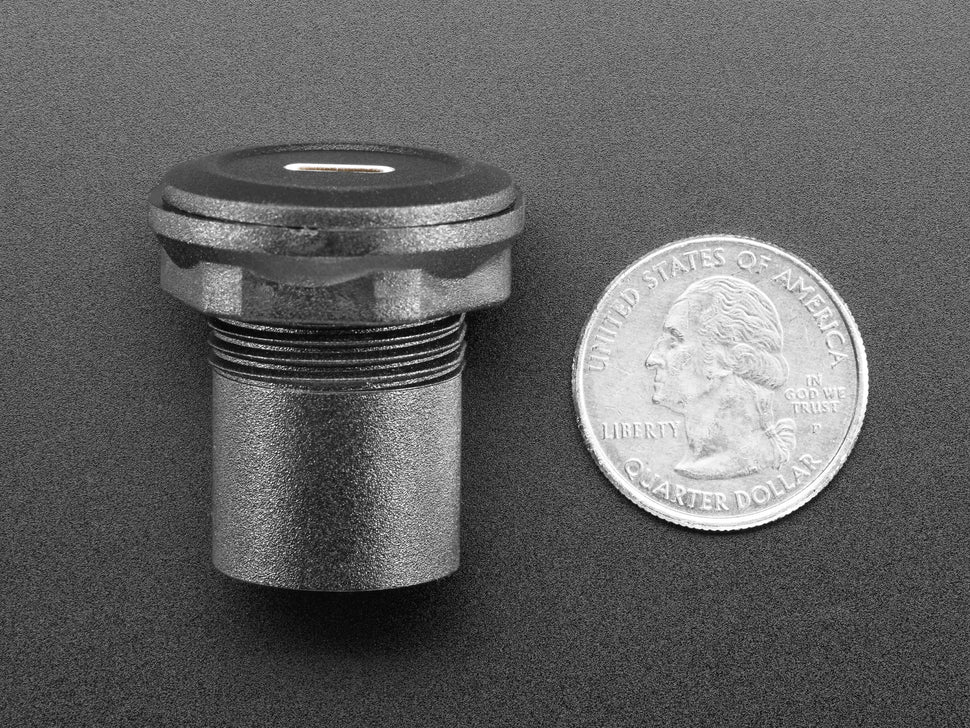

• Round 30mm diameter for simple installation
• USB C pass-through for power and data
• Suitable for panels up to 16mm thick
• Compact, solid body with plastic lip to hide drill hole

For a USB C panel mount adapter without orientation issues, consider our USB C panel mount with cable adapter.
