USB Type C Screw Panel Mount to 6 pin JST PH Cable

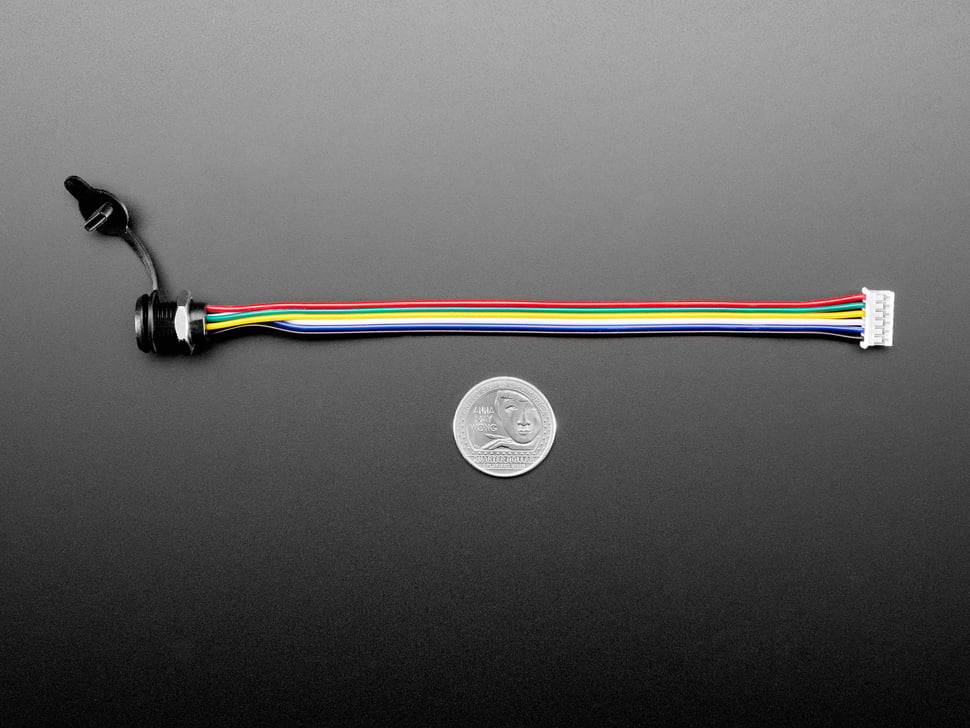

This panel mount cable is perfect for making USB Type C connections with a panel-mount setup. It features a small panel-mount USB C connector on one end and a 6-pin JST PH cable on the other for easy integration.

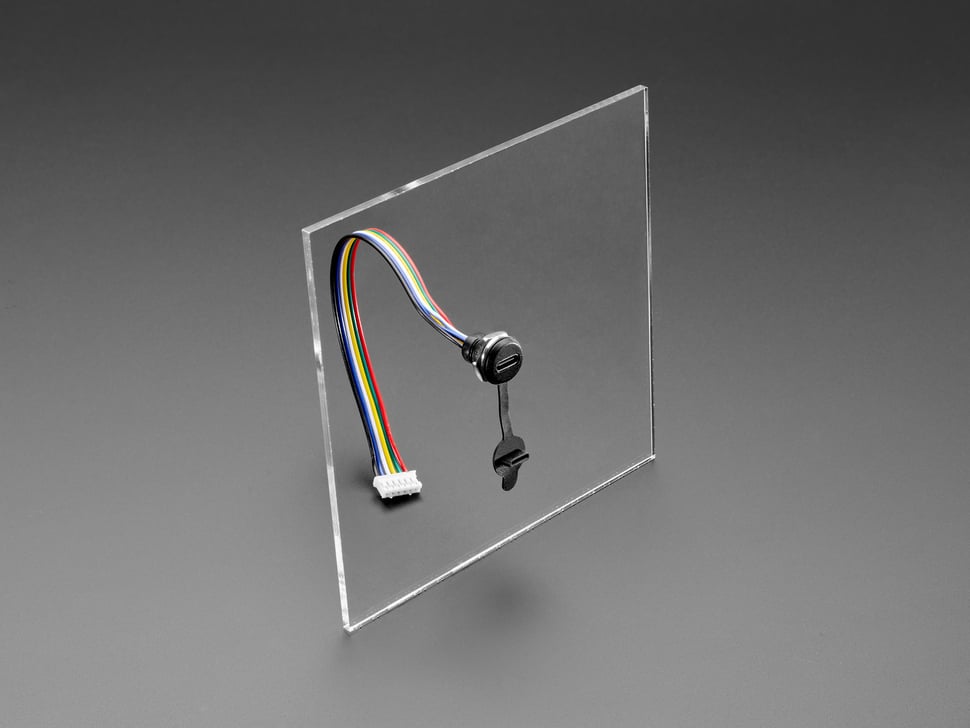

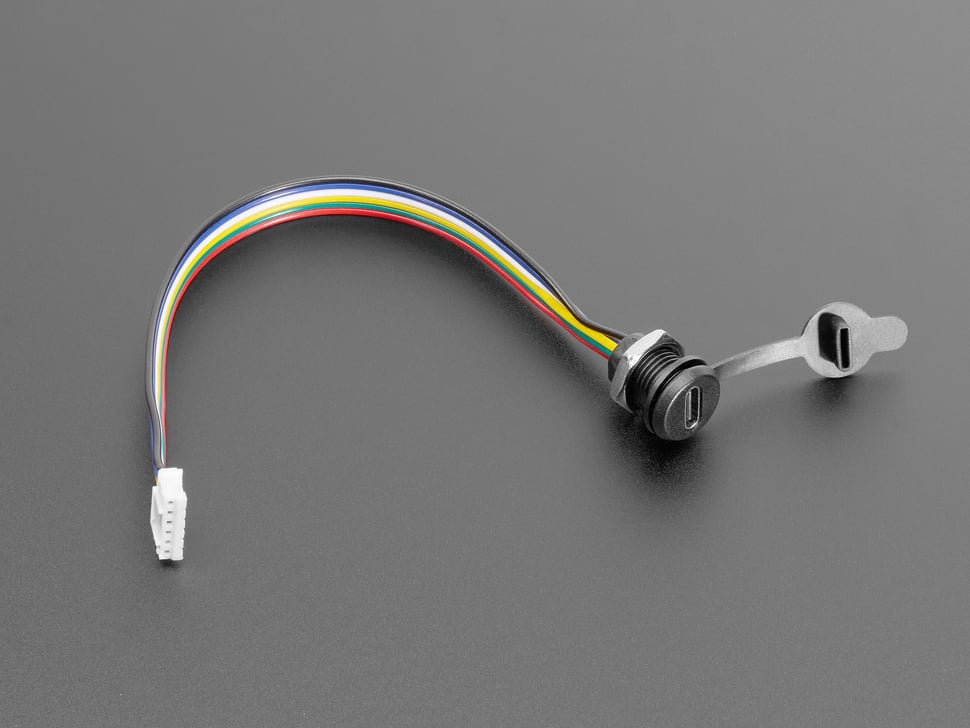

The panel mount is compact at about half an inch in diameter and fits holes from 11mm to approximately 13.5mm, making it adaptable to wood, plastic, or metal enclosures. Installation is simple: unscrew the plastic nut, insert the plug through your panel hole, and re-attach the nut. This cable includes a removable cap to protect the USB C port from dirt and grime.

Note: The CC pins are exposed but not connected internally. For standard 5V 2A, 5.1K pull-down resistors should be added to the CC pins, or connect a USB PD-capable device to negotiate higher voltages/currents. Do not leave the CC pins floating.

Features:

• Small panel-mount USB Type C connector (~14mm diameter with nut)
• Fits panel thickness up to 7mm (0.275")

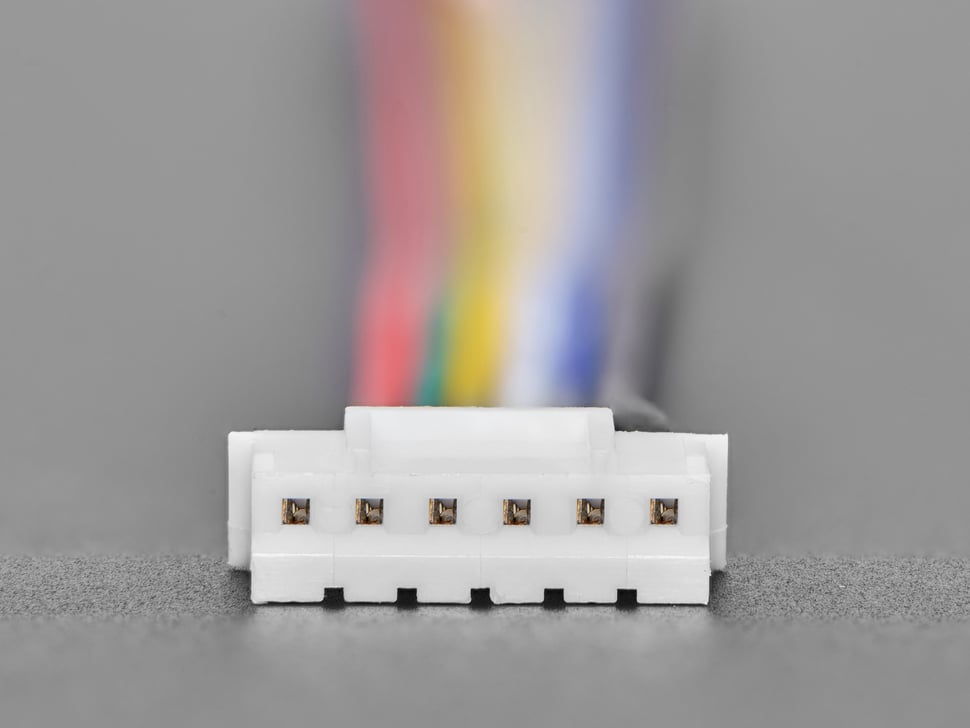

• 6-pin JST PH cable for power, ground, D+/D-, and CC1/CC2 lines

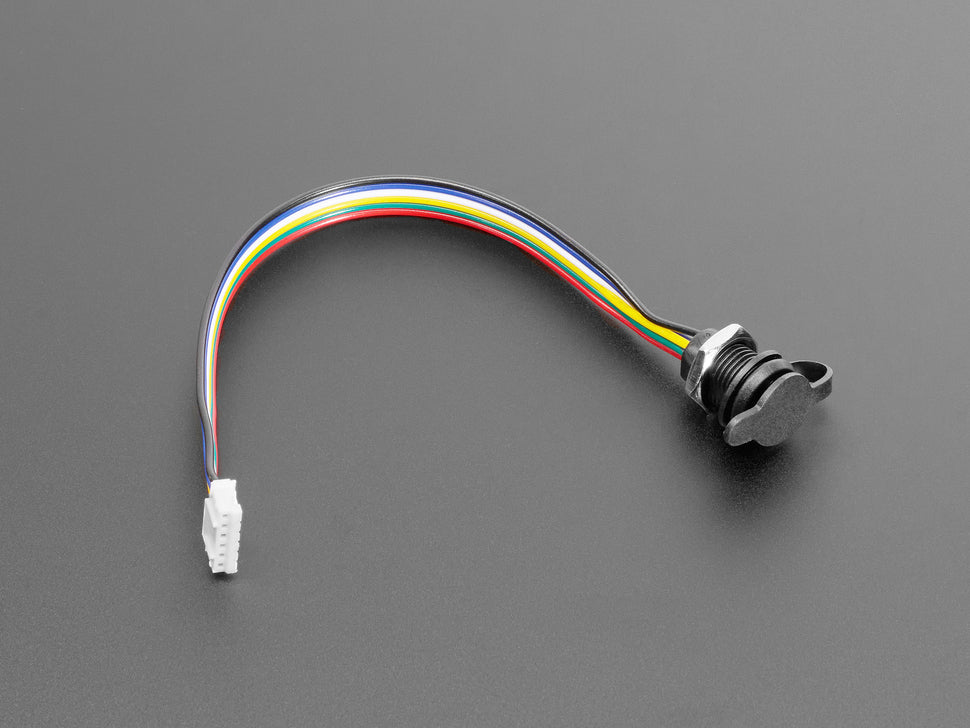

• Removable cap for port protection
• Fits holes 11mm to ~13.5mm diameter

Technical Details:

• Overall diameter (including screw nut): ~14mm
• Minimum drill diameter: 11mm
• Maximum drill diameter: up to 13.5mm
• Wiring Colors: Red: Power, Black: Ground, White: D-, Blue: D+, Green: CC1, Yellow: CC2

Includes link to datasheet.
